Description

Price

1

SHAFT, SECONDARY

5KM-17681-10-00

$257.57

2

BEARING (7X9)

93306-20327-00

$33.29

3

BEARING(2HR)

93306-00612-00

$42.56

4

COLLAR

90387-26001-00

$35.78

5

O-RING

93210-26001-00

$4.84

6

OIL SEAL

93102-42004-00

$26.25

7

DRIVE AXLE ASSY

5KM-17402-01-00

$160.52

8

WASHER PLATE 168171160000

90201-20278-00

$8.95

9

. BEARING

93310-420F2-00

$25.37

10

SPROCKET, DRIVEN

5KM-17453-00-00

Unavailable

11

WASHER PLATE 168171160000

90201-20278-00

$8.95

12

CIRCLIP (525)

93410-20038-00

$2.62

13

STOPPER

5KM-17473-00-00

$57.28

14

CIRCLIP (525)

93410-20038-00

$2.62

15

GEAR, MIDDLE DRIVE (21T)

2C6-17582-00-00

Unavailable

16

COLLAR(1UX)

90387-250R3-00

$25.98

17

GEAR, HIGH WHEEL

5KM-17223-10-00

$123.74

18

WASHER 434172160000

90209-22082-00

$7.89

19

CIRCLIP (4L0)

93440-25084-00

$3.96

20

CLUTCH, DOG

2C6-17285-00-00

Unavailable

21

GEAR, LOW WHEEL

5UG-17233-00-00

$64.94

22

WASHER, PLATE (30X)

90201-177G4-00

$6.78

23

BRG, R-B (7H4)

93306-20211-00

$22.05

24

BEARING (30X)

93306-20332-00

$32.02

25

CHAIN

94591-54034-00

$36.49

26

SHAFT

5KM-17523-10-00

$99.95

27

CIRCLIP (4L0)

93440-25084-00

$3.96

28

GEAR, MIDDLE DRIVEN

5UG-17583-00-00

$108.18

29

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$39.88

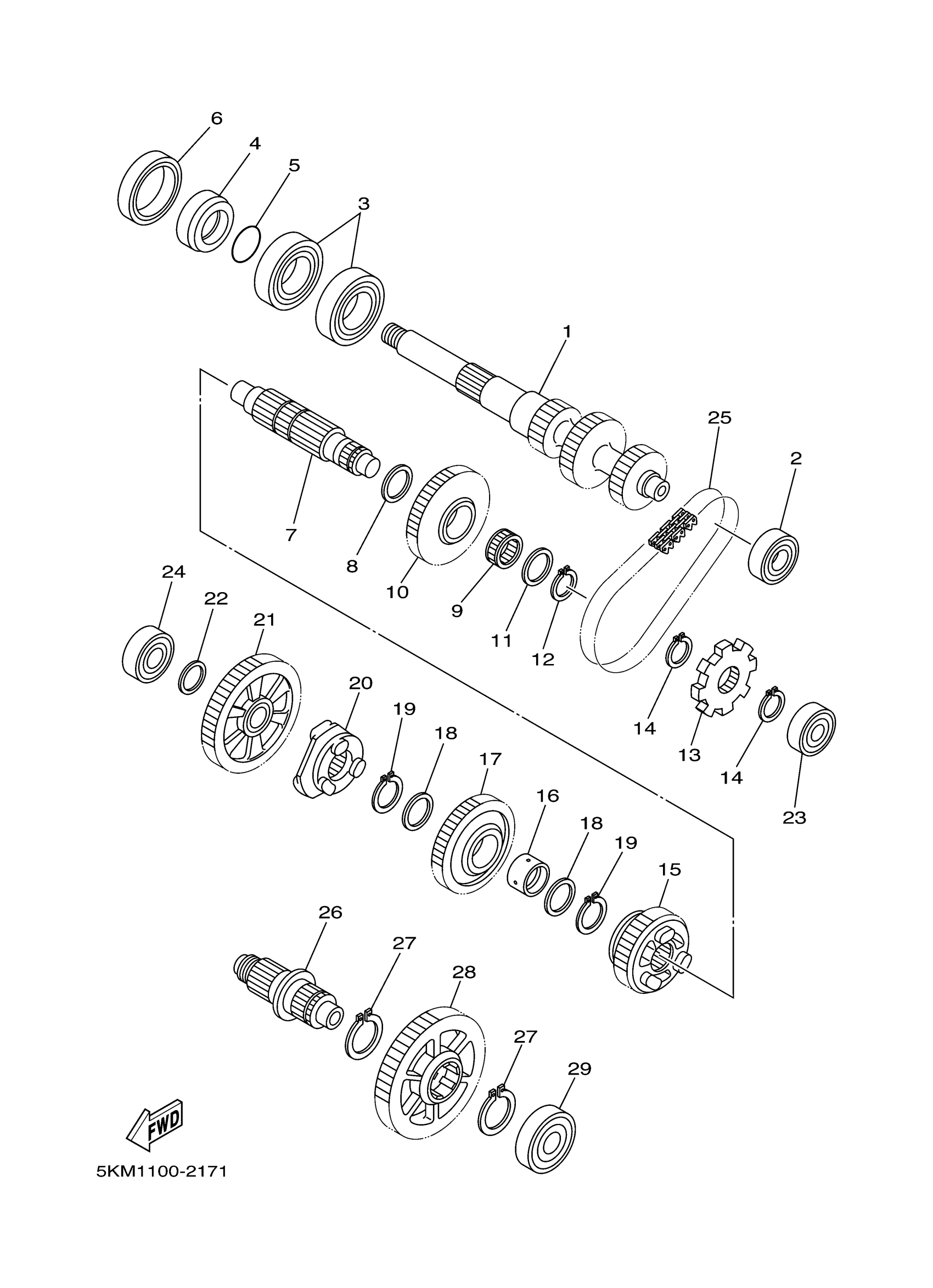

Yamaha YFM66FGHW (GRIZZLY HUNTER) 2C6T 2007 TRANSMISSION Diagram

SPROCKET, DRIVEN

GEAR, MIDDLE DRIVE (21T)

CLUTCH, DOG
