Description

Price

1

OIL PUMP ASSY

5KM-13300-00-00

$110.08

2

GASKET, PUMP COVER

5KM-13329-00-00

$6.55

3

BOLT, SMALL FLANGE

95027-06040-00

$2.48

4

STRAINER HOUSING ASSY

5KM-13410-00-00

$79.69

5

O-RING (26H)

93210-14579-00

$5.69

6

BOLT, FLANGE(4DU)

95027-06014-00

$0.74

7

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.65

8

GASKET

214-11198-01-00

$2.66

9

ELEMENT ASSY, OIL

5GH-13440-90-00

$9.69

10

BOLT, UNION

90401-20007-00

$16.14

11

SPROCKET, DRIVEN

5KM-13355-00-00

$48.30

12

CIRCLIP(24H)

99009-11400-00

$6.17

13

CHAIN

94581-94070-00

$23.75

14

PIPE, DELIVERY 1

3AJ-13161-01-00

$35.95

15

GASKET(3AJ)

90430-08204-00

$6.36

16

BOLT, UNION

90401-08004-00

$6.31

17

PIPE, DELIVERY 2

5KM-13171-00-00

$54.68

18

BOLT, UNION(1YW)

90401-14118-00

$16.11

19

GASKET 256131670000

90430-14043-00

$6.46

20

BOLT, UNION

5KM-12858-00-00

$23.28

21

GASKET 256131670000

90430-14043-00

$6.46

22

PIPE, DELIVERY 3

5KM-13181-00-00

$82.71

23

BOLT, UNION(3GM)

90401-10159-00

$8.85

24

GASKET

90430-10188-00

$5.98

25

BOLT,SOCKET

91317-06012-00

$6.17

26

RELIEF VALVE ASSY

5KM-13490-00-00

Unavailable

27

O-RING (611)

93210-10096-00

$3.11

28

PLATE

5KM-1319K-00-00

Unavailable

29

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

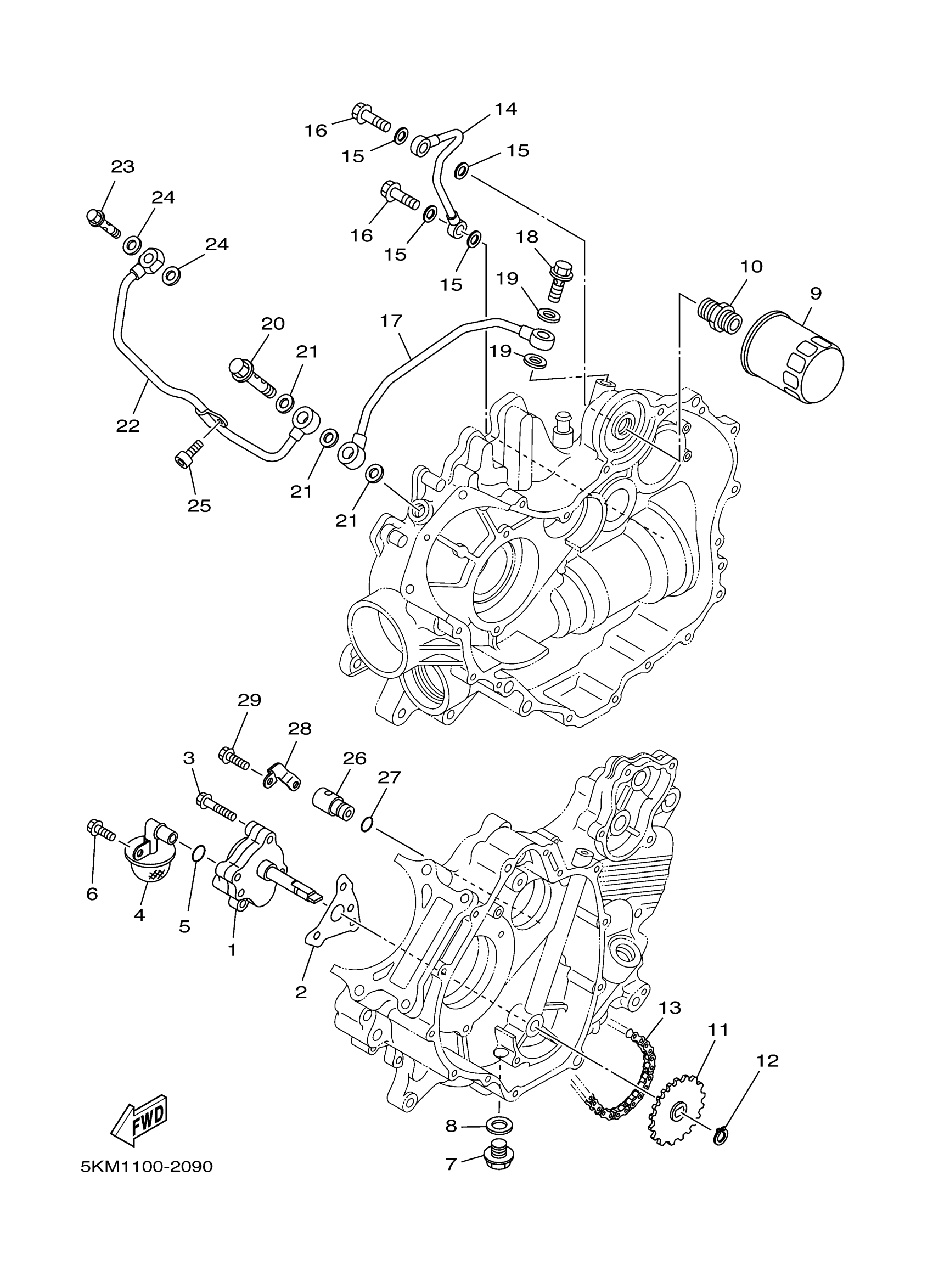

Yamaha YFM66FGHW (GRIZZLY HUNTER) 2C6T 2007 OIL PUMP Diagram

RELIEF VALVE ASSY

PLATE
