Description

Price

1

WHEEL,COMP.

5KM-F5180-19-00

Unavailable

2

TIRE (AT 25X8-12** KT131 T/L)

94108-12011-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$14.46

4

NUT

90179-10007-00

$5.38

5

CAP, WHEEL

5KM-2512A-00-00

$8.55

6

BALL JOINT SET

5KM-2510F-11-00

$472.80

7

BOOT SET (BALL JOINT)

5KM-2510G-11-00

$60.52

8

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2510H-10-00

$63.46

9

DOUBLE OFF SET JOINT

5KM-2510J-30-00

$312.75

10

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

11

SNAP RING

2HR-2512J-00-00

$5.71

12

CIRCLIP

4KB-2512H-00-00

$6.46

13

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

14

CLIP, DRIVE SHAFT

5KM-45531-10-00

$6.55

15

STEERING KNUCKLE ASSY (LEFT)

5KM-23501-11-00

$382.20

16

BEARING

93305-00602-00

$98.89

17

CIRCLIP

99009-55500-00

$7.26

18

HUB, FRONT

5KM-25111-10-00

$237.59

19

BOLT, SERRATION

90114-10014-00

$2.74

20

NUT

90179-20016-00

$11.20

21

WHEEL,COMP.

5KM-F5180-19-00

Unavailable

22

TIRE (AT 25X8-12** KT131 T/L)

94108-12011-00

Unavailable

23

VALVE, RIM(2GH)

93900-00030-00

$14.46

24

NUT

90179-10007-00

$5.38

25

CAP, WHEEL

5KM-2512A-00-00

$8.55

26

BALL JOINT SET

5KM-2510F-11-00

$472.80

27

BOOT SET (BALL JOINT)

5KM-2510G-11-00

$60.52

28

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2510H-10-00

$63.46

29

DOUBLE OFF SET JOINT

5KM-2510J-20-00

$327.91

30

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

31

SNAP RING

2HR-2512J-00-00

$5.71

32

CIRCLIP

4KB-2512H-00-00

$6.46

33

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

34

CIRCLIP(2HR)

93450-22119-00

$5.10

35

STEERING KNUCKLE ASSY (RIGHT)

5KM-23502-11-00

$385.32

36

BEARING

93305-00602-00

$98.89

37

CIRCLIP

99009-55500-00

$7.26

38

HUB, FRONT

5KM-25111-10-00

$237.59

39

BOLT, SERRATION

90114-10014-00

$2.74

40

NUT

90179-20016-00

$11.20

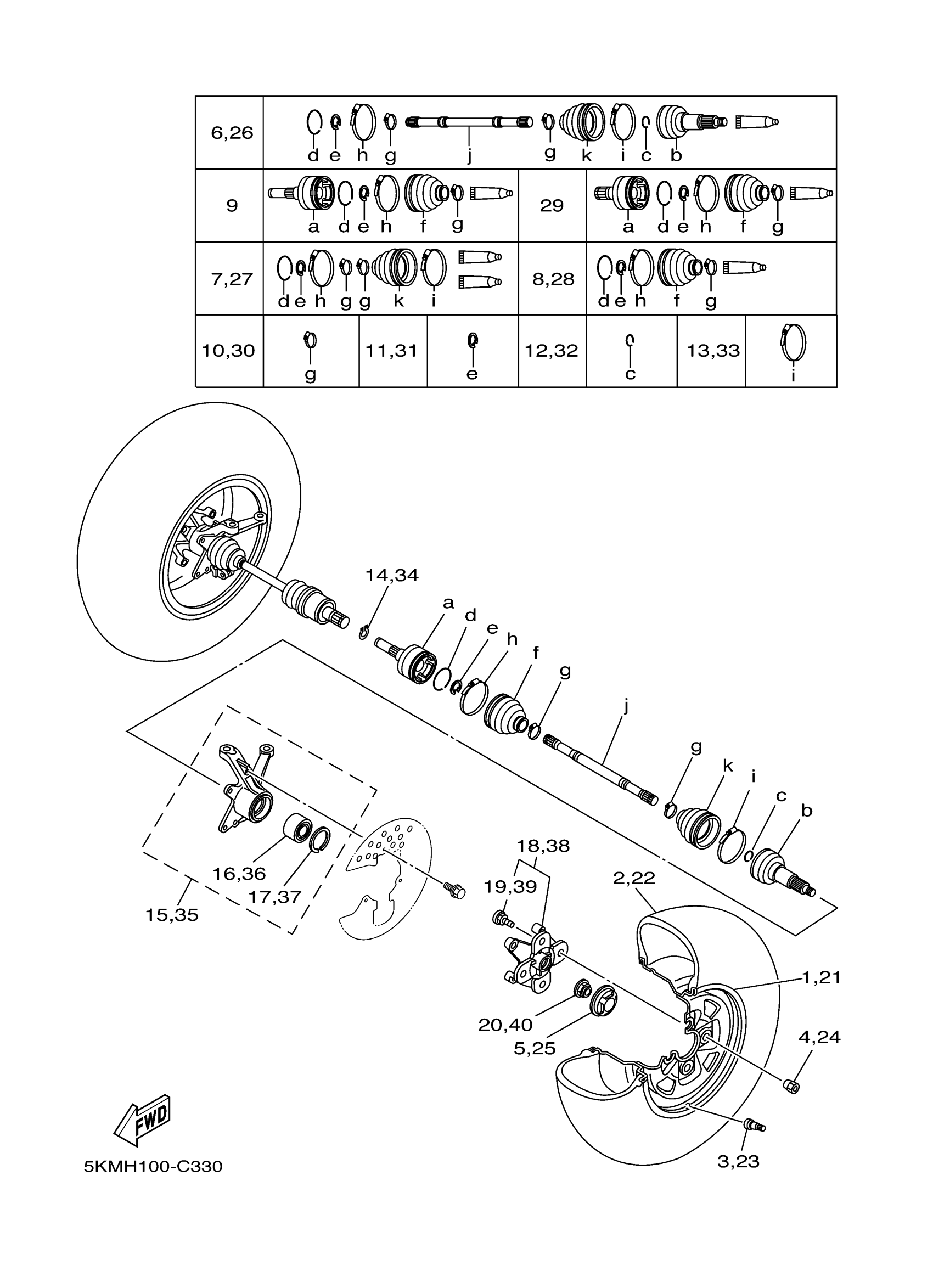

Yamaha YFM66FGHW (GRIZZLY HUNTER) 2C6T 2007 FRONT WHEEL Diagram

WHEEL,COMP.

TIRE (AT 25X8-12** KT131 T/L)

WHEEL,COMP.

TIRE (AT 25X8-12** KT131 T/L)
