Description

Price

1

REAR AXLE GEAR CASE ASSY

5KM-46101-12-00

$1,708.94

2

HOUSING, DRIVE SHAFT

5KM-46151-02-00

$262.32

3

BEARING ASSY

5KM-46102-00-00

$61.22

4

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$74.44

5

RING GEAR SET

5KM-Y4612-20-00

$491.62

6

BEARING

93306-30574-00

$64.14

7

BOSS, 1

5KM-46212-00-00

$191.65

8

OIL SEAL

93102-35009-00

$19.37

9

NUT

90179-65001-00

Unavailable

10

O-RING

93210-626A7-00

$11.00

11

WASHER (838)

90201-12191-00

$6.11

12

NUT (4X7)

90179-12325-00

$5.78

13

HOUSING, PINION BEARING

5KM-46144-01-00

$123.35

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

15

WASHER, THRUST

24W-46118-00-12

$15.98

15

WASHER, THRUST

24W-46118-00-14

$14.58

15

WASHER, THRUST

24W-46118-00-16

$14.71

15

WASHER, THRUST

24W-46118-00-18

$14.71

15

WASHER, THRUST

24W-46118-00-20

$13.43

16

PLUG, STRAIGHT SCREW(4GY)

90340-20143-00

$34.68

17

O-RING (646)

93210-19123-00

$6.91

18

BOLT

97017-08035-00

$5.75

19

WASHER(6TA)

92907-08600-00

$2.52

20

BOLT, HEXAGON

97017-08025-00

$7.46

21

WASHER(6TA)

92907-08600-00

$2.52

22

BREATHER

5UG-15371-00-00

$33.79

23

HOUSING, BEARING

5KM-46152-00-00

$88.75

24

STOPPER, RING GEAR

2HR-46156-00-00

$23.00

25

WASHER, PLATE 3411117500

90201-08087-00

$3.13

26

NUT, FLANGE(JN5)

95707-08500-00

$1.49

27

BOLT, SMALL FLANGE

95027-08012-00

$6.89

28

WASHER, PLATE 3411117500

90201-08087-00

$3.13

29

OIL SEAL

93102-65004-00

$15.43

30

BEARING

93316-01701-00

$157.22

31

O-RING(59V)

93211-54698-00

$17.71

32

SHIM, RING GEAR

22U-46117-00-25

$3.63

32

SHIM, RING GEAR

22U-46117-00-30

$3.88

32

SHIM, RING GEAR

22U-46117-00-40

$3.63

33

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

34

PLUG, STRAIGHT SCREW

90340-14002-00

$16.95

35

GASKET

214-11198-01-00

$2.66

36

SPRING, COMPRESSION

90501-18002-00

$3.86

37

SHAFT, DRIVE

5KM-46172-00-00

$174.23

38

CIRCLIP(1EY)

99009-19400-00

$6.17

39

COUPLING

5KM-46126-00-00

$57.01

40

CIRCLIP (537)

93410-22039-00

$6.17

41

DAMPER

5KM-46559-00-00

$6.72

42

SEAL 2

5KM-46137-00-00

$14.62

43

SEAL 1

5KM-46136-00-00

$7.51

44

HOSE (L1050)

90445-072G8-00

$23.46

45

CLIP (1J7)

90467-07029-00

$1.92

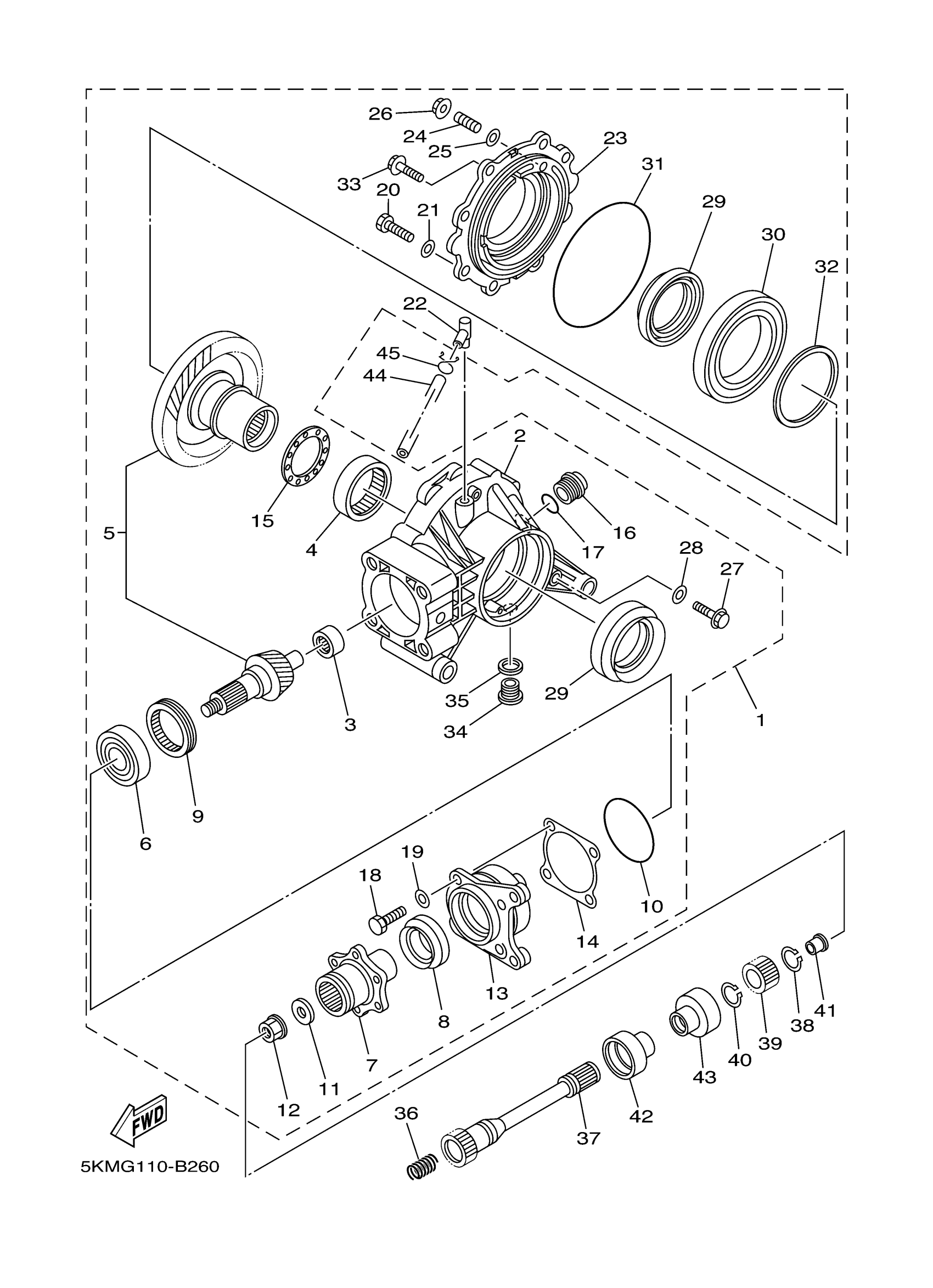

Yamaha YFM66FGHW (GRIZZLY HUNTER) 2C6T 2007 DRIVE SHAFT Diagram
