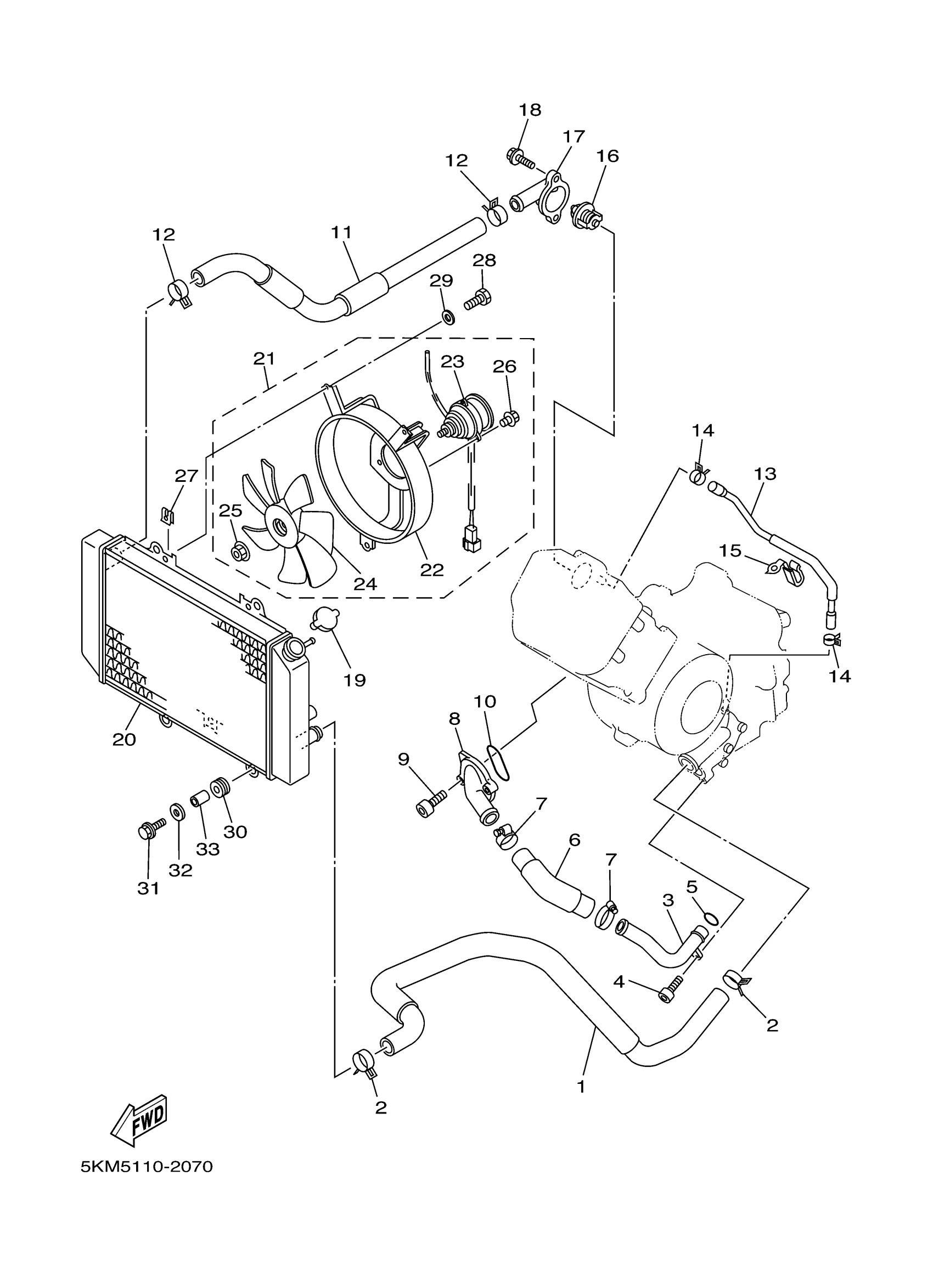

Yamaha YFM66FABGGV (GRIZZLY 660 HUNTER_HARDWOODS) 2C690 2006 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 1

5KM-12576-00-00

$113.25

2

CLIP

90467-26189-00

$5.86

3

PIPE 1

5KM-12481-00-00

$49.28

4

BOLT,SOCKET

91317-06010-00

$6.91

5

O-RING

93210-21190-00

$5.59

6

HOSE 2

5KM-12577-00-00

$32.93

7

HOSE CLAMP ASSY

90450-32015-00

$15.23

8

JOINT 1

5KM-12469-00-00

$49.09

9

BOLT,SOCKET

91317-06020-00

$2.11

10

O-RING

93210-33006-00

$4.85

11

HOSE 3

5KM-12578-00-00

$59.39

12

CLIP

90467-26189-00

$5.86

13

HOSE 4

5KM-12579-00-00

Unavailable

14

CLIP

90467-10038-00

$1.51

15

CLAMP

90462-08008-00

$8.43

16

THERMOSTAT

5KM-12411-02-00

Unavailable

17

COVER, THERMOSTAT

5KM-12413-01-00

Unavailable

18

. BOLT, FLANGE

95027-06020-00

$1.00

19

CAP, RADIATOR

4FL-12462-00-00

$55.82

20

RADIATOR ASSY

5KM-12461-00-00

$651.09

21

BLOWER ASSY

5KM-12405-00-00

$645.99

22

ARI SHROUD ASSY

5KM-12620-00-00

Unavailable

23

. MOTOR ASSY

5KM-12630-00-00

Unavailable

24

FAN ASSY

5KM-12611-00-00

$73.17

25

NUT, W/ WASHER

95707-05600-00

Unavailable

26

BOLT

5GH-12647-00-00

Unavailable

27

PLATE

1AA-12535-00-00

$12.27

28

BOLT(3JP)

97017-06010-00

$2.62

29

WASHER(6TA)

92907-06600-00

$0.78

30

GROMMET(2GH)

90480-12475-00

$6.68

31

BOLT, FLANGE

95817-06020-00

$2.69

32

WASHER

90209-06012-00

$4.71

33

COLLAR

90387-06113-00

$10.51
