Description

Price

1

FRONT UPPER ARM COMP. (LEFT)

5KM-23540-10-00

$210.66

2

BUSH

1HP-F3526-00-00

$21.28

3

FRONT UPPER ARM COMP. (RIGHT)

5KM-23550-10-00

$224.13

4

BUSH

1HP-F3526-00-00

$21.28

5

NUT, CASTLE

90171-10001-00

$2.85

6

PIN, COTTER

91490-20025-00

$1.31

7

FRONT LOWER ARM COMP. (LEFT)

5KM-23570-10-00

$278.82

8

BALL JOINT 2

5KM-23579-00-00

$84.73

9

CIRCLIP(4A6)

99009-30400-00

$6.55

10

BUSH

1HP-F3526-00-00

$21.28

11

FRONT LOWER ARM COMP. (RIGHT)

5KM-23580-10-00

$278.82

12

BALL JOINT 2

5KM-23579-00-00

$84.73

13

CIRCLIP(4A6)

99009-30400-00

$6.55

14

BUSH

1HP-F3526-00-00

$21.28

15

BOLT, FLANGE (2XJ)

90105-10549-00

$6.32

16

NUT(6TD)

95337-10600-00

$6.98

17

WASHER (7A9)

90201-100F7-00

$6.38

18

BOLT, WASHER BASED (39E)

90105-10286-00

$6.03

19

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

20

SHOCK ABSORBER ASSY

5KM-23350-20-00

$325.25

21

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

22

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$6.02

23

COVER, LOWER 1

5KM-23123-00-00

$14.25

24

COVER, LOWER 2

5KM-23133-00-00

$17.72

25

BOLT, FLANGE

95817-06012-00

$1.49

26

NUT, SPRING(4ES)

90183-06069-00

$5.93

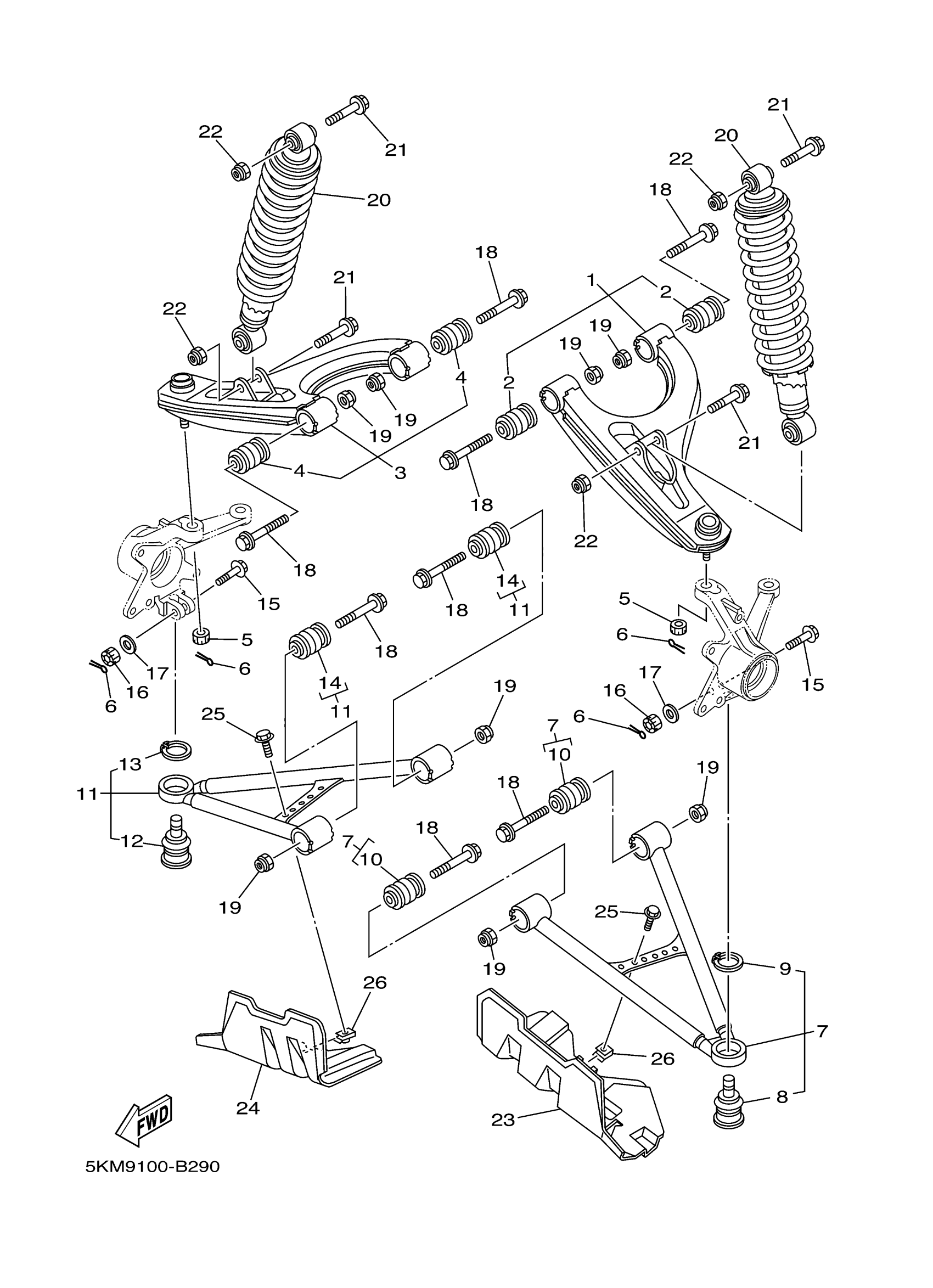

Yamaha YFM66FABGGV (GRIZZLY 660 HUNTER_HARDWOODS) 2C690 2006 FRONT SUSPENSION WHEEL Diagram
