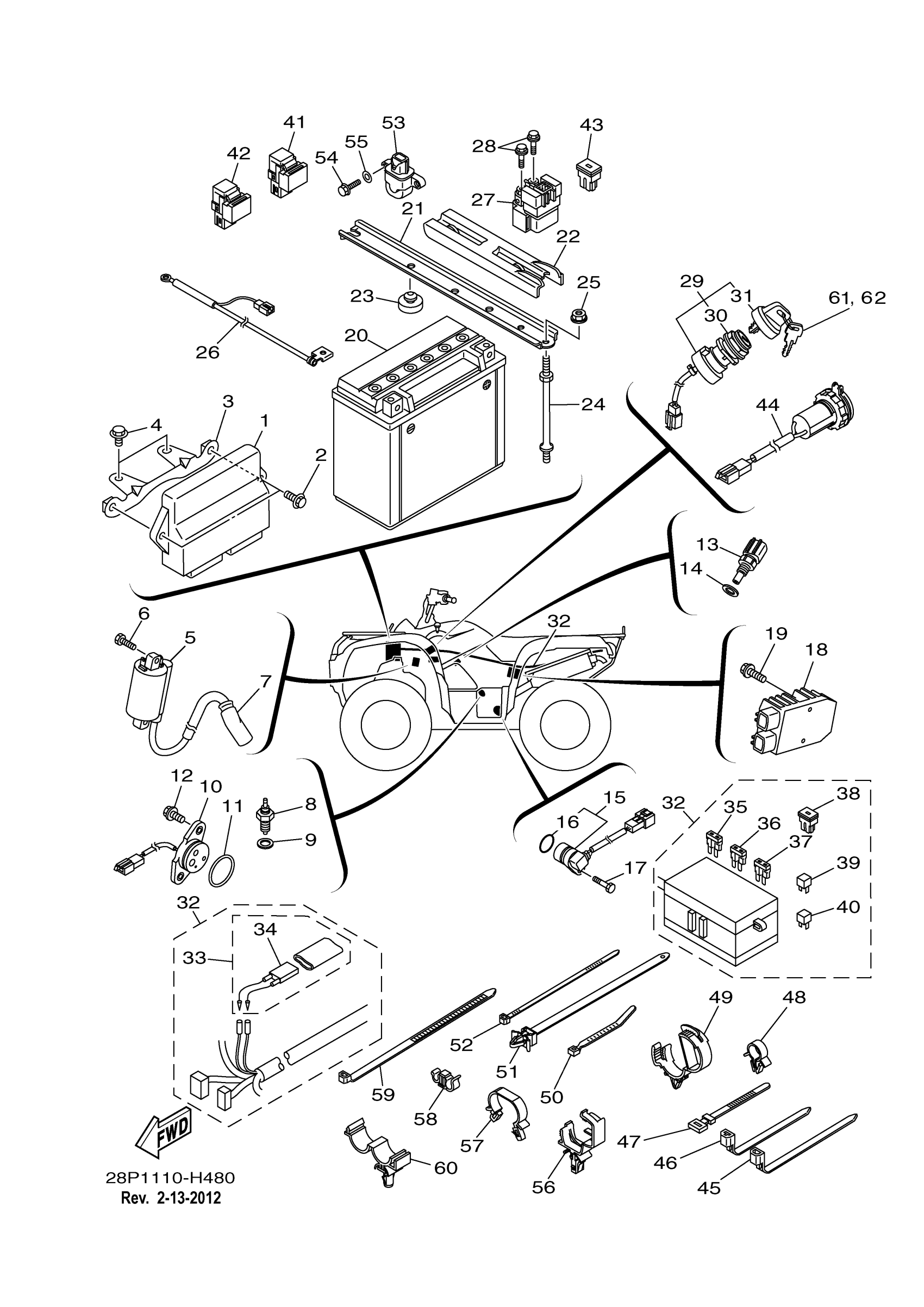

Yamaha YFM5FGYGR (GRIZZLY 550 FI 4WD) 28P10 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

28P-8591A-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$1.49

3

BRKT., CONTROL UNIT

28P-2830X-00-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.49

5

IGNITION COIL ASSY

1D7-H2310-05-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.91

7

PLUG CAP ASSY

28P-82370-00-00

$57.01

8

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

9

GASKET (1KH,1.0T)

90430-10148-00

$4.74

10

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$68.10

11

O-RING (371)

93210-29196-00

$6.45

12

BOLT, WITH WASHER

90119-06137-00

$6.25

13

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

14

GASKET(2GH)

90430-12202-00

$7.09

15

SENSOR, SPEED

3B4-83755-01-00

$115.46

16

O-RING

4D9-81168-00-00

$3.71

17

BOLT,SOCKET HEAD

91314-06020-00

$2.05

18

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

19

BOLT, FLANGE

95817-06020-00

$2.69

20

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

21

BRACKET, BATTERY

1HP-H2128-00-00

$6.11

22

COVER, BATTERY

3B4-82129-00-00

$6.46

23

PAD, SEAT

22W-24741-00-00

$7.72

24

SCREW, FITTING

3B4-82133-10-00

$24.57

25

NUT, FLANGE

95702-06500-00

$1.98

26

WIRE, MINUS LEAD

28P-82116-01-00

$34.34

27

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

$76.02

28

BOLT, FLANGE

95022-06008-00

$6.26

29

MAIN SWITCH ASSY

28P-82510-02-00

$60.93

30

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

31

CAP, KEY

3HN-82579-00-00

$12.27

32

WIRE HARNESS ASSY

28P-82590-00-00

$961.66

33

CIRCUIT BREAKER ASSY

5GT-82180-00-00

$27.83

34

THERMO SWITCH ASSY

4GB-82560-00-00

$33.54

35

FUSE (15A)

67F-82151-50-00

$3.71

36

FUSE

5JJ-82151-20-00

$6.42

37

FUSE (5A)

67F-82151-20-00

$6.00

38

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

39

DIODE ASSY

4WA-81980-00-00

$25.93

40

DIODE ASSY

5VG-81980-00-00

$15.91

41

RELAY ASSY

5DM-81950-01-00

$24.72

42

RELAY ASSY (8FP-01)

8FP-81950-01-00

$33.20

43

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

44

TERMINAL COMP.

1HP-H254B-10-00

$15.91

45

CLAMP(4FM)

90464-15195-00

$2.77

46

CLAMP(4FM)

90464-15195-00

$2.77

47

BAND, SWITCH CORD

437-83936-01-00

$4.63

48

CLAMP(3XV)

90464-15157-00

$6.17

49

CLAMP(4AP)

90464-20181-00

$2.80

50

CLAMP

90465-10098-00

$2.24

51

CLAMP(2TV)

90464-10112-00

$6.18

52

CLAMP

5Y9-12491-00-00

$6.38

53

LEAN ANGLE SENSOR

3B4-82576-00-00

$88.69

54

BOLT(6A1)

97095-05016-00

$1.46

55

WASHER, PLAIN (646)

92990-05600-00

Unavailable

56

CLAMP(4SV)

90464-20237-00

$1.78

57

CLAMP(4NK)

90464-24230-00

$5.62

58

CLAMP

90464-09013-00

$4.15

59

BAND, SWITCH CORD

25G-83936-01-00

$4.12

60

CLAMP

90464-16012-00

$5.43

61

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

62

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
