Description

Price

1

CLUTCH HOUSING SET

99999-04070-00

$406.25

2

CLUTCH CARRIER ASSY

3B4-16620-00-00

$376.18

3

HOUSING, BEARING 1

3B4-15163-00-00

$97.02

4

BEARING

93316-01003-00

$91.41

5

OIL SEAL

93102-35004-00

$19.11

6

CIRCLIP (70R)

93420-80066-00

$11.82

7

CIRCLIP

93410-46079-00

$5.42

8

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$31.48

9

BEARING, ONE WAY

4SH-16664-00-00

$123.47

10

NUT

90179-22021-00

$22.37

11

GASKET, COVER PINION 2

3B4-15463-00-00

$11.12

12

PIN, DOWEL(2VG)

99530-10116-00

$3.37

13

BOLT, FLANGE

95022-06030-00

$1.40

14

BOLT, FLANGE

95022-06040-00

$2.93

15

PRIMARY SLIDING SHEAVE COMP.

3B4-17606-00-00

$251.05

16

OIL SEAL

93101-35001-00

$18.97

17

WEIGHT

4WV-17632-00-00

$15.04

18

CAM

3B4-17623-02-00

$44.08

19

SLIDER

16B-17653-00-00

$8.93

20

COLLAR

3B4-17645-00-00

$84.73

21

O-RING

93211-594A4-00

$22.96

22

STOPPER

4WV-17639-10-00

$28.45

23

SCREW, PAN HEAD

90157-04006-00

$4.15

24

WASHER, PLATE(4HC)

90201-047R9-00

$2.38

25

V-BELT

28P-17641-00-00

$105.33

26

SHEAVE, PRIMARY FIXED

3B4-17611-00-00

$149.68

27

WASHER, PLATE

90201-190T7-00

$7.51

28

NUT

90179-16005-00

$11.06

29

SECONDARY FIXED SHEAVE COMP.

3B4-17660-10-00

$453.00

30

SECONDARY SLIDING SHEAVE

3B4-17670-10-00

$335.83

31

OIL SEAL

93104-41119-00

$14.18

32

O-RING (10L)

93210-44545-00

$11.47

33

PIN, GUIDE

4CW-17664-00-00

$6.72

34

SPRING, COMPRESSION

90501-65001-00

$45.95

35

SEAT, SECONDARY SPRING

4WV-17684-00-00

$47.77

36

SEAT, SPRING

4WV-17644-00-00

$25.93

37

NUT (5G3)

90170-36279-00

$13.51

38

NUT

90179-16005-00

$11.06

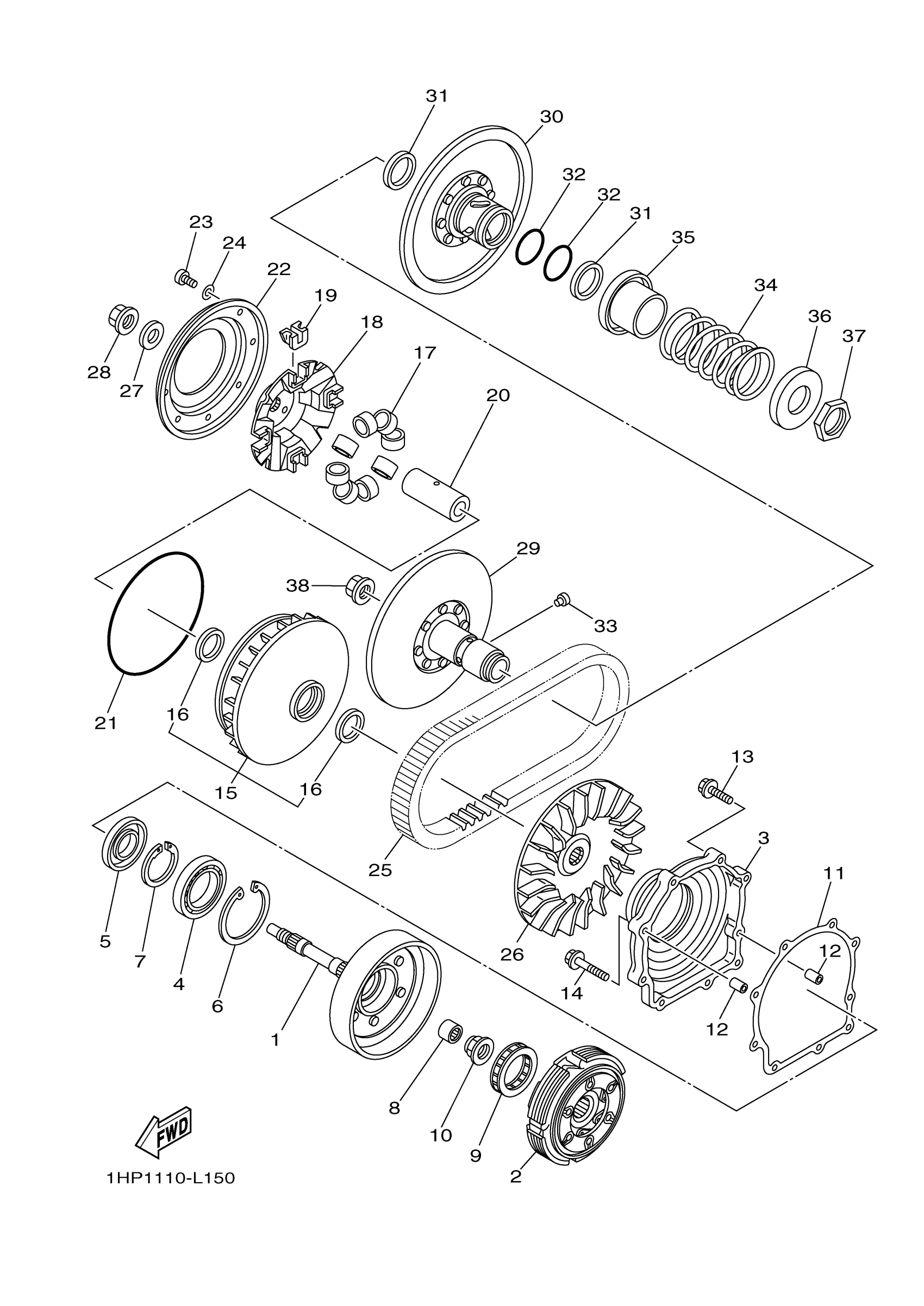

Yamaha YFM5FGBGR (GRIZZLY 550 4WD) 1NP1 2012 CLUTCH Diagram
