Description

Price

1

CRANKCASE ASSY

2FJ-15100-01-00

$408.51

2

PIPE, BREATHER 2

59V-11167-00-00

$10.31

3

PIN, DOWEL

99530-12016-00

$4.12

4

PIPE, BREATHER 1

2D3-11166-00-00

Unavailable

5

CLIP(3YX)

90467-13133-00

$5.13

6

SCREW, PAN

98507-06075-00

$5.60

7

SCREW, PAN

98507-06060-00

$5.60

8

SCREW, PAN

98507-06045-00

$2.63

9

GASKET 256113960000

90430-06014-00

$7.23

10

PIN, DOWEL

99530-08012-00

$6.62

11

BOLT, STUD

90116-06042-00

$3.25

12

O-RING (11M)

93210-07540-00

$5.77

13

PLATE, BEARING COVER

22F-15383-01-00

Unavailable

14

SCREW, PAN

98517-06012-00

$3.14

15

BOLT, FLANGE

95817-06025-00

$1.46

16

BOLT, FLANGE

95817-06016-00

$1.49

17

GASKET (4V2)

90430-06166-00

$3.45

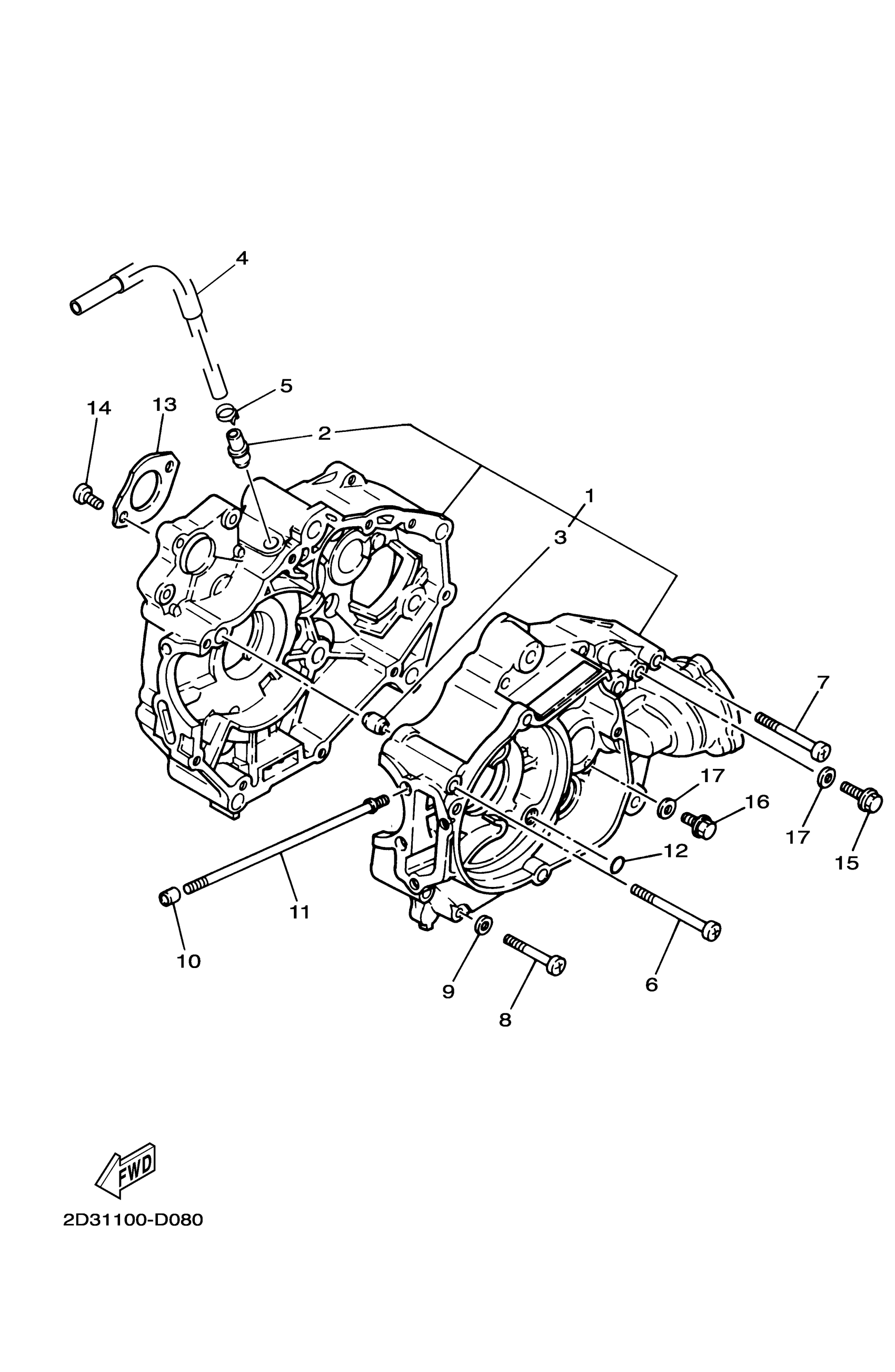

Yamaha YFM50RW (RAPTOR 50) 5YFA 2007 CRANKCASE Diagram
