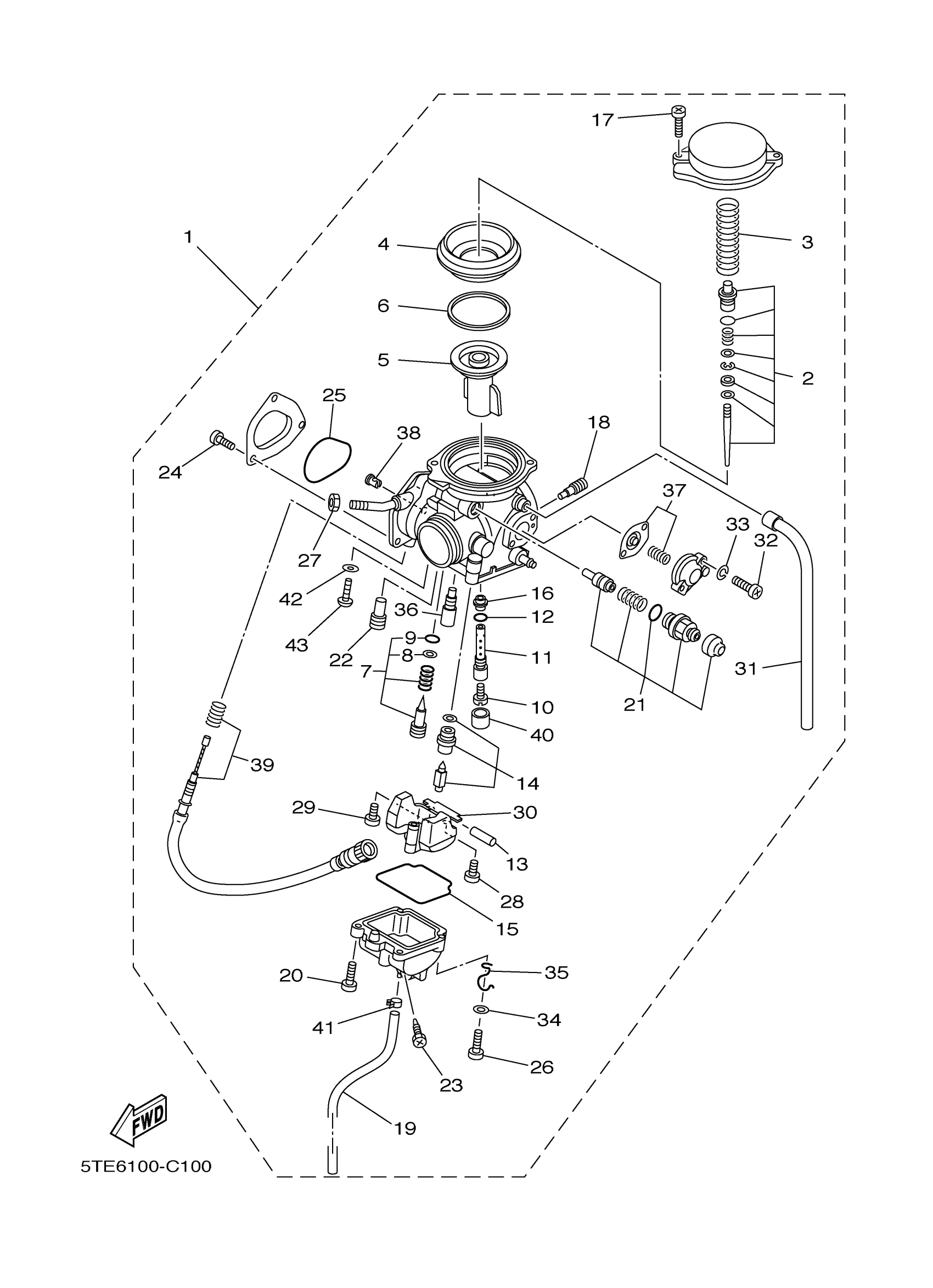

Yamaha YFM4FGW (GRIZZLY 400) 1P19 2007 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5TE-E4101-10-00

Unavailable

2

NEEDLE SET

5ND-1490J-10-00

$39.34

3

SPRING, DIAPHRAGM

5DM-14933-00-00

$8.70

4

DIAPHRAGM ASSY

5GH-14940-10-00

$55.04

5

VALVE, THROTTLE 1

5DM-14112-00-00

$76.02

6

RING

5GH-14918-10-00

$5.68

7

PILOT SCREW SET

5ND-14105-00-00

$14.77

8

WASHER, PILOT SCREW

3H1-14962-00-00

$6.43

9

O-RING, PILOT SCREW

3H1-14147-00-00

$7.51

10

JET,MAIN #132.5

3G2-1423A-77-00

$12.17

11

HOLDER

5GH-14261-00-00

$35.60

12

O-RING

583-14561-00-00

$4.74

13

PIN, FLOAT

127-14186-00-00

$6.23

14

NEEDLE VALVE SET

5UH-14107-20-00

$46.15

15

O-RING

5DM-14561-00-00

$14.82

16

NOZZLE, MAIN

5DM-14141-40-00

$30.88

17

SCREW

4KM-14216-00-00

$6.43

18

JET, MAIN (# 80)

1HX-14231-16-00

$9.97

19

PIPE

4KB-14193-20-00

$39.88

20

SCREW, PAN HEAD (E56)

98580-04010-00

$6.17

21

STARTER SET

5ND-1410A-00-00

$55.43

22

JET, MAIN (# 75)

3G2-14231-15-00

$11.05

23

PLUG, DRAIN

3FV-14191-00-00

$21.37

24

SCREW, PAN HEAD

9850L-04006-00

Unavailable

25

O-RING

5FU-E4147-00-00

$14.25

26

SCREW, PAN HEAD(N15)

98507-04014-00

$1.32

27

NUT, CABLE ADJUSTING

522-14161-00-00

$8.49

28

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.45

29

SCREW

1FN-14565-00-00

$6.43

30

FLOAT

5DM-14985-00-00

$64.14

31

PIPE

5GH-14197-00-00

$39.71

32

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.78

33

YBS67-4 WASHER, SPRING

92990-04100-00

$0.60

34

WASHER(JF2)

92907-04600-00

$1.23

35

CLIP

5GH-14937-00-00

$26.85

36

JET, PILOT (# 17.5)

4KM-14142-17-00

$8.54

37

DIAPHRAGM SET 5

5ND-1490H-00-00

$37.18

38

GUIDE, CABLE

5FU-E4155-00-00

$8.91

39

THROTTLE SCREW SET

5GH-14103-01-00

$101.03

40

RING

5GH-14918-00-00

$16.58

41

CLIP

4XE-14937-00-00

$13.68

42

WASHER

256-14956-01-00

$6.46

43

SCREW

3DM-14216-00-00

$6.66
