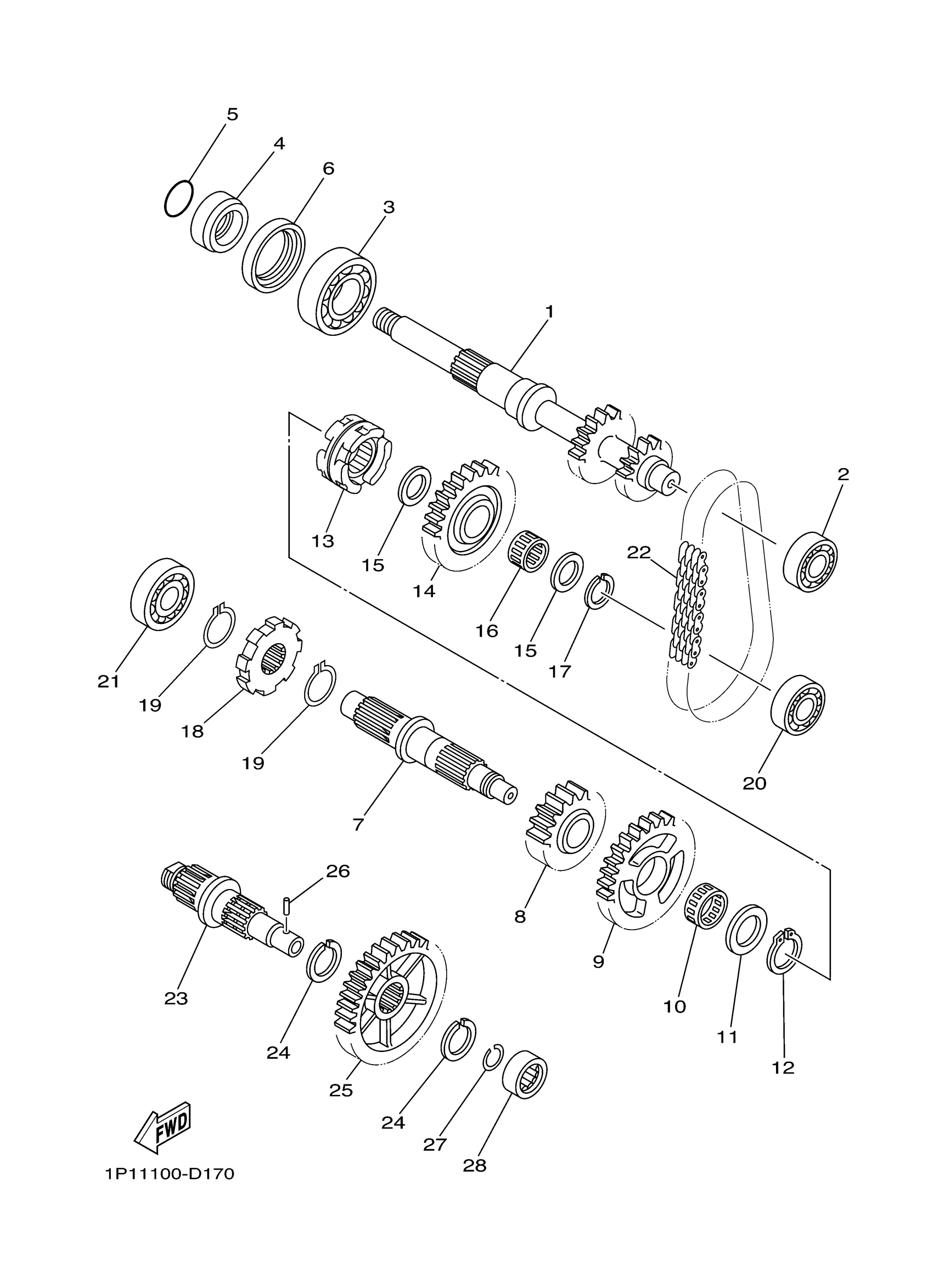

Yamaha YFM4FGHW (GRIZZLY 400 HUNTER) 1P1C 2007 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5TE-17681-00-00

Unavailable

2

BEARING (7K2)

93306-00423-00

$30.87

3

BEARING (5X5)

93306-20627-00

$66.08

4

COLLAR

90387-26001-00

$35.78

5

O-RING

93210-26001-00

$4.84

6

OIL SEAL

93102-42004-00

$26.25

7

DRIVE AXLE ASSY

1P1-17402-00-00

Unavailable

8

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$108.80

9

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$152.08

10

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$28.79

11

WASHER, PLATE(8BB)

90201-250R9-00

$5.46

12

CIRCLIP (4L0)

93440-25084-00

$3.96

13

CLUTCH, DOG

1P1-17285-00-00

$78.17

14

SPROCKET, DRIVEN

5GH-17453-10-00

$83.86

15

WASHER PLATE 168171160000

90201-20278-00

$8.95

16

. BEARING

93310-420F2-00

$25.37

17

CIRCLIP (525)

93410-20038-00

$2.62

18

STOPPER

5GH-17473-00-00

$67.45

19

CIRCLIP (4L0)

93440-25084-00

$3.96

20

BEARING

93306-30212-00

$33.35

21

BEARING(3LD)

93306-20464-00

$34.40

22

CHAIN

94591-54038-00

$45.00

23

SHAFT

5GT-17523-00-00

Unavailable

24

CIRCLIP (4L0)

93440-25084-00

$3.96

25

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

$141.37

26

PIN, DOWEL(3HN)

93603-14240-00

$1.57

27

CIRCLIP(59V)

93440-14155-00

$0.57

28

BEARING

93311-42077-00

$47.12
