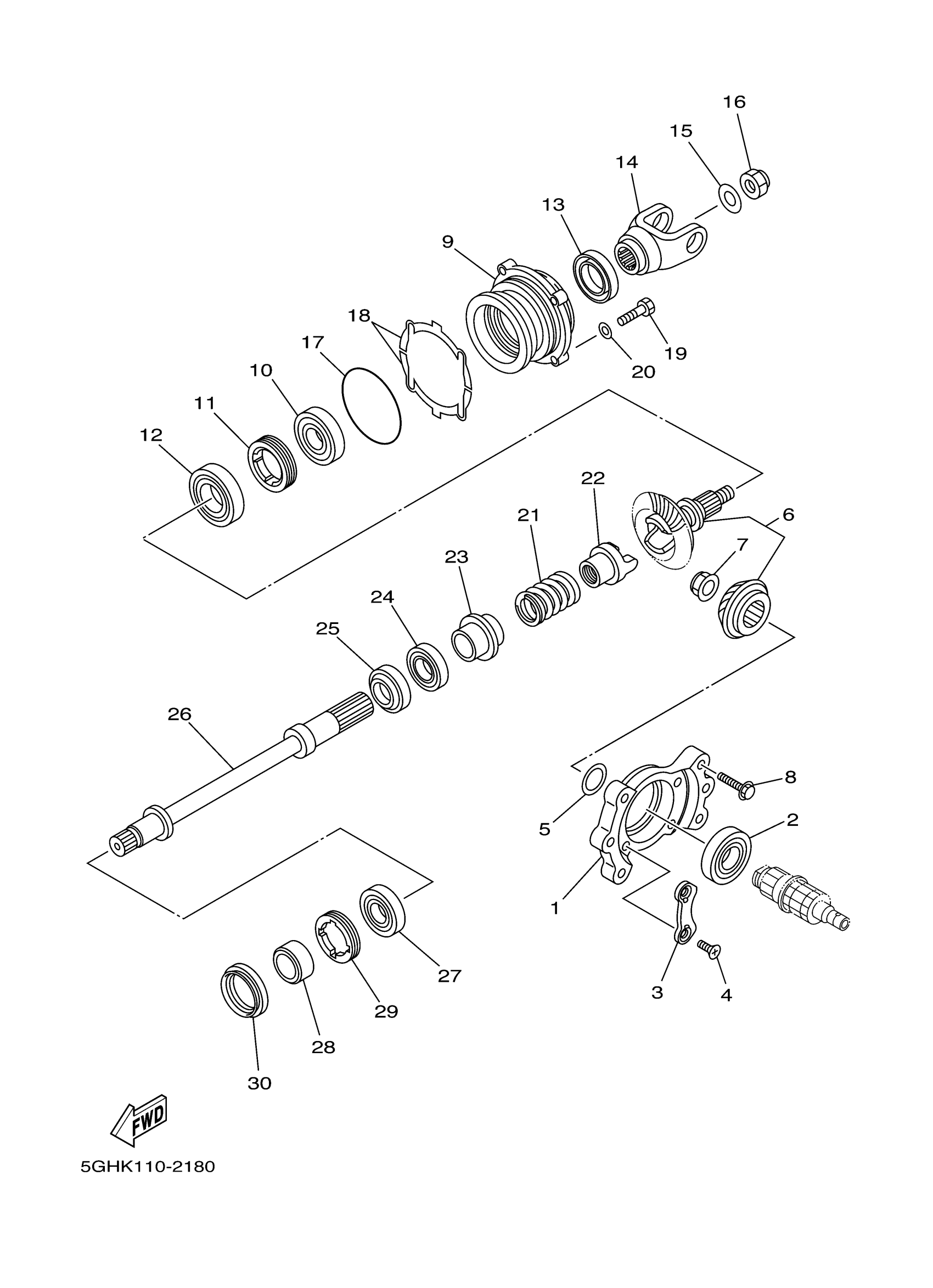

Yamaha YFM4FAS (KODIAK 400 4X4) 5TE6 2004 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

5GH-17521-00-00

$91.31

2

BEARING (5X5)

93306-20627-00

$66.08

3

PLATE, BEARING COVER

11H-15383-02-00

$11.03

4

SCREW

90149-08013-00

$6.25

5

SHIM, PINION

52G-17531-01-00

$2.45

5

SHIM, PINION

52G-17531-11-00

$2.45

5

SHIM, PINION

52G-17531-21-00

$6.43

5

SHIM, PINION

52G-17531-31-00

$6.43

5

SHIM, PINION

52G-17531-41-00

$6.43

5

SHIM, PINION

52G-17531-51-00

$6.43

6

PINION SET

4WV-17530-00-00

$355.83

7

NUT

90179-22015-00

$24.97

8

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

9

HOUSING, BEARING

5GH-17551-00-00

$191.57

10

BEARING(3RR)

93306-30560-00

$71.07

11

NUT(59V)

90179-65305-00

$37.15

12

BEARING (8U9)

93306-20712-00

$69.76

13

OIL SEAL (4H7)

93101-35097-00

$17.78

14

YOKE, JOINT

5GH-17556-01-00

Unavailable

15

WASHER, PLATE (1J7)

90201-14633-00

$5.25

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

17

O-RING (14X)

93210-78544-00

$10.65

18

SHIM, PINION (0.1T)

5GH-17531-00-00

$6.43

18

SHIM, PINION (0.15T)

5GH-17531-10-00

$6.43

18

SHIM, PINION (0.2T)

5GH-17531-20-00

$6.40

18

SHIM, PINION (0.3T)

5GH-17531-30-00

$5.93

18

SHIM, PINION (0.4T)

5GH-17531-40-00

$3.37

18

SHIM, PINION (0.5T)

5GH-17531-50-00

$6.43

18

SHIM, PINION (0.6T)

5GH-17531-60-00

$6.40

19

BOLT, HEXAGON

97017-08030-00

$6.85

20

WASHER(6TA)

92907-08600-00

$2.52

21

SPRING, COMPRESSION

90501-650L5-00

$22.52

22

CAM, DRIVEN

4VR-17527-00-00

$69.72

23

COLLAR, GEAR

5GH-17585-00-00

Unavailable

24

BEARING(2HR)

93306-00612-00

$42.56

25

OIL SEAL(76K)

93102-30339-00

$12.66

26

SHAFT, 1

5GH-1761A-00-00

Unavailable

27

BEARING(83R)

93306-20582-00

$48.01

28

COLLAR(1WG)

90387-252R2-00

$18.66

29

NUT(4KB)

90179-55660-00

$49.43

30

OIL SEAL(2HR)

93102-35380-00

$17.80
