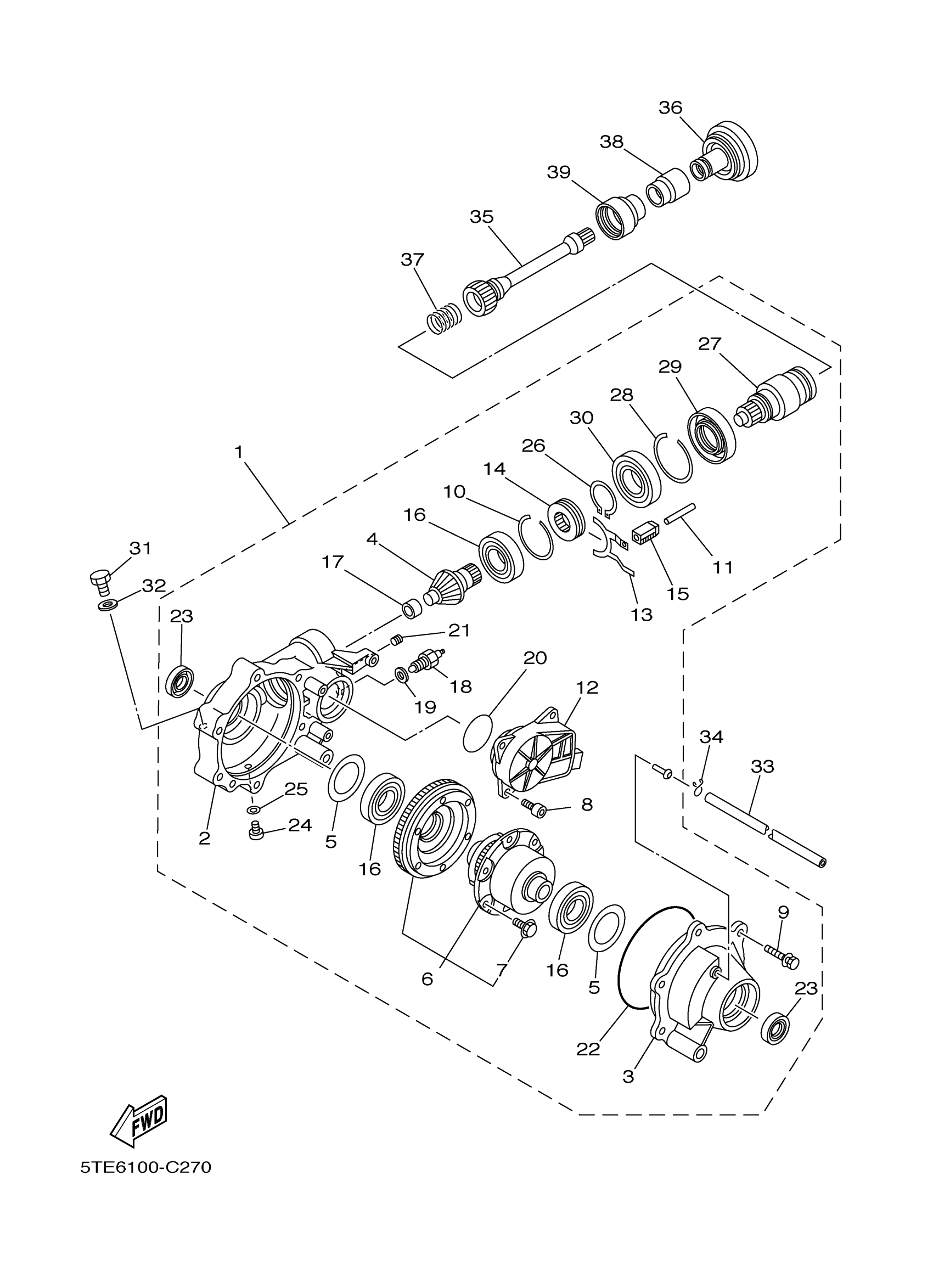

Yamaha YFM4FAS (KODIAK 400 4X4) 5TE6 2004 FRONT DIFFERENTIAL Diagram

#

Description
Price

1

FRONT AXLE GEAR CASE COMP.

5GH-46160-06-00

$1,796.99

2

HOUSING, SHAFT DRIVE 2

5GH-46161-01-00

$396.83

3

HOUSING, BEARING 2

5GH-46162-01-00

$181.26

4

PINION, DRIVE 2

5GH-46141-01-00

$250.60

5

SHIM, THRUST

4WV-46119-01-00

$6.46

5

SHIM, THRUST

4WV-46119-11-00

$10.78

5

SHIM, THRUST

4WV-46119-21-00

$6.34

5

SHIM, THRUST

4WV-46119-31-00

$6.43

5

SHIM, THRUST

4WV-46119-41-00

$6.43

5

SHIM, THRUST

4WV-46119-51-00

$6.49

5

. SHIM, THRUST (15T)

4WV-46119-60-00

Unavailable

5

. SHIM, THRUST (20T)

4WV-46119-70-00

Unavailable

5

. SHIM, THRUST (25T)

4WV-46119-80-00

Unavailable

6

LIMITED SLIP DIFF. ASSY

5GH-46470-04-00

$928.99

7

BOLT 1

4WV-46155-00-00

$5.71

8

BOLT, SOCKET

91317-08020-00

$2.34

9

BOLT 3

4WV-46159-00-00

$4.08

10

RING,HOLE SNAP 2

4WV-46143-00-00

$10.32

11

SHAFT, SHIFTER

5GH-18318-00-00

$14.05

12

SERVO MOTOR COMP

5GH-4616A-02-00

$801.99

13

FORK, SHIFT 4

5GH-18514-01-00

$32.38

14

CLUTCH,DRIVEN

4WV-46441-00-00

$53.83

15

SHAFT 2

5GH-18319-00-00

$147.08

16

BEARING 2

4WV-46165-00-00

$62.97

17

BEARING 4

4WV-46167-00-00

$32.25

18

NEUTRAL SWITCH ASSY

3GD-82540-11-00

$47.36

19

GASKET 1

4WV-46132-00-00

$3.23

20

O-RING

93210-50768-00

$5.86

21

BOLT, SET

90113-08004-00

$5.40

22

O-RING

93211-40040-00

$13.85

23

SEAL,OIL 1

3B4-46163-00-00

$16.86

24

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

$3.65

25

GASKET

90430-10003-00

$7.51

26

CIRCLIP

93450-44141-00

$4.29

27

COUPLING

5GH-46126-01-00

$163.05

28

CIRCLIP

93450-71142-00

$6.62

29

SEAL,OIL 1

5TE-46163-00-00

$29.94

30

BEARING

93316-00801-00

$79.26

31

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

32

GASKET

214-11198-01-00

$2.66

33

HOSE

90445-07809-00

$8.66

34

CLIP (1J7)

90467-07029-00

$1.92

35

SHAFT, DRIVE 2

5TE-G6173-10-00

$77.77

36

COUPLING, GEAR

5GH-46123-00-00

$105.33

37

SPRING, COMPRESSION

90501-296L7-00

$5.74

38

SEAL 1

5GH-46136-00-00

$5.17

39

SEAL 2

5KM-46137-00-00

$14.62
