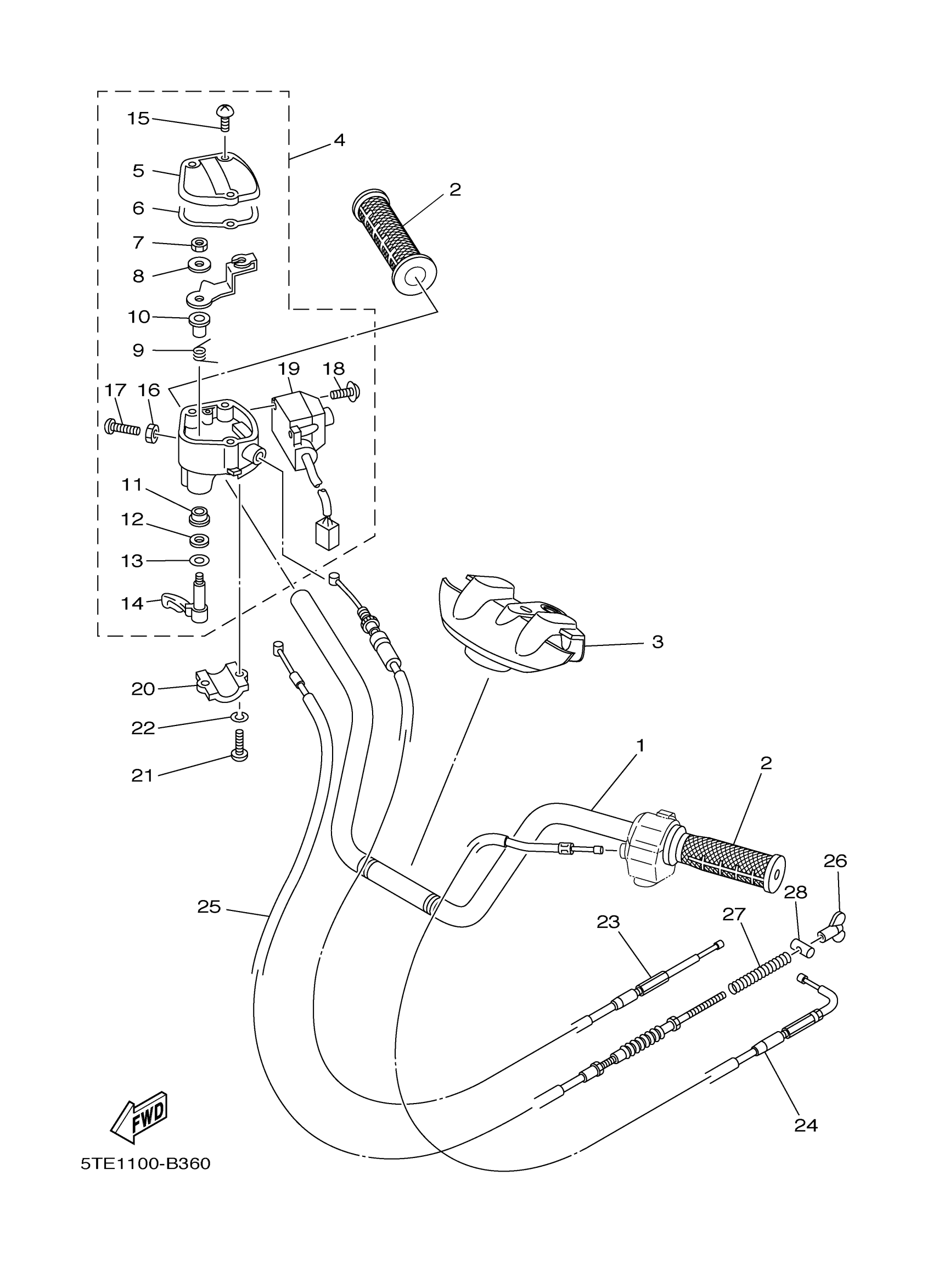

Yamaha YFM4FAHS (KODIAK 400 HUNTER EDITION) 5TEA 2004 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

Unavailable

2

GRIP

5FU-F6241-10-00

$10.31

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$37.25

4

THROTTLE LEVER ASSY

4WV-26250-12-00

Unavailable

5

CAP, GEAR

4KB-2628F-10-00

$24.74

6

GASKET

4KB-2628G-00-00

$10.63

7

NUT, U

95617-05100-00

$6.68

8

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

9

SPRING

1NV-26304-00-00

$11.17

10

COLLAR

1NV-26259-01-00

$6.43

11

COLLAR

1NV-2625K-00-00

$5.86

12

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

13

WASHER

1NV-26129-00-00

$6.43

14

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

15

SCREW(3HE)

90149-04278-00

$0.74

16

NUT, HEXAGON SMALL

95317-05700-00

$6.18

17

SCREW, PAN HEAD

98517-05020-00

$1.35

18

. SCREW, WITH WASHER

97607-04210-00

$3.30

19

SWITCH, HANDLE 1

4WV-83976-00-00

$135.42

20

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

21

SCREW, PAN HEAD

98517-05020-00

$1.35

22

WASHER(1RW)

92907-05600-00

$0.78

23

CABLE, THROTTLE 1

5GH-26311-11-00

$28.22

24

CABLE,STARTER 1

5VH-F6331-01-00

$10.95

25

CABLE, BRAKE

5TE-26341-00-00

$46.72

26

NUT, AJUSTING

20E-26343-00-00

$22.28

27

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

28

PIN 1562723700

90249-12008-00

$4.70
