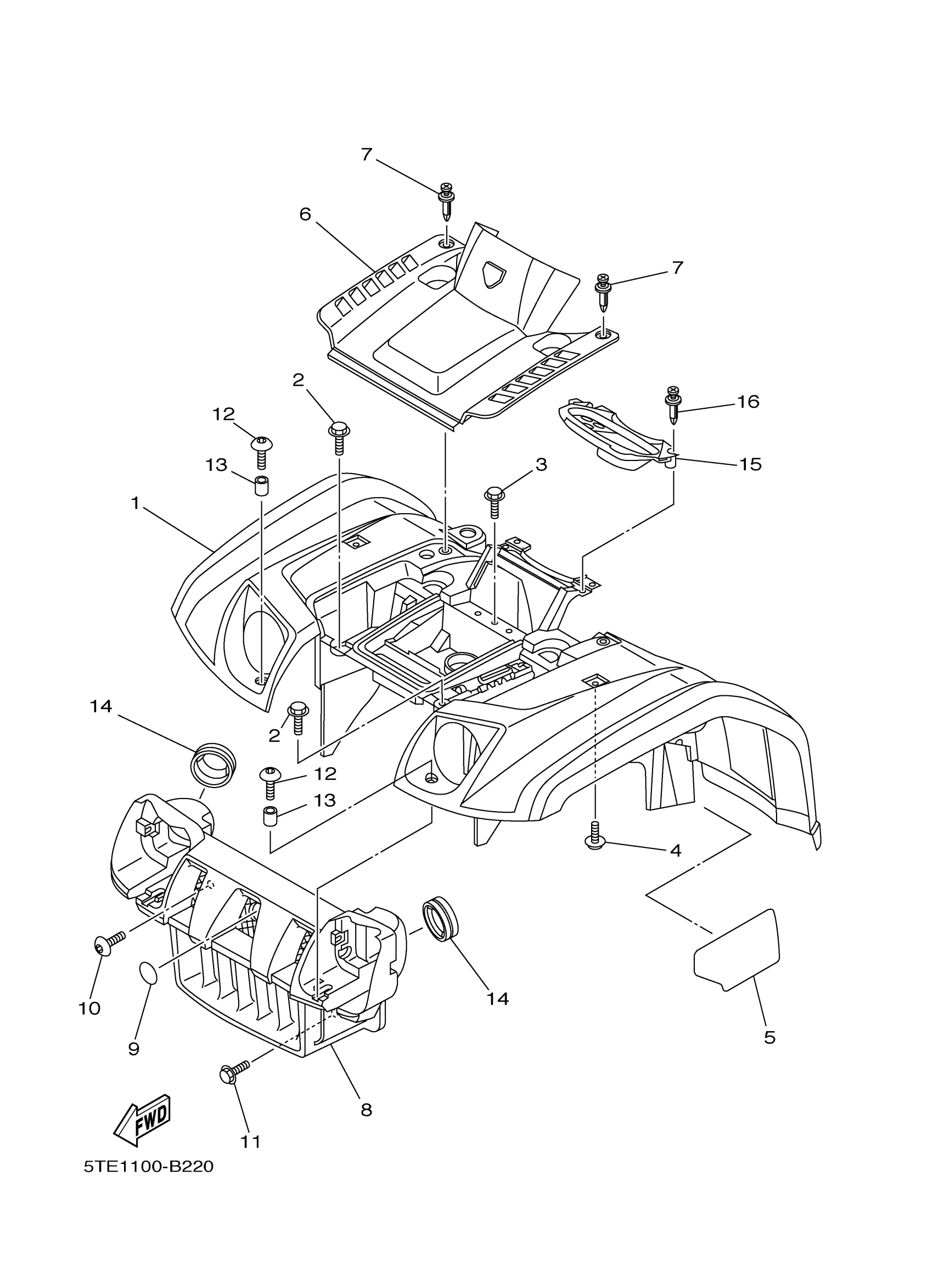

Yamaha YFM4FAHS (KODIAK 400 HUNTER EDITION) 5TEA 2004 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5ND-F1500-E0-00

Unavailable

2

BOLT, WITH WASHER

90119-06226-00

$2.12

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

SEAL 1

5ND-F1575-00-00

Unavailable

6

PANEL,FRONT

5ND-F3391-02-00

Unavailable

7

RIVET

90269-06800-00

$1.35

8

GRILLE, FRONT

5ND-F8309-00-00

Unavailable

9

TUNING FORK MARK

5FU-F175B-01-00

$12.25

10

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

$3.49

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$5.30

13

COLLAR

90387-067V1-00

$2.75

14

CAP

5GH-28349-00-00

$7.27

15

PANEL, CONSOLE 1

5TE-F837L-02-00

$89.65

16

RIVET

90269-06800-00

$1.35
