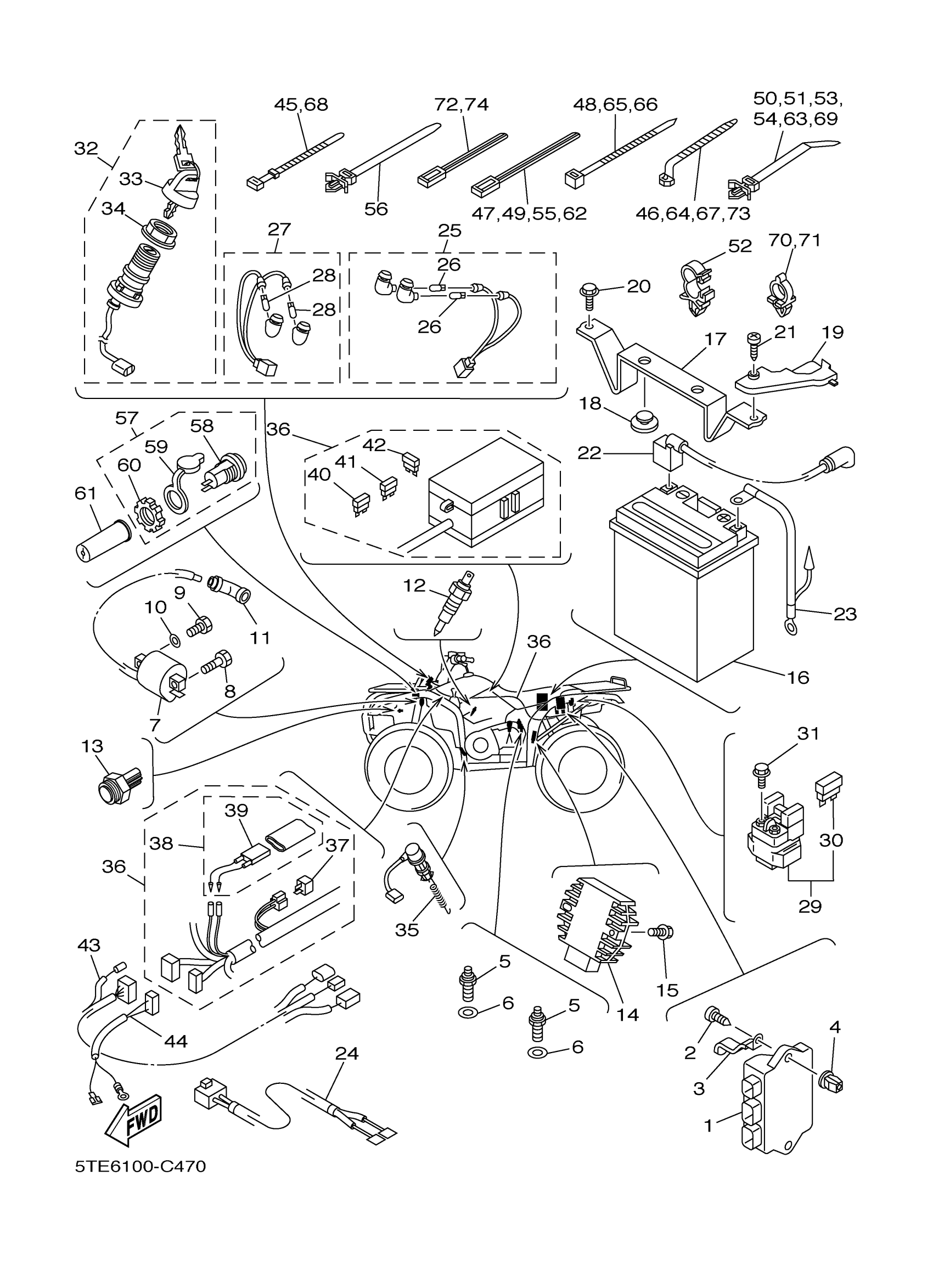

Yamaha YFM4FAHS (KODIAK 400 HUNTER EDITION) 5TEA 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5TE-85540-00-00

$456.74

2

SCREW, TAPPING

97707-60420-00

$6.46

3

CLAMP

90462-06016-00

$4.34

4

PLUG(4BP)

90338-08226-00

$1.63

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

6

GASKET (1KH,1.0T)

90430-10148-00

$4.74

7

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

8

BOLT (21V)

90109-06723-00

$6.71

9

BOLT, HEXAGON

97017-06020-00

$2.55

10

WASHER(6TA)

92907-06600-00

$0.78

11

PLUG CAP ASSY

3NS-82370-00-00

$31.58

12

THERMO SWITCH ASSY

4BA-82560-00-00

$76.02

13

THERMO SWITCH ASSY

5ND-82560-11-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

15

BOLT, FLANGE

95817-06020-00

$2.69

16

YTX14AHBS YUASA BATTERY - SA

YTX-14AHB-S0-00

$143.99

17

BRACKET, BATTERY

5TE-H2128-01-00

$6.65

18

PAD, BATTERY

371-82121-00-00

$7.91

19

COVER, LEAD WIRE

5ND-H2119-00-00

Unavailable

20

BOLT, FLANGE

95817-06020-00

$2.69

21

SCREW, TRUSS TAP.

97707-60016-00

$1.02

22

WIRE, PLUS LEAD

5TE-H2115-00-00

$11.40

23

WIRE, MINUS LEAD

5TE-H2116-00-00

$21.37

24

WIRE, LEAD

5TE-82541-00-00

Unavailable

25

PILOT LIGHT ASSY

5TE-83530-00-00

$38.48

26

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

27

PILOT LIGHT ASSY

5GH-83530-10-00

$37.66

28

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

29

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

$107.44

30

FUSE (12V 30A)

1AE-82151-00-00

$6.22

31

BOLT, FLANGE

95022-06008-00

$6.26

32

MAIN SWITCH ASSY

5ND-82510-01-00

$56.22

33

CAP, KEY

3HN-82579-00-00

$12.27

34

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

35

STOP SWITCH ASSY

4KB-82530-11-00

$47.60

36

WIRE HARNESS ASSY

5TE-82590-00-00

Unavailable

37

DIODE ASSY

3WP-81980-00-00

$18.85

38

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

39

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

40

FUSE (15A)

67F-82151-50-00

$3.71

41

. FUSE (10A)

67F-82151-40-00

$6.67

42

. FUSE (3A)

67F-82151-30-00

$4.89

43

WIRE, SUB LEAD

5GH-82309-10-00

Unavailable

44

WIRE, SUB LEAD

5GH-82509-30-00

$22.48

45

CLAMP

90464-51800-00

$11.86

46

CLAMP

90464-12830-00

$1.02

47

CLAMP(JN6)

90464-40825-00

$1.77

48

CLAMP(JN6)

90464-31827-00

$2.63

49

CLAMP(JN6)

90464-40825-00

$1.77

50

CLAMP

90464-25800-00

Unavailable

51

CLAMP

90464-25800-00

Unavailable

52

CLAMP

90464-16006-00

$8.31

53

CLAMP

90464-25800-00

Unavailable

54

CLAMP

90464-25800-00

Unavailable

55

CLAMP(JN6)

90464-40825-00

$1.77

56

CLAMP

90464-38800-00

$4.28

57

TERMINAL ASSY

5FU-H1920-10-00

$42.51

58

. TERMINAL

5FU-H1925-10-00

Unavailable

59

COVER

5FU-H1942-10-00

Unavailable

60

NUT

5FU-H191B-10-00

$1.28

61

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

62

CLAMP(JN6)

90464-40825-00

$1.77

63

CLAMP

90464-25800-00

Unavailable

64

CLAMP

90464-12830-00

$1.02

65

CLAMP(JN6)

90464-31827-00

$2.63

66

CLAMP(JN6)

90464-31827-00

$2.63

67

CLAMP

90464-12830-00

$1.02

68

CLAMP

90464-51800-00

$11.86

69

CLAMP

90464-25800-00

Unavailable

70

CLAMP

90464-12830-00

$1.02

71

CLAMP

90464-12830-00

$1.02

72

CLAMP

90464-48800-00

$3.54

73

CLAMP

90464-12830-00

$1.02

74

CLAMP

90464-48800-00

$3.54
