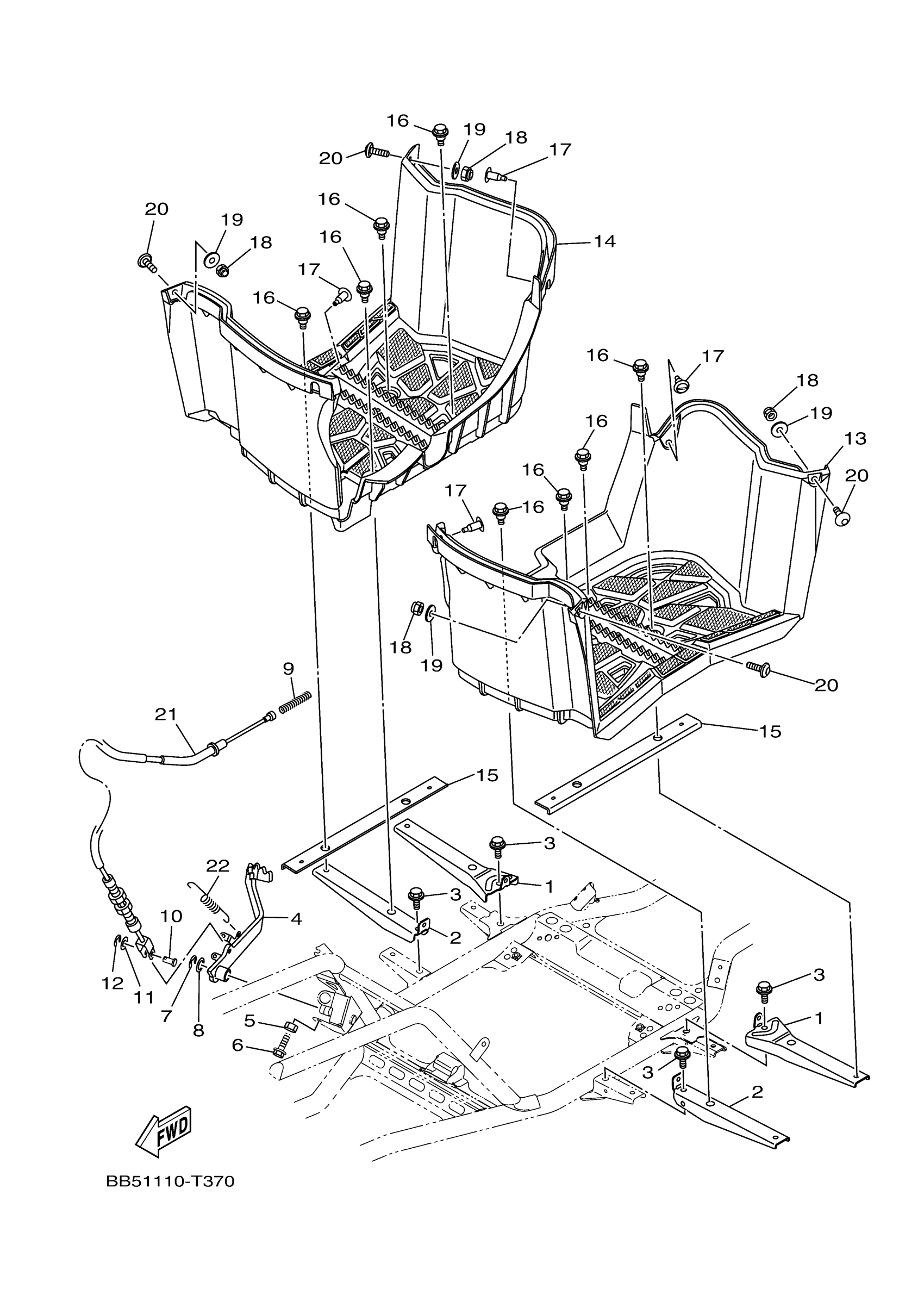

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 STAND & FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

BB5-F7471-00-00

$8.60

2

BAR, FOOTREST 1

5ND-F7471-01-00

$12.02

3

BOLT, FLANGE DEEP RECESS

95D32-08012-00

$0.43

4

PEDAL, BRAKE

1CT-F7211-01-00

$26.97

5

NUT(JN5)

95317-06700-00

$6.69

6

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.74

7

CIRCLIP (137)

93430-10015-00

$7.48

8

WASHER, PLATE

90201-14023-00

$5.25

9

SPRING, COMPRESSION (29U)

90501-10782-00

$6.17

10

PIN, CLEVIS (3X3)

90240-06076-00

$6.17

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

12

PIN, COTTER (648)

91490-20015-00

$1.85

13

COVER 1

BB5-F7453-00-00

$60.18

14

COVER 2

BB5-F7463-00-00

$59.39

15

PLATE 1

5ND-F7445-00-00

$8.25

16

BOLT

90109-06840-00

$1.17

17

RIVET

90269-06804-00

$1.19

18

NUT, NYLON

95707-06300-00

$3.20

19

WASHER, PLATE

90201-06078-00

$5.48

20

BOLT

90111-06051-00

$4.34

21

CABLE, BRAKE

BB5-F6361-00-00

$31.42

22

SPRING, TENSION

90506-20010-00

$5.80
