Description

Price

1

WHEEL COMP.

B16-F5180-00-00

$178.98

2

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

$157.99

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT

90179-10022-00

$3.25

5

CAP, WHEEL

1HP-F512A-00-00

$1.74

6

DRIVE SHAFT ASSY

B5R-2518F-01-00

$248.98

7

BALL JOINT SET

28P-2510F-05-00

$503.28

8

DOUBLE OFF SET JOI

B5R-2510J-01-00

$189.58

9

BOOT SET (BALL JOI

28P-2510G-02-00

$53.03

10

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$39.99

11

CIRCLIP

4S1-2512H-00-00

$1.71

12

CIRCLIP

3B4-2512H-00-00

$5.12

13

SNAP RING

2HR-2512J-00-00

$5.71

14

BOOT BAND

4S1-2511G-00-00

$8.54

15

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

16

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

17

BOOT BAND (SMALL)

B5R-2512G-00-00

$3.86

18

DRUM, BRAKE

B5R-2511E-00-00

$91.20

19

CIRCLIP(2HR)

93450-22119-00

$5.10

20

STEERING KNUCKLE A

BB5-F3501-00-00

$160.85

21

BEARING

93305-00602-00

$98.89

22

CIRCLIP

99009-55500-00

$7.26

23

BALL JOINT 2

3B4-23579-01-00

$72.96

24

CIRCLIP(4A6)

99009-30400-00

$6.55

25

HUB ASSY 2

B16-F510D-03-00

$51.07

26

BOLT, SERRATION

90114-10014-00

$2.74

27

NUT

90179-20016-00

$11.20

28

WHEEL COMP.

B16-F5180-00-00

$178.98

29

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

$157.99

30

VALVE, RIM

93900-00812-00

$7.49

31

NUT

90179-10022-00

$3.25

32

CAP, WHEEL

1HP-F512A-00-00

$1.74

33

STEERING KNUCKLE A

BB5-F3502-00-00

$193.69

34

BEARING

93305-00602-00

$98.89

35

CIRCLIP

99009-55500-00

$7.26

36

BALL JOINT 2

3B4-23579-01-00

$72.96

37

CIRCLIP(4A6)

99009-30400-00

$6.55

38

HUB ASSY 2

B16-F510D-03-00

$51.07

39

BOLT, SERRATION

90114-10014-00

$2.74

40

NUT

90179-20016-00

$11.20

41

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$12.25

42

SCREW, BIND(1JK)

98980-06010-00

$6.89

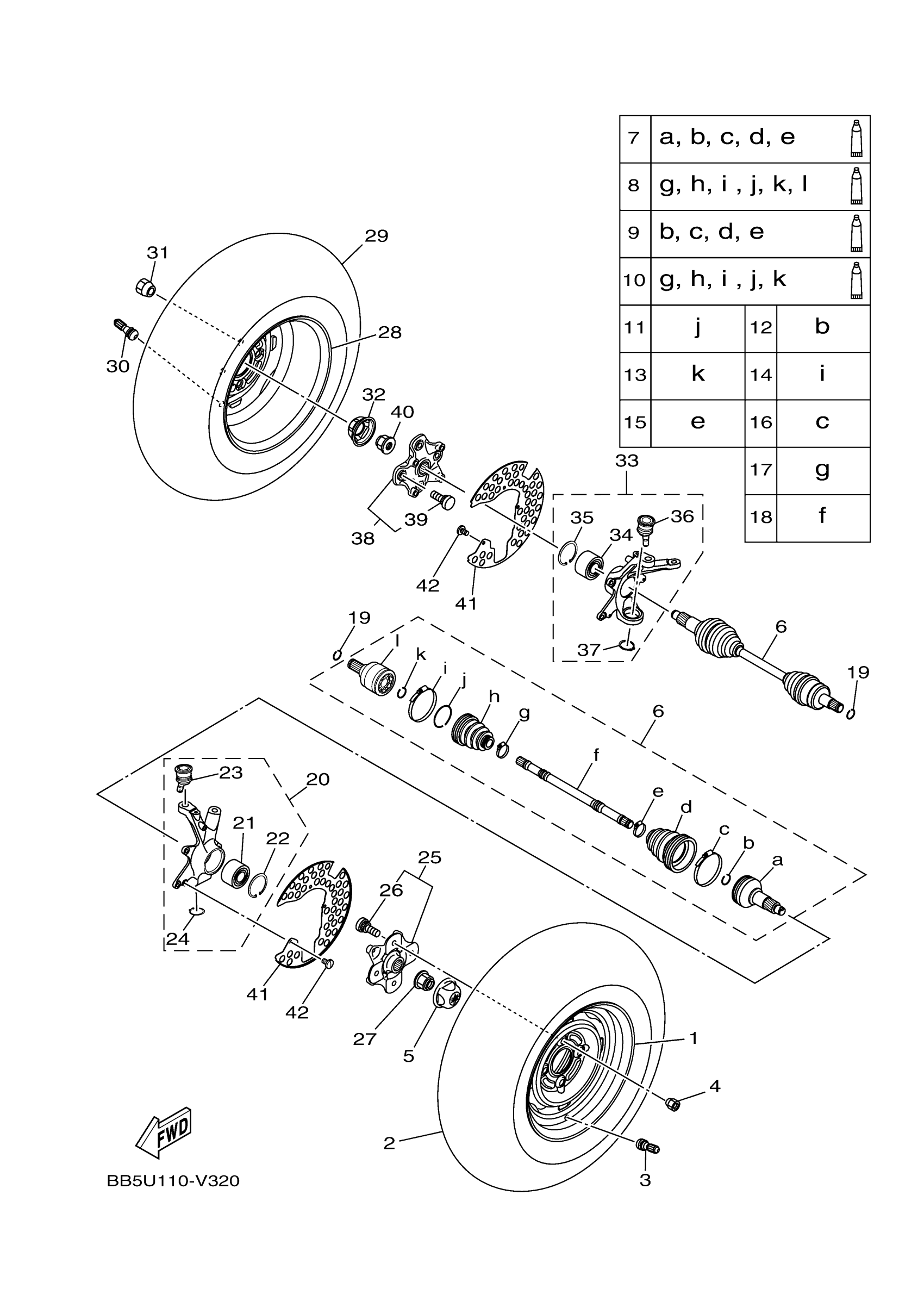

Yamaha YFM45KDXTG (KODIAK 450) D2971 2026 FRONT WHEEL Diagram
