Description

Price

1

MASTER CYLINDER ASSY

5KM-2583T-10-00

$239.02

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$21.77

4

CAP, RESERVOIR

5LP-25852-02-00

$20.17

5

SCREW, FLAT

98707-04012-00

$1.43

6

BRACKET, MASTER CYLINDER

5GM-25867-10-00

$20.68

7

BOLT, FITTING

5MV-25833-00-00

$5.75

8

LEVER 2

5KM-83922-00-00

$32.07

9

NUT, FLANGE(7NB)

95780-06500-00

$1.91

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$56.22

11

BOLT, LEVER

1FK-2589F-10-00

$8.12

12

HOSE, BRAKE 1

BB5-F5872-01-00

$15.92

13

CIRCLIP

2GU-25866-00-00

$8.70

14

HOSE, BRAKE 2

B5R-F5873-01-00

$55.51

15

PIPE, BRAKE

1CT-F5871-00-00

$5.98

16

CLAMP

90464-18002-00

$6.92

17

HOLDER, BRAKE HOSE

5ND-F5875-01-00

$3.46

18

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$6.05

19

HOLDER, BRAKE HOSE

3B4-25886-00-00

$6.43

20

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$6.05

21

BOLT, UNION

90401-10015-00

$9.89

22

WASHER, PLATE(481)

90201-10118-00

$2.91

23

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$0.83

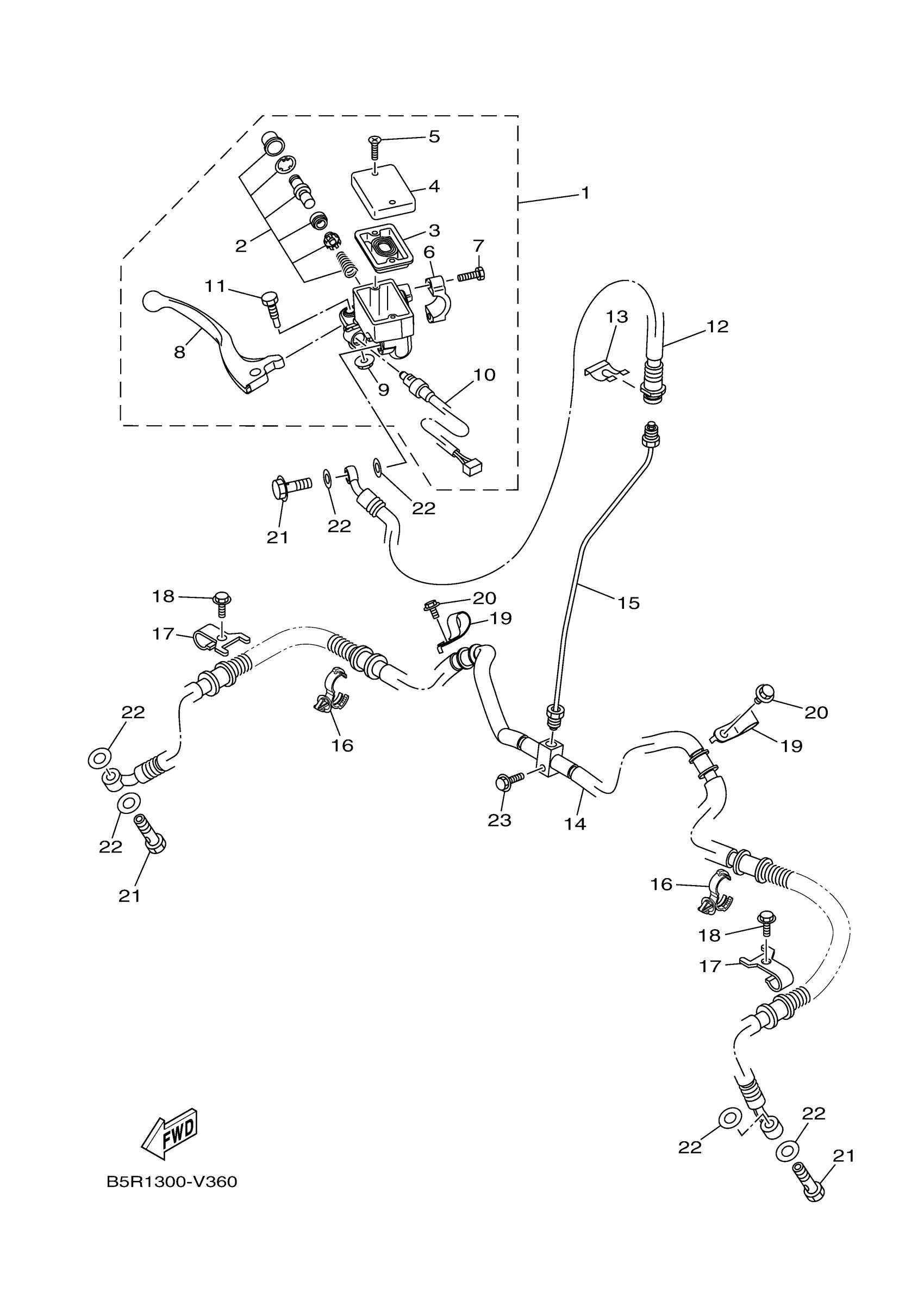

Yamaha YFM45KDXSG (KODIAK 450) D2941 2025 FRONT MASTER CYLINDER Diagram
