Description

Price

1

FUEL TANK COMP.

3C2-F4110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$53.05

3

FUEL COCK ASSY 1

3C2-24500-00-00

$36.42

4

SEAL, COCK

3AJ-24534-01-00

$9.32

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

6

O-RING

4X8-24512-00-00

$7.51

7

VALVE PACKING

3AC-24523-00-00

$11.58

8

LEVER, COCK

3HE-24524-00-00

$29.16

9

SCREW, FLAT HEAD(3HH)

98707-04018-00

$1.95

10

WASHER, PLATE(3MB)

90202-05187-00

$1.01

11

SCREW 256241430000

90149-06011-00

$1.58

12

GROMMET (4V1)

90480-18290-00

$7.02

13

COLLAR (36R)

90387-066J1-00

$6.86

14

BOLT, WITH WASHER

90119-06883-00

$1.20

15

GROMMET(38W)

90480-01400-00

$10.06

16

WASHER, PLATE

90201-06090-00

$5.17

17

COLLAR (1T2)

90387-07598-00

$4.83

18

BOLT, WITH WASHER

90119-06883-00

$1.20

19

PIPE, FUEL 1

3C2-F4311-00-00

$8.03

20

CLIP

90467-100A1-00

$6.38

21

HOSE

90445-088C5-00

$4.06

22

DAMPER, PLATE 1

3C2-F414H-00-00

Unavailable

23

BRACKET, SEAT

4EW-2412F-00-00

$12.71

24

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

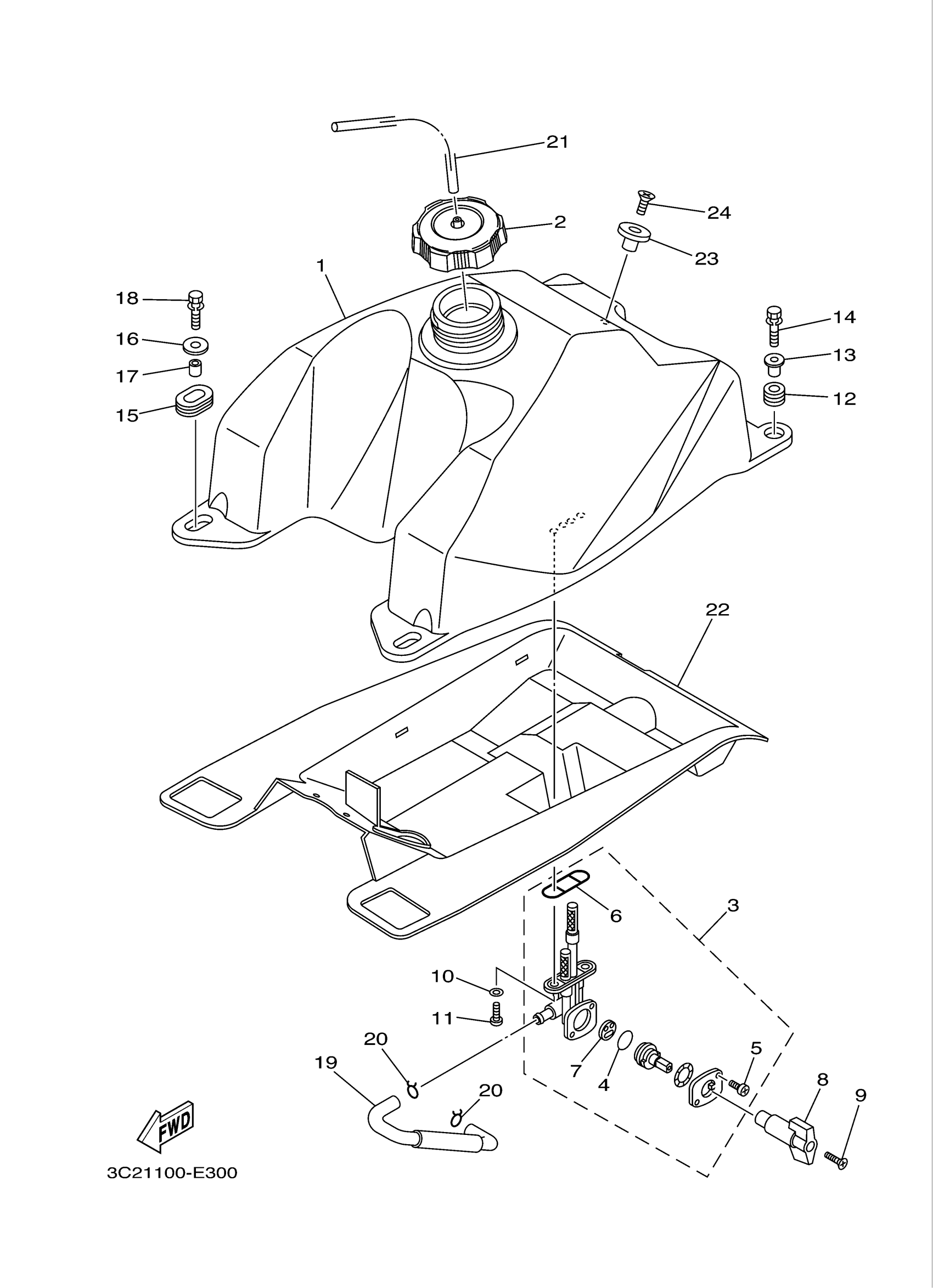

Yamaha YFM45FXW (WOLVERINE 450 4X4 SPORT) 3C24 2007 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER, PLATE 1
