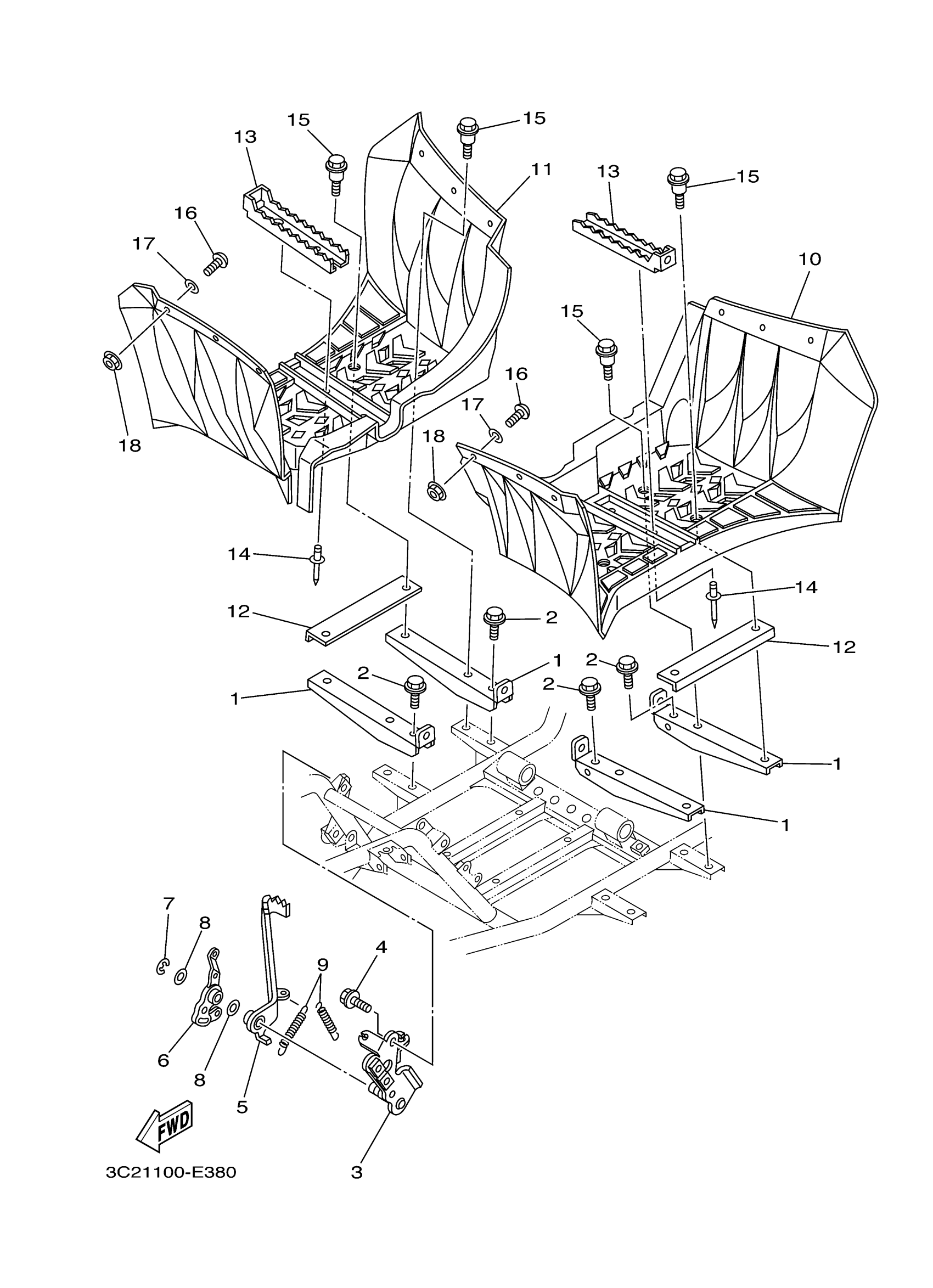

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

3C2-F7471-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$3.98

3

BRACKET, FOOTREST

5ND-F7412-11-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$3.98

5

PEDAL, BRAKE

5ND-F7211-10-00

$27.22

6

LEVER, BRAKE PEDAL

5ND-F7252-11-00

Unavailable

7

CIRCLIP (137)

93430-10015-00

$7.48

8

WASHER, PLATE(52G)

90201-144J2-00

$6.46

9

SPRING, TENSION(3JN)

90506-12441-00

$7.23

10

COVER 1

3C2-F7453-00-00

Unavailable

11

COVER 2

3C2-F7463-00-00

Unavailable

12

PLATE 1

5ND-F7445-00-00

$8.25

13

ARM 1

3C2-F741A-00-00

Unavailable

14

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.32

15

BOLT

90109-06072-00

$5.02

16

SCREW(3YF)

90149-05299-00

$3.52

17

WASHER, PLATE 8067717800

90201-05029-00

$5.12

18

NUT, NYLON

95707-05300-00

$2.74
