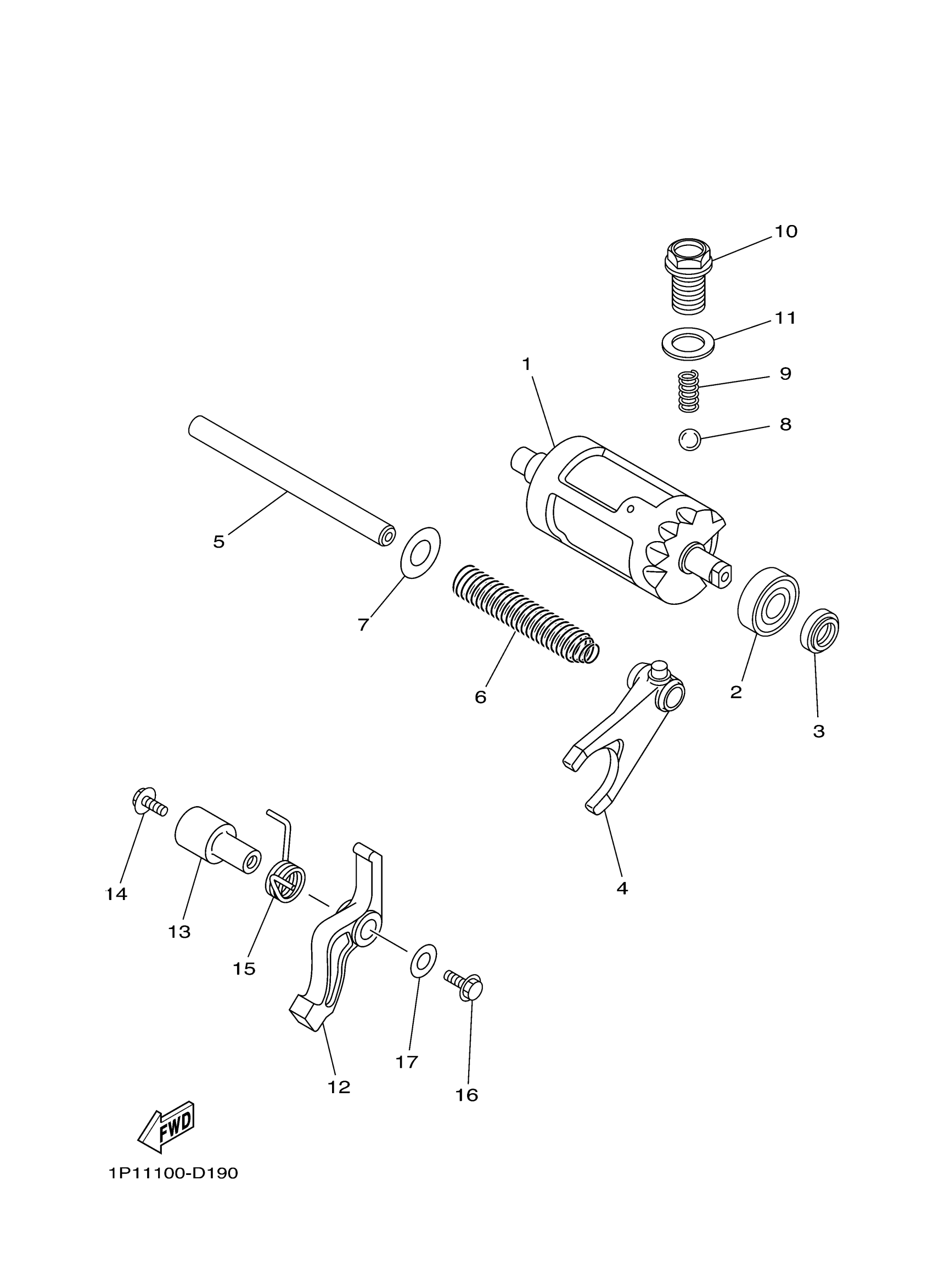

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

1P1-18540-00-00

Unavailable

2

BEARING(36F)

93306-00208-00

$36.68

3

OIL SEAL (3X3)

93102-15212-00

$7.34

4

FORK, SHIFT 1

1D9-18511-00-00

$42.75

5

BAR, SHIFT FORK GUIDE 1

4KB-18531-01-00

$15.72

6

SPRING, COMPRESSION

90501-160A1-00

$3.28

7

WASHER PLATE 278156130000

90201-15234-00

$6.78

8

BALL

93503-08007-00

$2.35

9

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

10

BOLT, FLANGE

90105-14003-00

$6.63

11

GASKET(59V)

90430-14194-00

$6.17

12

LEVER, STOPPER

5GH-18148-00-00

$61.88

13

SHAFT, STOPPER

5GH-1812E-00-00

$41.54

14

BOLT, WASHER BASED(JA9)

90105-06696-00

$6.29

15

SPRING, TORSION

90508-235B7-00

$2.83

16

BOLT, FLANGE(4DU)

95027-06014-00

$0.74

17

WASHER, PLATE

90201-06020-00

$6.28
