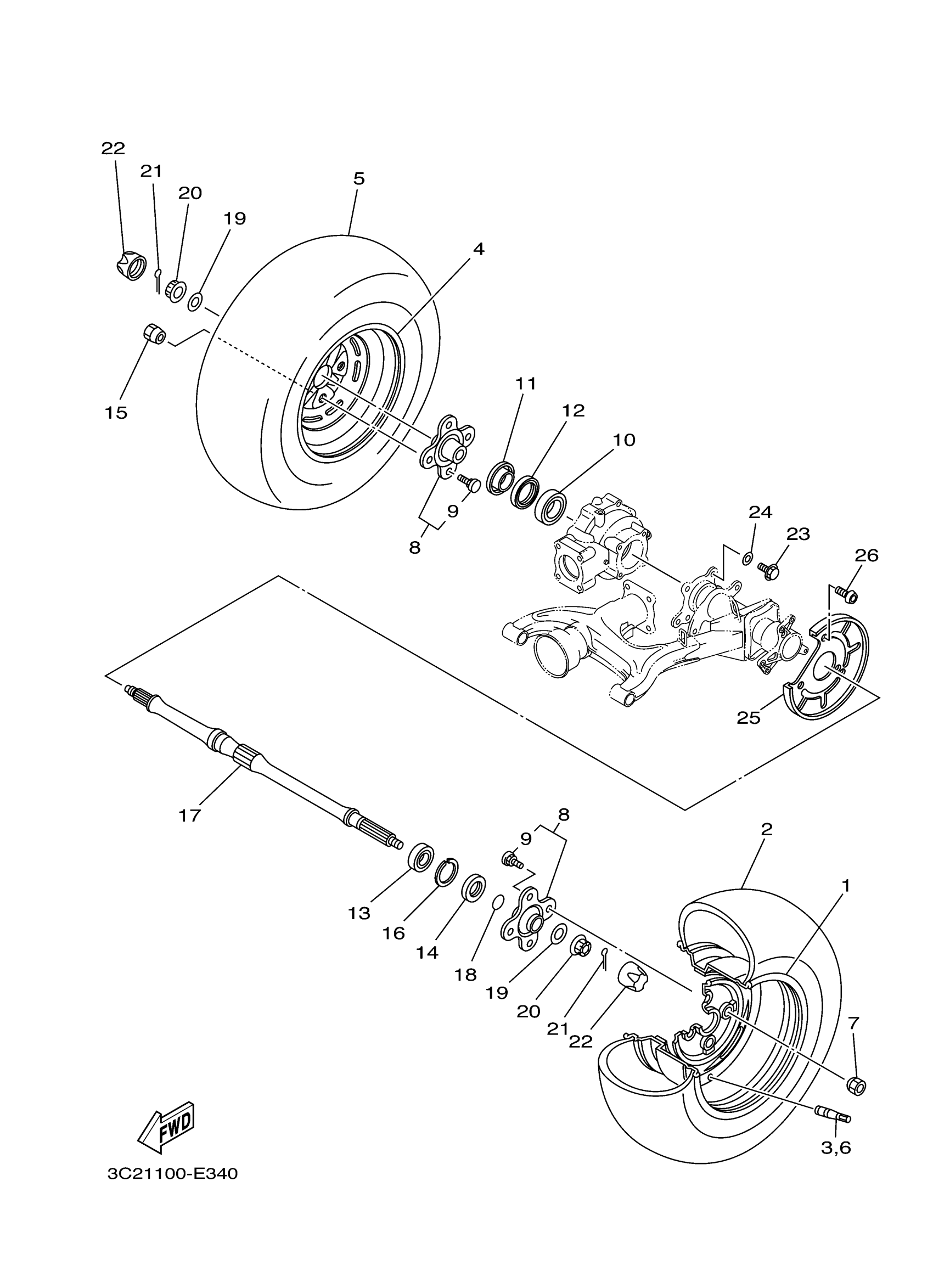

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

3C2-F5390-10-00

Unavailable

2

23 X 10.00 R12 M938 3STAR RADL

94110-12811-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

REAR WHEEL COMP.

3C2-F5390-10-00

Unavailable

5

23 X 10.00 R12 M938 3STAR RADL

94110-12811-00

Unavailable

6

VALVE, RIM

93900-00812-00

$7.49

7

NUT

90179-10007-00

$5.38

8

COLLAR, WHEEL

5ND-F5383-11-00

$57.53

9

BOLT

1P0-F5411-00-00

$1.77

10

BEARING

93306-008Y1-00

$28.08

11

COVER, HUB DUST

4SH-25367-01-00

$40.55

12

OIL SEAL

93106-47040-00

$16.62

13

BEARING

93306-006Y2-00

$23.74

14

OIL SEAL

93106-38046-00

$14.64

15

NUT

90179-10007-00

$5.38

16

CIRCLIP

99009-55500-00

$7.26

17

AXLE, WHEEL

5ND-F5381-01-00

$379.72

18

O-RING(47X)

93210-27666-00

$5.53

19

WASHER, PLATE

90201-16804-00

$9.78

20

NUT, CASTLE

90171-16001-00

$19.52

21

PIN, COTTER

91490-30030-00

$7.15

22

CAP, WHEEL

5GT-2512A-00-00

$8.70

23

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

24

WASHER, PLATE(47X)

90201-101J1-00

$6.17

25

PROTECTOR, DISK BRAKE

5ND-F5718-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06012-00

$2.05
