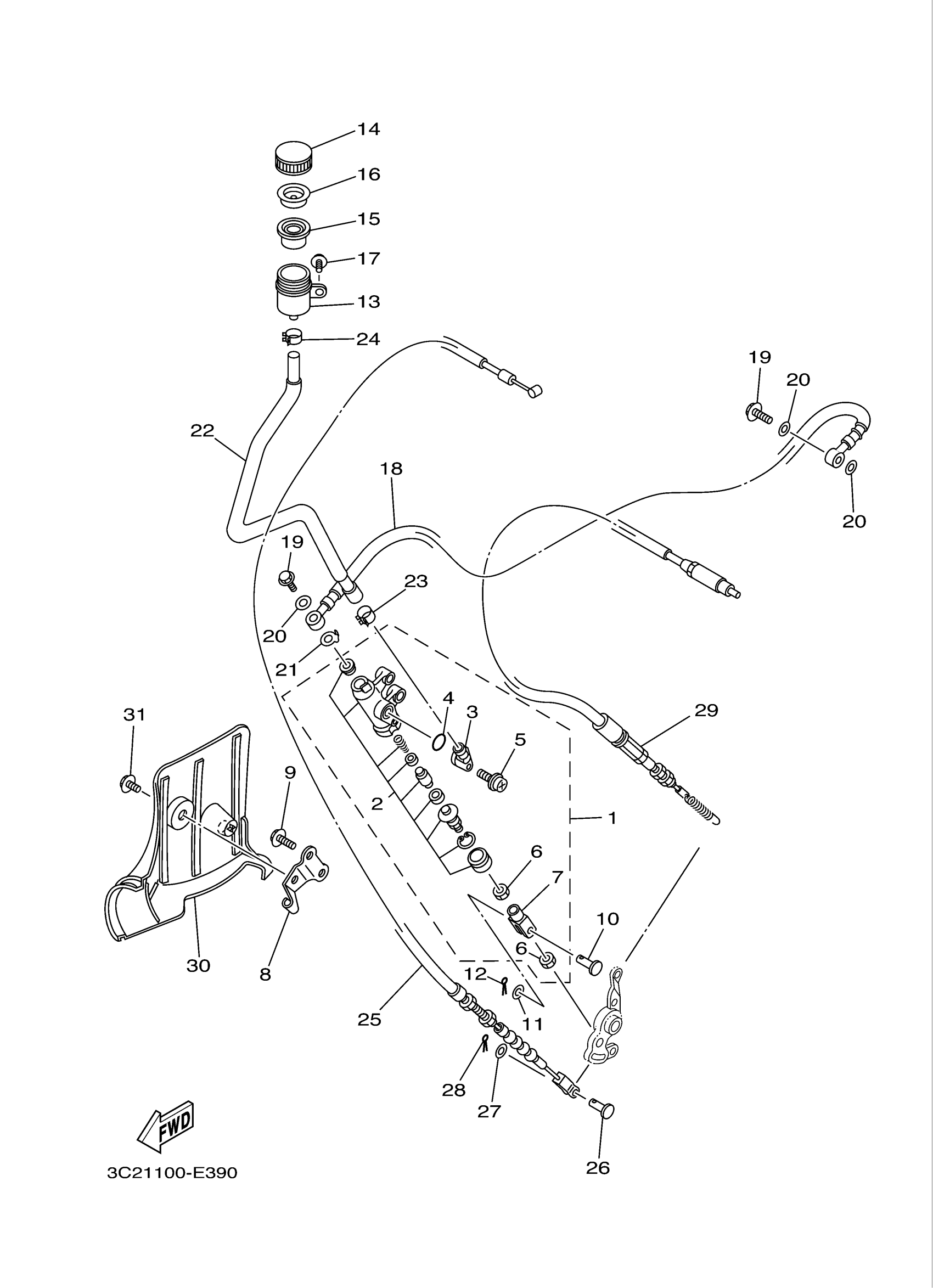

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5KM-2583V-00-00

$195.61

2

CYLINDER KIT, MASTER

5BE-W0042-00-00

$79.80

3

JOINT

31A-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$5.78

5

SCREW, WITH WASHER

3GM-2589H-00-00

$6.38

6

NUT, HEXAGON SMALL

95317-08700-00

$7.05

7

JOINT

2YK-27222-00-00

$19.20

8

HOLDER, WIRE

5ND-F637G-00-00

Unavailable

9

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

10

PIN W/HOLE 307181180000

90240-08013-00

$5.10

11

WASHER, PLATE 1562722600

90201-08083-00

$6.29

12

PIN, COTTER

91490-16020-00

$6.23

13

TANK, RESERVOIR

2VN-25894-00-00

$18.72

14

CAP, RESERVOIR

4PX-25852-00-00

$19.92

15

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$19.62

16

BUSH,DIAPHRAGM

2VN-25855-00-00

$9.49

17

BOLT, FLANGE

95817-06012-00

$1.49

18

HOSE, BRAKE

5ND-F5874-01-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

$8.85

20

WASHER, PLATE(481)

90201-10118-00

$2.91

21

WASHER, LOCK

5GH-25844-00-00

$7.11

22

HOSE, RESERVOIR

3C2-F5895-00-00

Unavailable

23

CLIP (5K4)

90467-14057-00

$7.51

24

CLIP (7K7)

90467-11044-00

$5.10

25

CABLE, BRAKE

3C2-26341-00-00

$32.94

26

PIN, CLEVIS (3X3)

90240-06076-00

$6.17

27

WASHER, PLATE (214-27417-00)

90201-06042-00

$6.58

28

PIN, COTTER (648)

91490-20015-00

$1.85

29

CABLE, CONTROL 2

5GH-2637F-11-00

$50.52

30

PROTECTOR

5ND-F7491-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

$1.49
