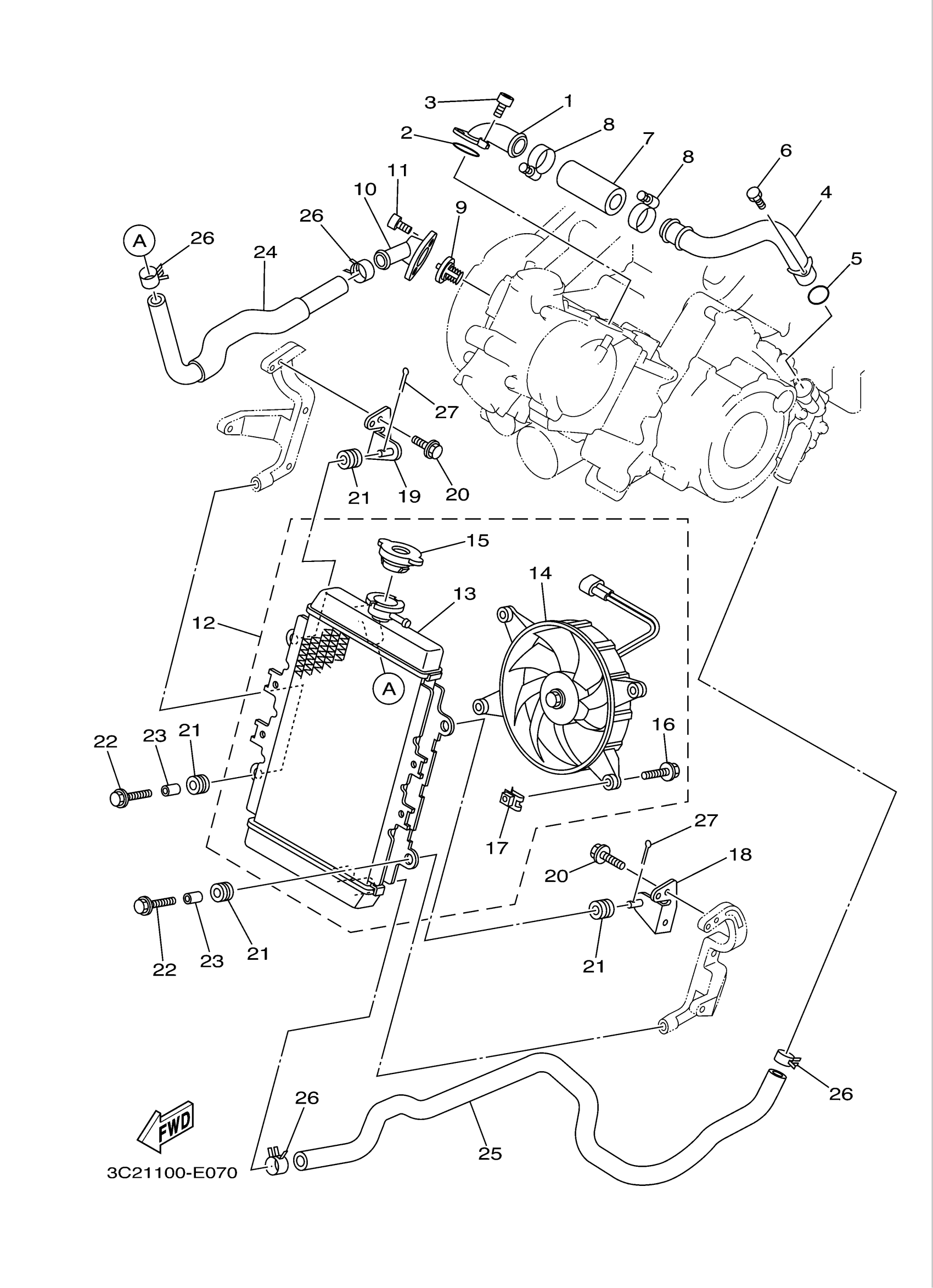

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

5GH-12446-00-00

$46.48

2

O-RING

93210-33006-00

$4.85

3

BOLT,SOCKET

91317-06020-00

$2.11

4

PIPE 4

5GH-12484-00-00

$47.84

5

O-RING (716)

93210-18417-00

$5.56

6

BOLT,SOCKET

91317-06012-00

$6.17

7

PIPE 1

5GH-12481-00-00

$9.37

8

HOSE CLAMP ASSY

90450-32015-00

$15.23

9

THERMOSTAT

2TV-12411-01-00

$62.54

10

COVER, THERMOSTAT

5GH-12413-00-00

$62.78

11

BOLT,SOCKET

91317-06020-00

$2.11

12

RADIATOR ASSY

3C2-E2460-00-00

Unavailable

13

. RADIATOR ASSY

3C2-E2461-00-00

Unavailable

14

BLOWER ASSY

5ND-E2405-02-00

$220.17

15

CAP, RADIATOR

5ND-E2462-00-00

$26.40

16

BOLT, BLOWER HOLDI

5ND-E2675-00-00

$0.66

17

PLATE

5ND-E2535-00-00

$11.29

18

BRACKET, RADIATOR 3

3C2-F142M-00-00

Unavailable

19

BRACKET, RADIATOR

3C2-F142N-00-00

Unavailable

20

BOLT, FLANGE

95817-06014-00

$2.15

21

GROMMET(2GH)

90480-12475-00

$6.68

22

BOLT, FLANGE

95817-06025-00

$1.46

23

COLLAR (1T2)

90387-07598-00

$4.83

24

PIPE 2

3C2-E2482-00-00

Unavailable

25

PIPE 3

3C2-E2483-00-00

Unavailable

26

CLIP

90467-26800-00

$3.00

27

CLIP (7U6)

90468-18121-00

$0.74
