Description

Price

1

HOUSING, ROTOR

1UY-13336-00-00

$37.88

2

SHAFT, PUMP

5GH-13314-00-00

$87.71

3

ROTOR ASSY 1

3Y1-13310-01-00

$61.42

4

COVER, PUMP

1UY-13316-00-00

$30.54

5

PIN,DOWEL (137)

93603-12030-00

$1.88

6

PIN, DOWEL

93603-07073-00

$5.20

7

SCREW, FLAT

98707-06020-00

$6.69

8

GASKET, PUMP COVER

3GD-13329-00-00

$6.46

9

CIRCLIP(24H)

99009-11400-00

$6.17

10

WASHER, PLATE(3YL)

90201-114P2-00

$3.57

11

SCREW, FLAT

98707-06030-00

$6.08

12

PIPE, OIL 1

2XK-13416-00-00

$6.62

13

STRAINER, OIL

51Y-13411-00-00

$31.03

14

SPRING, COMPRESSION (3Y1)

90501-18576-00

$6.17

15

PLUG, DRAIN

4HC-15351-00-00

$16.28

16

O-RING (5X4)

93210-35512-00

$11.12

17

ELEMENT ASSY, OIL

5GH-13440-90-00

$9.69

18

BOLT, UNION

90401-20007-00

$16.14

19

GEAR, PUMP DRIVE

5GH-13324-00-00

$37.88

20

KEY, STRAIGHT(34K)

90282-05065-00

$8.80

21

WASHER, LOCK (15Y)

90215-14205-00

$4.70

22

NUT (5H0)

90170-14284-00

$7.92

23

GEAR, PUMP DRIVEN

5GH-13325-00-00

$24.94

24

CIRCLIP(24H)

99009-11400-00

$6.17

25

PIPE, DELIVERY 1

4KB-13161-01-00

$65.18

26

GASKET

90430-08119-00

$4.70

27

BOLT, UNION

90401-08006-00

$5.48

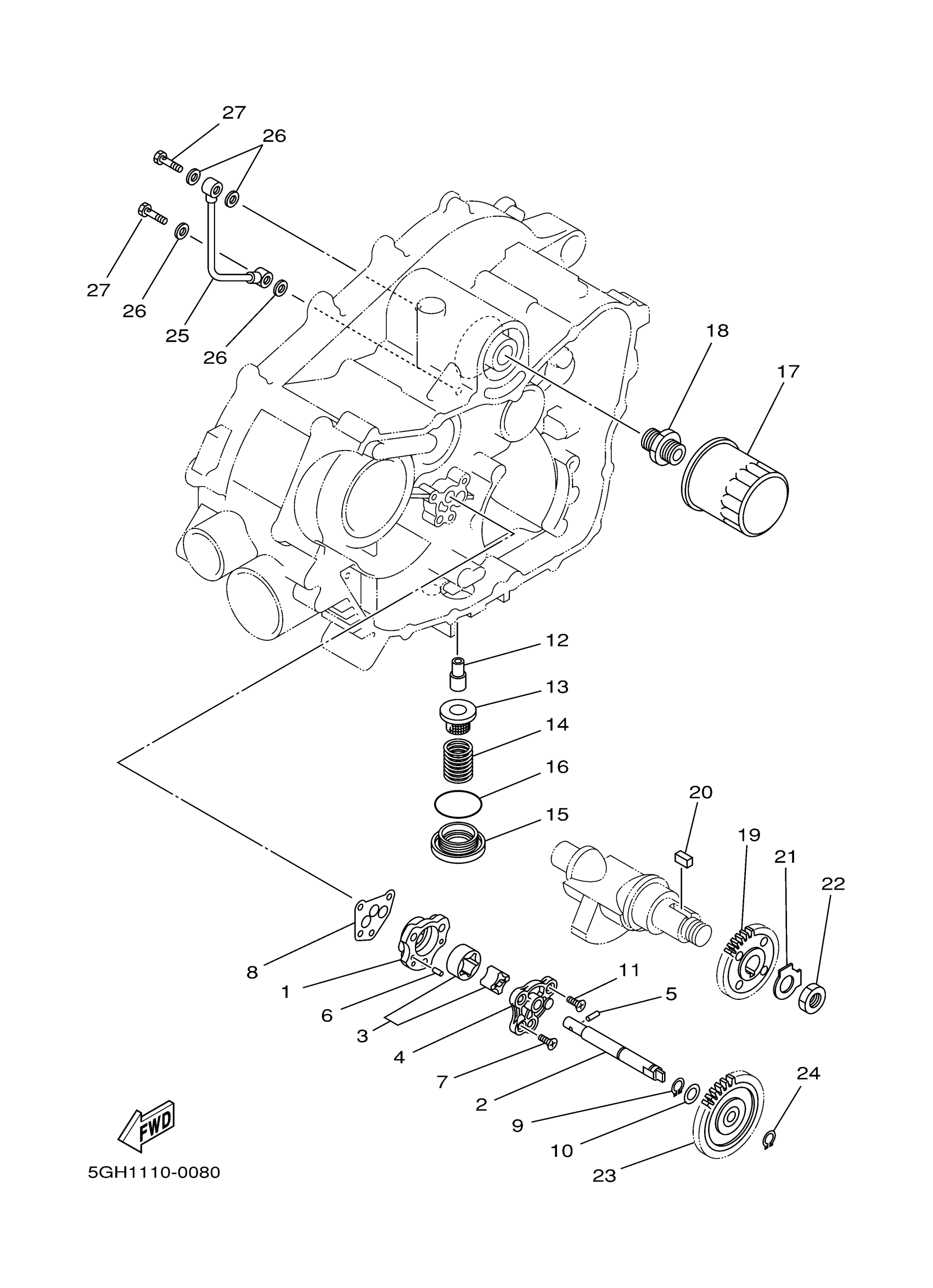

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 OIL PUMP Diagram
