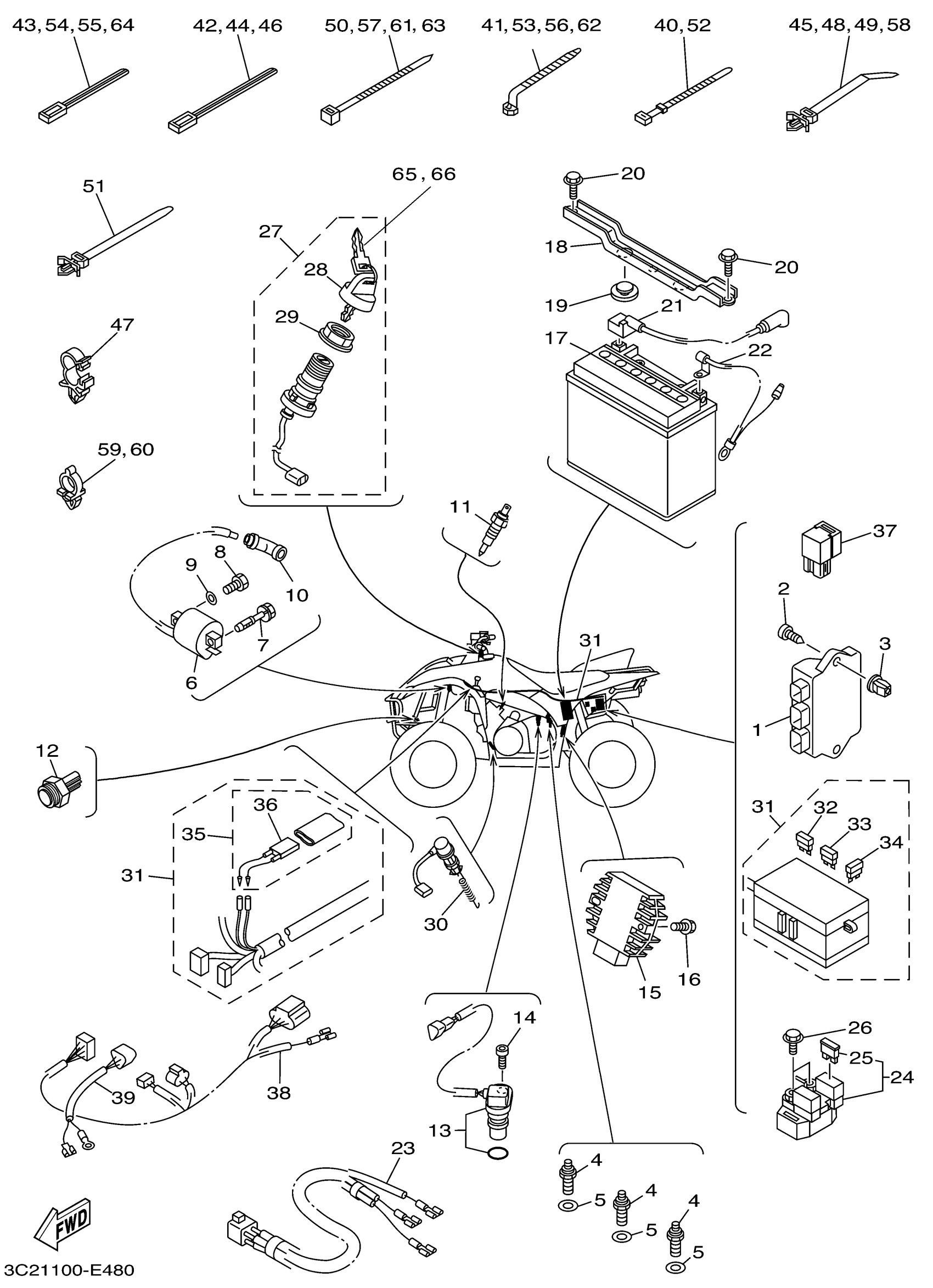

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3C2-85540-00-00

Unavailable

2

SCREW, TAPPING

97707-60420-00

$6.46

3

PLUG(4BP)

90338-08226-00

$1.63

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

5

GASKET (1KH,1.0T)

90430-10148-00

$4.74

6

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

7

BOLT (21V)

90109-06723-00

$6.71

8

BOLT, HEXAGON

97017-06020-00

$2.55

9

WASHER(6TA)

92907-06600-00

$0.78

10

PLUG CAP ASSY

3NS-82370-00-00

$31.58

11

THERMO SWITCH ASSY

5KM-82560-00-00

$79.19

12

THERMO SWITCH ASSY

5ND-82560-11-00

Unavailable

13

SENSOR, SPEED

3C2-83755-11-00

$113.06

14

BOLT,SOCKET

91317-06016-00

$1.16

15

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

16

BOLT, FLANGE

95817-06020-00

$2.69

17

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

18

BRACKET, BATTERY

5ND-H2128-02-00

$5.23

19

PAD, BATTERY

371-82121-00-00

$7.91

20

BOLT, FLANGE

95817-06020-00

$2.69

21

WIRE, PLUS LEAD

3C2-H2115-00-00

Unavailable

22

WIRE, MINUS LEAD

5ND-H2116-00-00

$18.57

23

WIRE, LEAD

1P1-82541-00-00

Unavailable

24

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

$107.44

25

FUSE (12V 30A)

1AE-82151-00-00

$6.22

26

BOLT, FLANGE

95022-06008-00

$6.26

27

MAIN SWITCH ASSY

5ND-82510-01-00

$56.22

28

CAP, KEY

3HN-82579-00-00

$12.27

29

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

30

STOP SWITCH ASSY

4KB-82530-11-00

$47.60

31

WIRE HARNESS ASSY

3C2-82590-00-00

Unavailable

32

FUSE (15A)

67F-82151-50-00

$3.71

33

. FUSE (10A)

67F-82151-40-00

$6.67

34

. FUSE (3A)

67F-82151-30-00

$4.89

35

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

36

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

37

RELAY ASSY

5DM-81950-01-00

$24.72

38

WIRE, SUB LEAD

3C2-82309-00-00

Unavailable

39

WIRE, SUB LEAD

3C2-82509-00-00

$13.14

40

CLAMP

90464-51800-00

$11.86

41

CLAMP

90464-12830-00

$1.02

42

CLAMP(JN6)

90464-40825-00

$1.77

43

CLAMP(JN6)

90464-31827-00

$2.63

44

CLAMP(JN6)

90464-40825-00

$1.77

45

CLAMP

90464-25800-00

Unavailable

46

CLAMP(JN6)

90464-40825-00

$1.77

47

CLAMP

90464-16006-00

$8.31

48

CLAMP

90464-25800-00

Unavailable

49

CLAMP

90464-25800-00

Unavailable

50

CLAMP

90464-48800-00

$3.54

51

CLAMP

90464-38800-00

$4.28

52

CLAMP

90464-51800-00

$11.86

53

CLAMP

90464-12830-00

$1.02

54

CLAMP(JN6)

90464-31827-00

$2.63

55

CLAMP(JN6)

90464-31827-00

$2.63

56

CLAMP

90464-12830-00

$1.02

57

CLAMP

90464-48800-00

$3.54

58

CLAMP

90464-25800-00

Unavailable

59

CLAMP

90464-12830-00

$1.02

60

CLAMP

90464-12830-00

$1.02

61

CLAMP

90464-48800-00

$3.54

62

CLAMP

90464-12830-00

$1.02

63

CLAMP

90464-48800-00

$3.54

64

CLAMP(JN6)

90464-31827-00

$2.63

65

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

66

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
