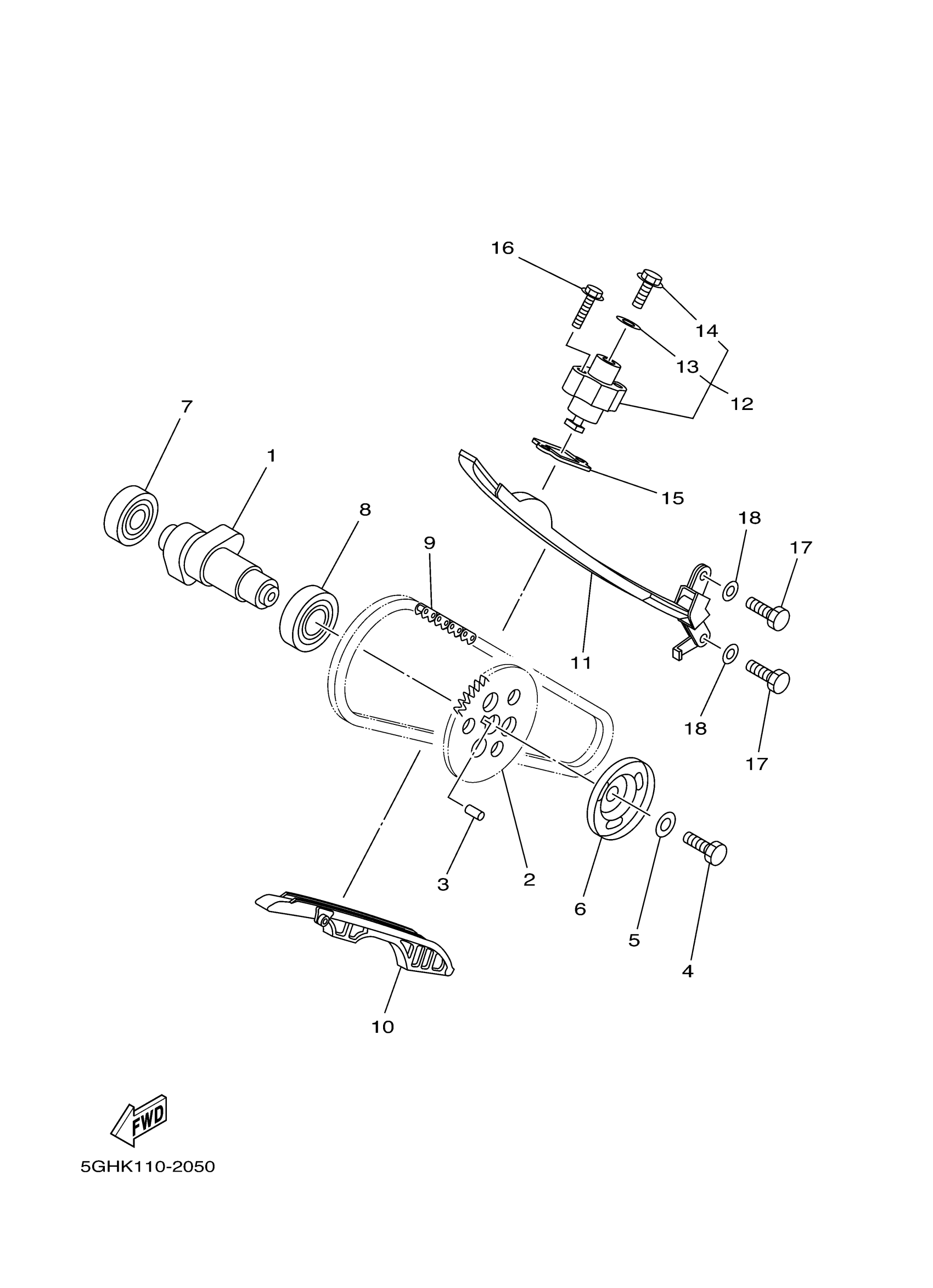

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5GH-12171-01-00

$167.37

2

SPROCKET, CAM CHAIN

5GH-12176-10-00

$44.34

3

PIN,DOWEL (603)

93604-10011-00

$5.10

4

BOLT (583)

90101-10303-00

$6.25

5

WASHER, PLATE (3L6)

90201-10774-00

$6.25

6

PLATE, BREATHER 2

4KB-11145-00-00

$10.18

7

BEARING(3BN)

93306-00438-00

$32.22

8

BEARING (31G)

93306-00515-00

$37.21

9

CHAIN

94582-20116-00

$26.52

10

GUIDE, STOPPER 1

5GH-12231-10-00

$42.76

11

GUIDE, STOPPER 2

5GH-12241-01-00

$58.05

12

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$148.89

13

GASKET, TENSIONER

31G-12214-00-00

$12.27

14

PLUG

31G-12222-00-00

$21.83

15

GASKET, TENSIONER CASE

3GD-12213-00-00

$5.75

16

BOLT, SMALL FLANGE

95027-06025-00

$3.18

17

BOLT, HEXAGON

97017-06016-00

$6.18

18

WASHER(6TA)

92907-06600-00

$0.78
