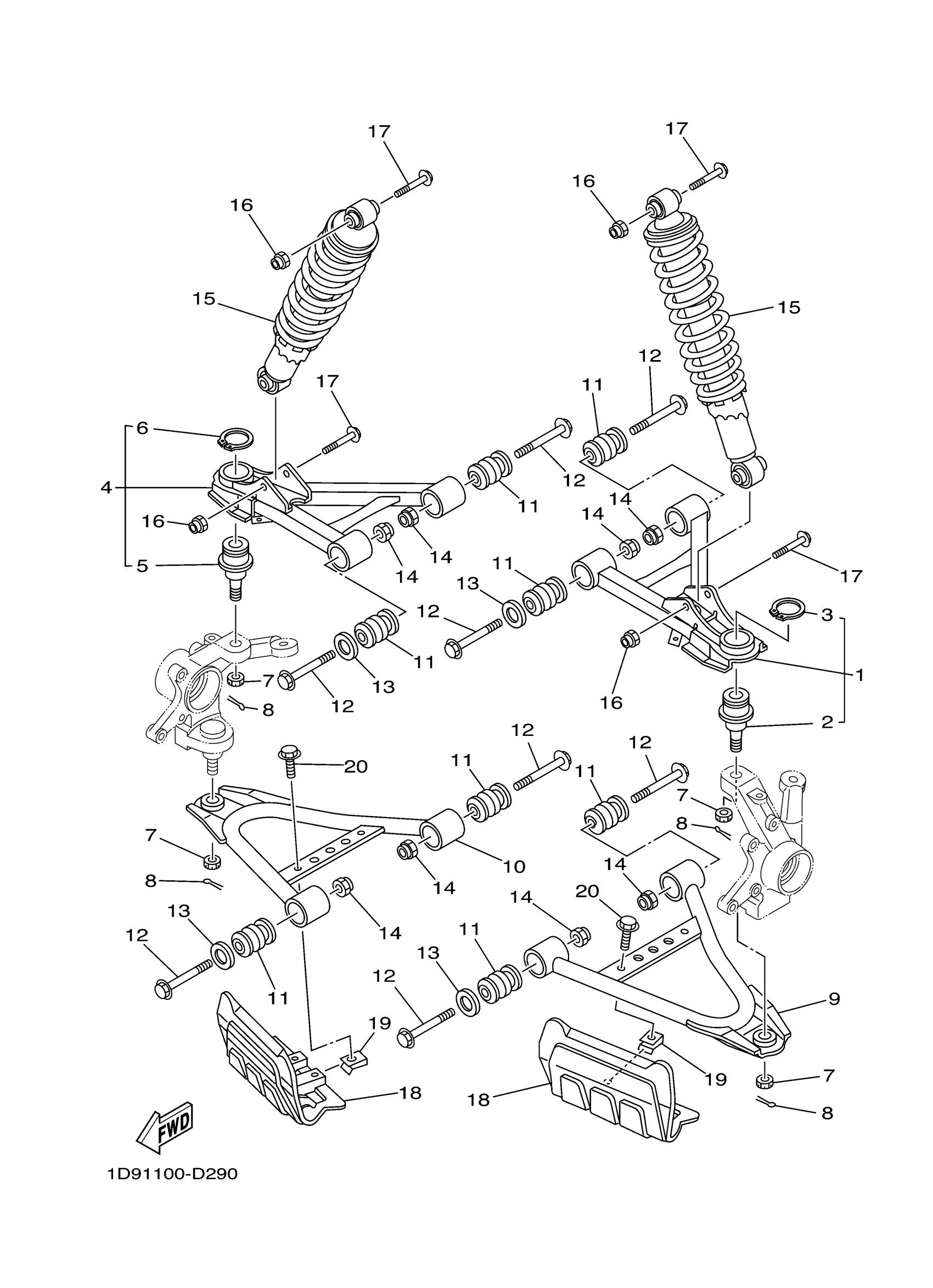

Yamaha YFM45FGW (GRIZZLY 450) 1D9M 2007 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

5ND-F3540-13-00

$172.26

2

BALL JOINT 1

37S-23549-01-00

$67.35

3

CIRCLIP

93410-32075-00

$6.97

4

FRT. UPPER ARM (R)

5ND-F3550-13-00

$119.58

5

BALL JOINT 1

37S-23549-01-00

$67.35

6

CIRCLIP

93410-32075-00

$6.97

7

NUT, CASTLE

90171-12001-00

$2.85

8

PIN, COTTER

91490-25020-00

$2.94

9

ARM,FR. LWR. LH.

1D9-F357A-00-00

Unavailable

10

ARM,FR. LWR. RH.

1D9-F358A-00-00

Unavailable

11

BUSH

2HR-23526-00-00

$18.21

12

BOLT, FLANGE

90105-10267-00

$7.74

13

WASHER

5KM-22149-00-00

$6.58

14

NUT, SELF-LOCKING

90185-10012-00

$2.98

15

SHOCK ABSORBER ASSY

1D9-F3350-00-00

$149.38

16

NUT, SELF-LOCKING

90185-10012-00

$2.98

17

BOLT, FLANGE

90105-10841-00

$1.88

18

COVER, LOWER 1

5ND-F3123-00-00

$22.99

19

NUT, SPRING(4ES)

90183-06069-00

$5.93

20

BOLT, FLANGE

95817-06012-00

$1.49
