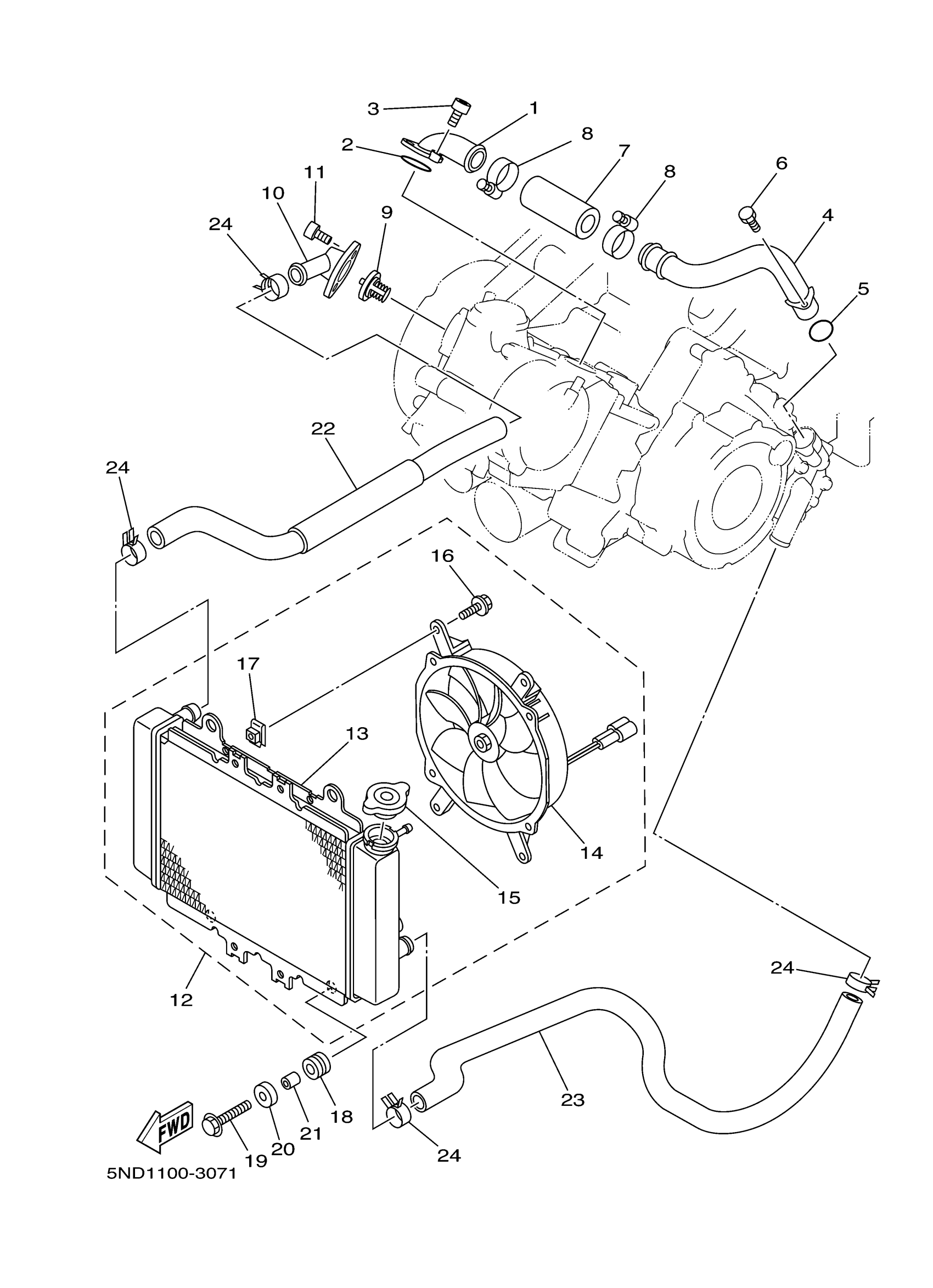

Yamaha YFM45FGSEW (GRIZZLY 450 SPECIAL SILVER EDITION) 1D9V 2007 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

5GH-12446-00-00

$46.48

2

O-RING

93210-33006-00

$4.85

3

BOLT,SOCKET

91317-06020-00

$2.11

4

PIPE 4

5GH-12484-00-00

$47.84

5

O-RING (716)

93210-18417-00

$5.56

6

BOLT,SOCKET

91317-06012-00

$6.17

7

PIPE 1

5GH-12481-00-00

$9.37

8

HOSE CLAMP ASSY

90450-32015-00

$15.23

9

THERMOSTAT

2TV-12411-01-00

$62.54

10

COVER, THERMOSTAT

5GH-12413-00-00

$62.78

11

BOLT,SOCKET

91317-06020-00

$2.11

12

RADIATOR ASSY WITH BLOWER

5ND-E2460-02-00

Unavailable

13

RADIATOR COMPONENT

5ND-E240A-02-00

Unavailable

14

BLOWER ASSY

5ND-E2405-02-00

$220.17

15

CAP, RADIATOR

5ND-E2462-00-00

$26.40

16

BOLT, BLOWER HOLDI

5ND-E2675-00-00

$0.66

17

PLATE

5ND-E2535-00-00

$11.29

18

GROMMET(2GH)

90480-12475-00

$6.68

19

BOLT, FLANGE

95817-06020-00

$2.69

20

WASHER

90209-06012-00

$4.71

21

COLLAR

90387-06113-00

$10.51

22

PIPE 2 (RADIATOR HOSE)

5ND-E2482-00-00

$45.57

23

PIPE 3

5ND-E2483-02-00

$33.77

24

CLIP

90467-26800-00

$3.00
