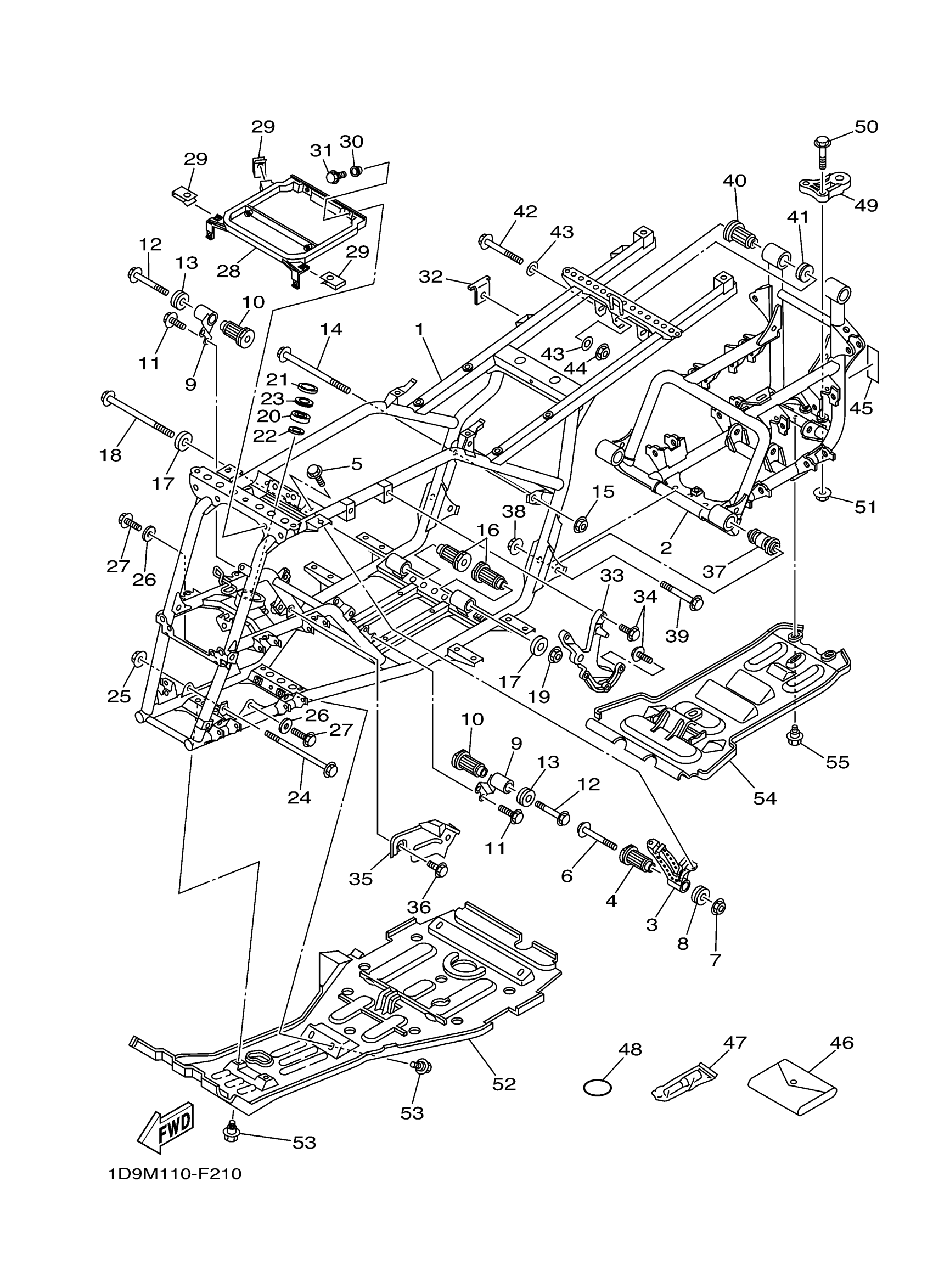

Yamaha YFM45FGSEW (GRIZZLY 450 SPECIAL SILVER EDITION) 1D9V 2007 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1D9-F1110-02-00

Unavailable

2

FRAME SUB COMP.

1D9-F111B-11-00

Unavailable

3

STAY, ENGINE 2

5ND-F1315-01-00

Unavailable

4

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

5

BOLT, FLANGE

95817-08012-00

$3.98

6

BOLT, FLANGE(6TA)

95817-10110-00

$5.20

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

8

DAMPER 2

5ND-F1486-00-00

$9.49

9

STAY, ENGINE 3

5ND-F1316-01-00

$29.37

10

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

11

BOLT, FLANGE

95817-08012-00

$3.98

12

BOLT, FLANGE

95817-10080-00

$5.00

13

DAMPER 2

5ND-F1486-00-00

$9.49

14

BOLT, WASHER BASED

90105-10055-00

$10.22

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

16

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

17

DAMPER

5ND-F1488-00-00

Unavailable

18

BOLT, WASHER BASED

90105-10055-00

$10.22

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

20

BEARING

93306-203YN-00

$10.34

21

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

22

OIL SEAL (25X36X8-334)

93102-25099-00

$10.57

23

HOLDER, BEARING

2GU-23872-00-00

$22.43

24

BOLT, HEXAGON BASED WASHER.

90105-10051-00

$11.26

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

26

WASHER, PLATE(47X)

90201-101J1-00

$6.17

27

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

28

STAY, FENDER 1

5ND-F1513-00-00

$10.38

29

NUT, SPRING(4ES)

90183-06069-00

$5.93

30

COLLAR (8G8)

90387-06681-00

$6.62

31

BOLT, FLANGE

95817-06012-00

$1.49

32

STAY, MUFFLER 2

5ND-F1446-01-00

Unavailable

33

ARM

5ND-F1585-01-00

$37.57

34

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

35

PROTECTOR 1

5ND-F2825-00-00

Unavailable

36

BOLT, FLANGE

95817-06010-00

$3.91

37

BUSH 1

5ND-F2123-00-00

Unavailable

38

NUT, U FLANGE

95607-12200-00

$5.43

39

BOLT, WASHER BASED(3XV)

90105-12660-00

$14.58

40

DAMPER, ENGINE MOUNT 3

1D9-E5336-00-00

Unavailable

41

DAMPER 2

5ND-F1486-00-00

$9.49

42

BOLT, WASHER BASED(4HM)

90105-10737-00

$9.82

43

WASHER, PLATE(47X)

90201-101J1-00

$6.17

44

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

45

LABEL 7

5ND-F151K-00-00

Unavailable

46

TOOL KIT

5ND-F8100-00-00

$19.57

47

GAUGE, AIR

1NV-2811A-01-00

$49.11

48

O-RING (583 OIL CLEANER)

93210-64297-00

$7.12

49

HOOK

1D9-F8488-01-00

$32.40

50

BOLT, WASHER BASED(3YR)

90105-10669-00

$8.51

51

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

52

GUARD, ENGINE 1

5ND-F147A-03-00

$66.94

53

BOLT(3KJ)

90109-063F1-00

$2.24

54

GUARD COMP.

1D9-F840K-01-00

Unavailable

55

BOLT(3KJ)

90109-063F1-00

$2.24
