Description

Price

1

COVER, CRANKCASE 1

5GH-15411-01-00

$271.46

2

GASKET, CRANKCASE COVER 1

5GH-15451-00-00

$20.58

3

PIN, DOWEL(3VD)

99530-10114-00

$2.23

4

BOLT, SMALL FLANGE

95027-06040-00

$2.48

5

CLAMP(4MX)

90465-06376-00

$7.08

6

BOLT, SMALL FLANGE

95027-06030-00

$3.65

7

PLATE

5GH-15113-00-00

$14.02

8

BEARING(55X)

93306-07801-00

$51.93

9

OIL SEAL

93102-28476-00

$20.15

10

WASHER, THRUST

21V-15719-00-00

$8.18

11

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.55

12

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$11.62

13

O-RING (2H9)

93210-14369-00

$5.80

14

COVER, CRANKCASE 3

5ND-15431-00-00

$122.88

15

SEAL, CRANKCASE

5GH-15379-00-00

$36.42

16

GROMMET (462)

90480-13018-00

$6.25

17

PLUG, DRAIN

5KM-15351-00-00

$6.72

18

BOLT, FLANGE

95817-06035-00

$5.37

19

BOLT, FLANGE

95817-06045-00

$6.18

20

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

$27.89

21

SPACER, ENGINE MOUNT

5GH-15317-00-00

$27.89

22

DUCT,AIR

5ND-E5471-01-00

$166.99

23

PIPE, DRAIN

5BF-1443E-00-00

$3.49

24

CLIP(62Y)

90467-15M14-00

$3.46

25

SEAL, CLEANER COVER

5ND-E5434-00-00

Unavailable

26

SEAL, AIR DUCT

5ND-E5472-01-00

$8.38

27

DUCT, AIR

1D9-E5473-00-00

Unavailable

28

SEAL, AIR DUCT

1D9-E5474-00-00

$17.69

29

HOSE CLAMP ASSY

90450-64004-00

$12.00

30

BOLT, FLANGE

95817-06014-00

$2.15

31

RIVET

90269-08813-00

$0.54

32

COVER 2

5ND-E5423-01-00

$15.22

33

BOLT, FLANGE(4DU)

95027-06014-00

$0.74

34

BOLT, SMALL FLANGE

95027-06035-00

$1.85

35

COVER

5ND-E5413-00-00

$6.72

36

GROMMET

90480-13014-00

$6.85

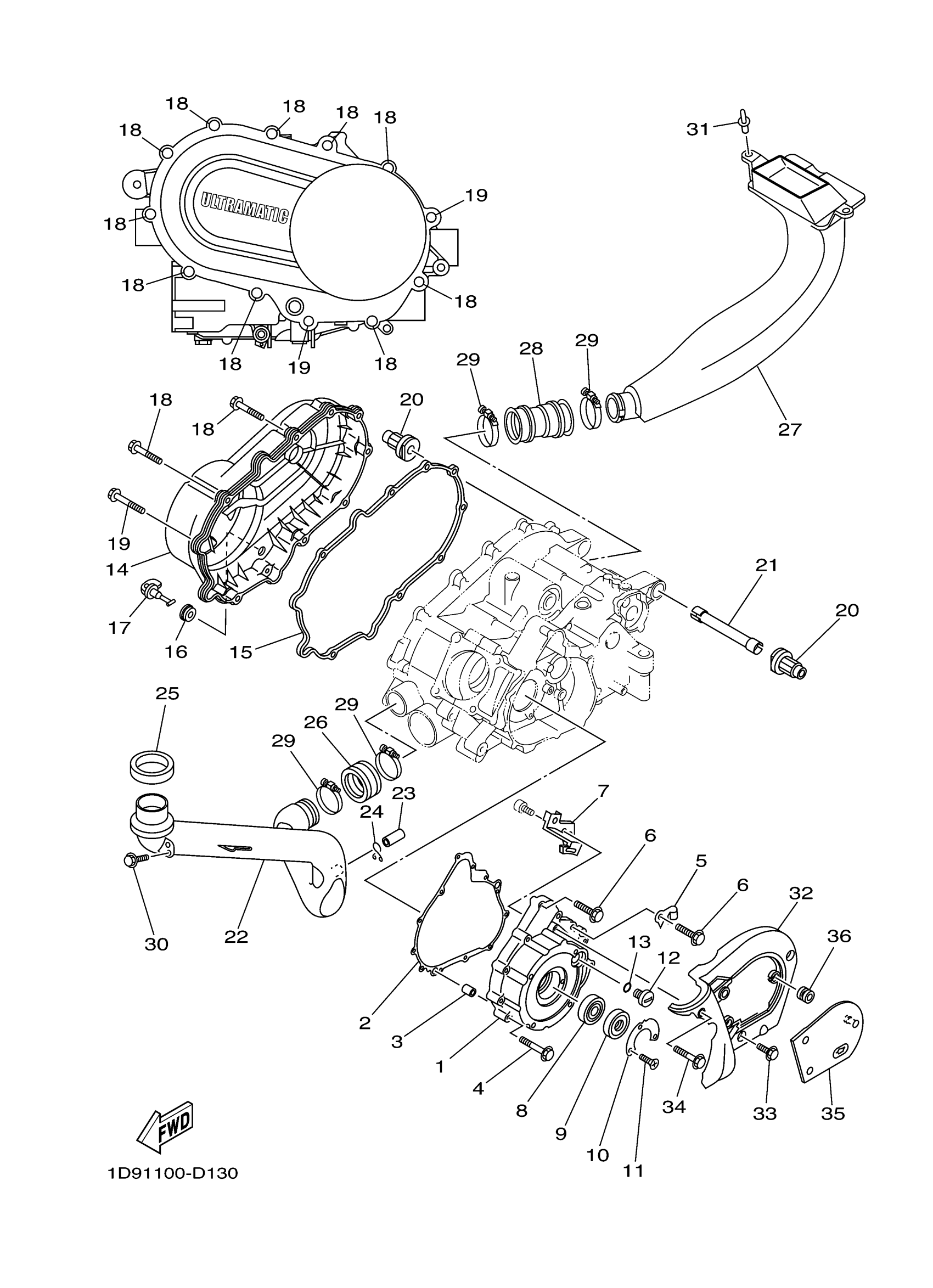

Yamaha YFM45FGSEW (GRIZZLY 450 SPECIAL SILVER EDITION) 1D9V 2007 CRANKCASE COVER 1 Diagram
