Description

Price

1

SHAFT, SECONDARY

5GH-17681-11-00

$312.94

2

BEARING (7K2)

93306-00423-00

$30.87

3

BEARING (5X5)

93306-20627-00

$66.08

4

COLLAR

90387-26001-00

$35.78

5

O-RING

93210-26001-00

$4.84

6

OIL SEAL

93102-42004-00

$26.25

7

DRIVE AXLE ASSY

5GH-17402-01-00

$124.52

8

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$108.80

9

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$152.08

10

GEAR, LOW WHEEL(45T)

5GH-17233-00-00

$110.86

11

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$28.79

12

WASHER, PLATE(8BB)

90201-250R9-00

$5.46

13

CIRCLIP (4L0)

93440-25084-00

$3.96

14

CLUTCH, DOG

1D9-17285-00-00

$72.86

15

SPROCKET, DRIVEN

5GH-17453-10-00

$83.86

16

WASHER PLATE 168171160000

90201-20278-00

$8.95

17

. BEARING

93310-420F2-00

$25.37

18

CIRCLIP (525)

93410-20038-00

$2.62

19

HOLDER

1D9-17286-00-00

$61.48

20

STOPPER

5GH-17473-00-00

$67.45

21

CIRCLIP (4L0)

93440-25084-00

$3.96

22

BEARING

93306-30212-00

$33.35

23

BEARING(3LD)

93306-20464-00

$34.40

24

CHAIN

94591-54038-00

$45.00

25

SHAFT

5ND-17523-00-00

$137.43

26

CIRCLIP (4L0)

93440-25084-00

$3.96

27

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

$141.37

28

BEARING

93311-42077-00

$47.12

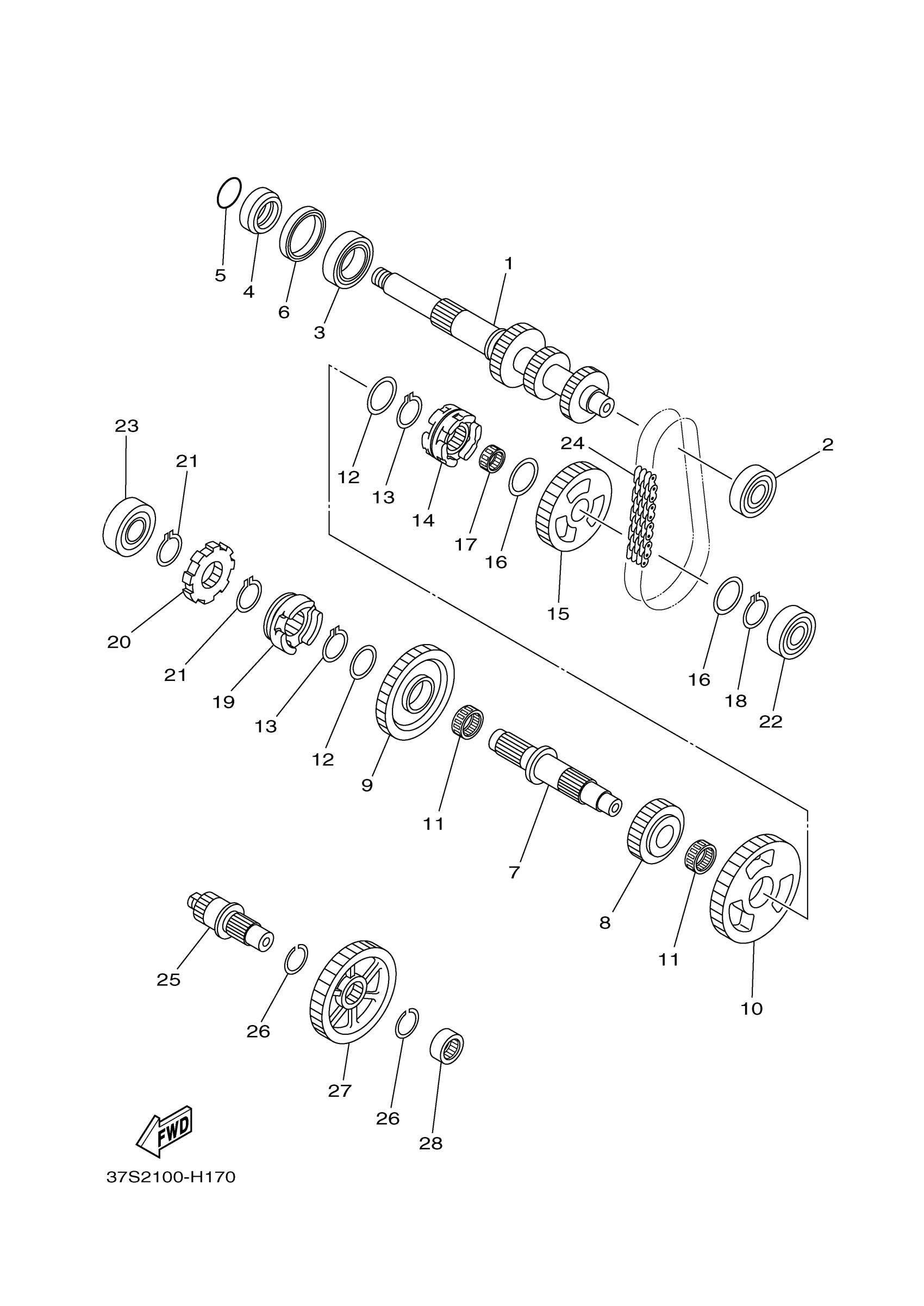

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 TRANSMISSION Diagram
