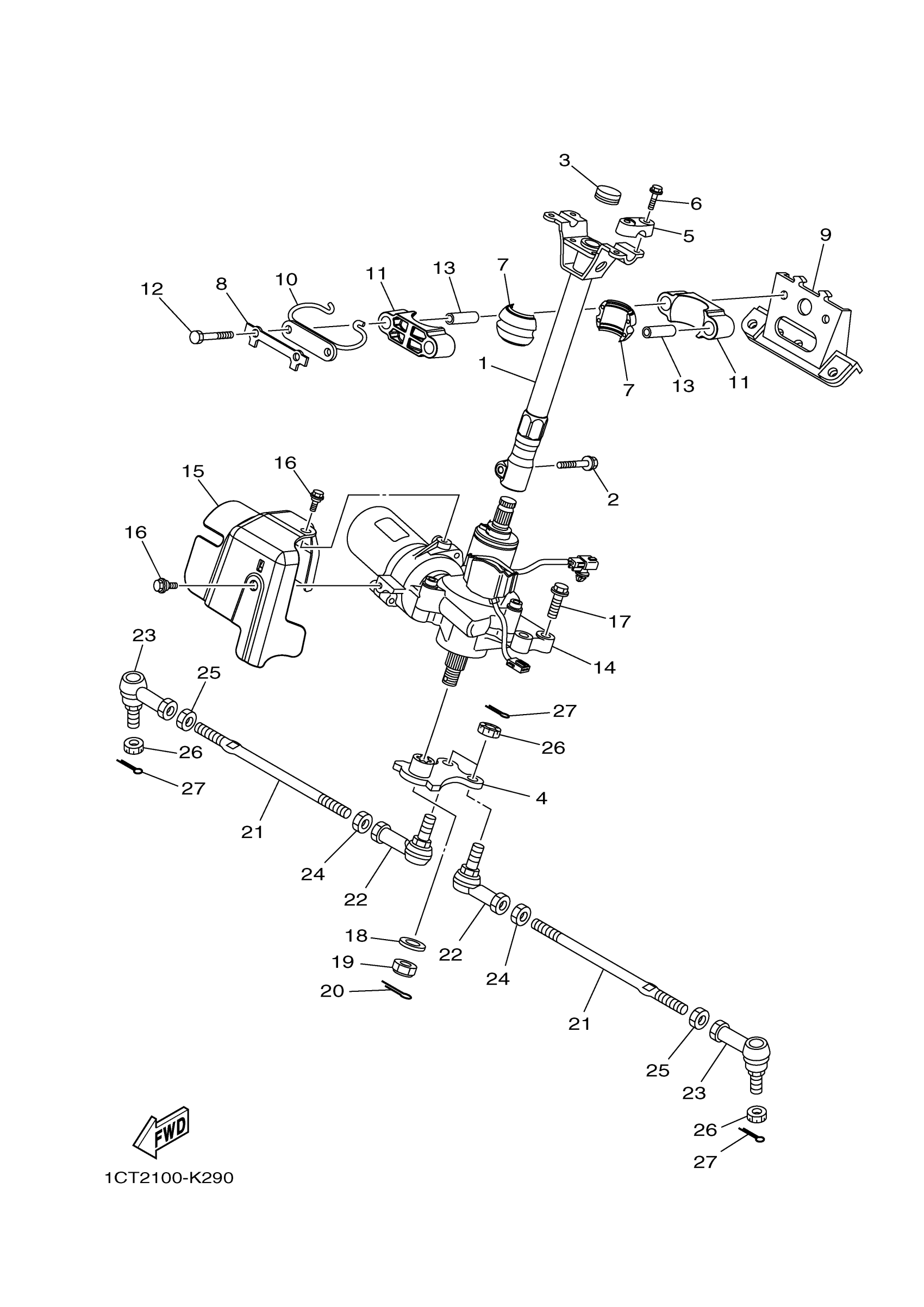

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1CT-F3813-00-00

$109.32

2

BOLT, WITH WASHER

90119-08109-00

$4.11

3

PLUG, TAPER(2HR)

90336-28053-00

$8.74

4

ARM, PITMAN

1CT-F3816-00-00

Unavailable

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

6

BOLT, FLANGE

95812-08030-00

$3.25

7

PLANE BEARING, STE

1CT-F3812-00-00

$5.46

8

WASHER, LOCK 1

1CT-F3894-00-00

$0.77

9

BRACKET, STEERING

1CT-F253F-00-00

$10.37

10

BRACKET, STEERING

1CT-F3868-00-00

$5.38

11

BRACKET, STEERING

1CT-F1957-00-00

$5.49

12

BOLT

97012-08080-00

$2.54

13

COLLAR, 2

1CT-F1545-01-00

$2.92

14

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

Unavailable

15

COVER, MOTOR

1CT-F38B6-01-00

$4.29

16

BOLT

90109-06172-00

$2.71

17

BOLT, FLANGE

95812-08030-00

$3.25

18

WASHER, PLATE

90201-16021-00

$7.49

19

NUT U

95612-16100-00

$14.89

20

PIN, COTTER

91490-20035-00

$3.25

21

ROD, TIE

37S-23831-00-00

$51.60

22

JOINT, UNIVERSAL 1

37S-23841-00-00

$78.58

23

JOINT, UNIVERSAL 2

37S-23845-00-00

$84.62

24

NUT 1

37S-23833-00-00

$3.29

25

NUT 2

37S-23834-00-00

$5.31

26

NUT, CASTLE

90171-12001-00

$2.85

27

PIN, COTTER

91490-25020-00

$2.94
