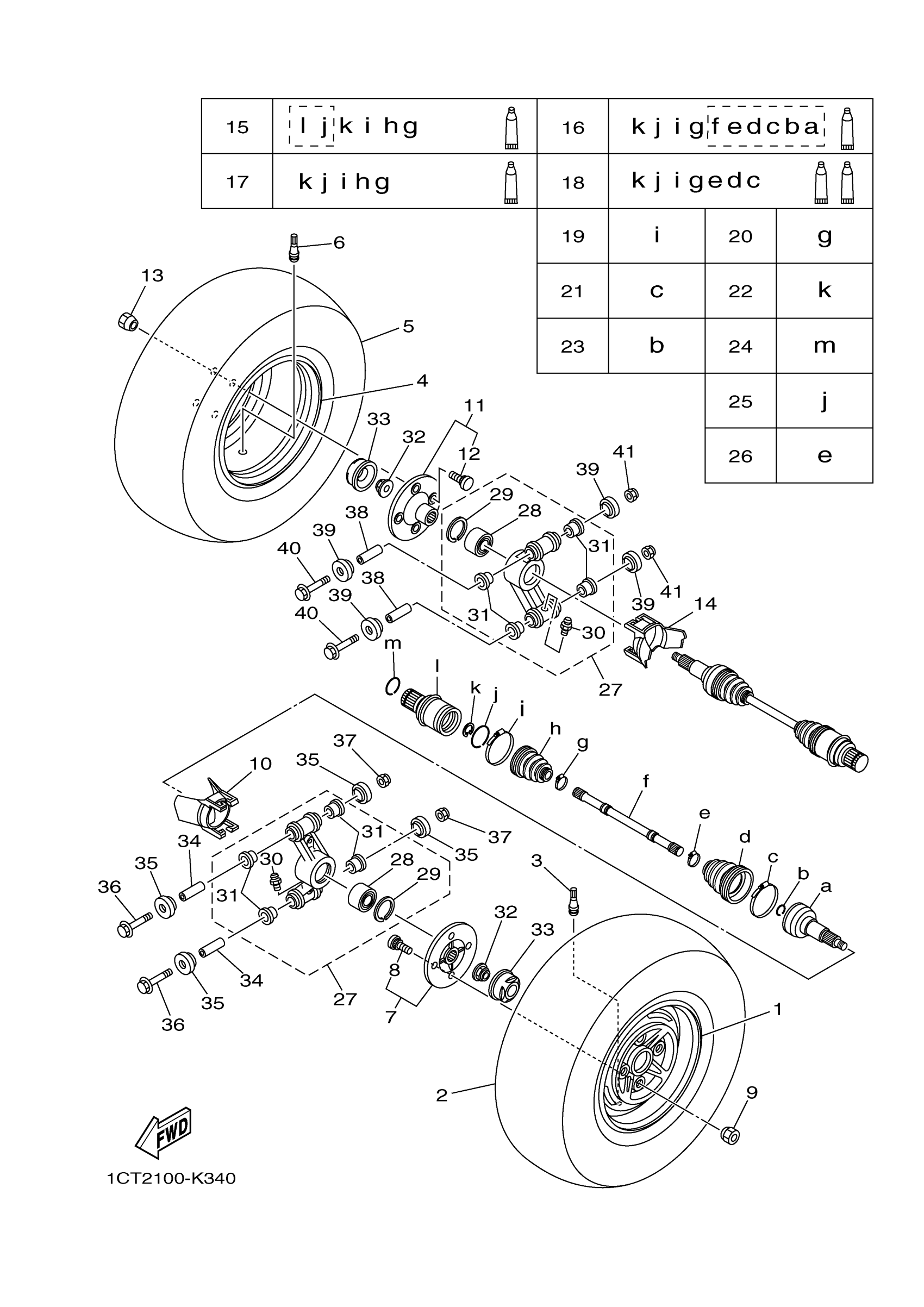

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 REAR WHEEL Diagram

#

Description
Price

1

REAR RIM (BLACK) 12 X 7.5

1D9-F5390-10-00

Unavailable

2

TIRE (AT25X10-12 MU14TL)

94110-12813-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

REAR RIM (BLACK) 12 X 7.5

1D9-F5390-10-00

Unavailable

5

TIRE (AT25X10-12 MU14TL)

94110-12813-00

Unavailable

6

VALVE, RIM

93900-00812-00

$7.49

7

HUB SUB-ASSY

1D9-F532E-01-00

$79.43

8

BOLT, SERRATION

90114-10014-00

$2.74

9

NUT

90179-10022-00

$3.25

10

GUARD, MUD

17S-F1629-00-00

$7.51

11

HUB SUB-ASSY

1D9-F532E-01-00

$79.43

12

BOLT, SERRATION

90114-10014-00

$2.74

13

NUT

90179-10022-00

$3.25

14

GUARD, MUD

17S-F1629-00-00

$7.51

15

DOUBLE OFF SET JOINT

1CT-2530V-01-00

Unavailable

16

BALL JOINT SET

1CT-2510F-02-00

Unavailable

17

BOOT SET(DOUBLE OFFSET JOINT)

1CT-2510H-01-00

Unavailable

18

BOOT SET (BALL JOINT)

1CT-2510G-01-00

Unavailable

19

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

20

BOOT BAND (SMALL)

3B4-2512G-00-00

$10.48

21

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

22

SNAP RING

3B4-2512J-00-00

$8.12

23

CIRCLIP

4KB-2512H-00-00

$6.46

24

CLIP, SPRING

3B4-2536E-00-00

$6.43

25

CIRCLIP

3B4-25182-00-00

$5.03

26

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

27

REAR KNUCKLE ASSY.

1D9-F532F-01-00

$231.91

28

BEARING

93305-00602-00

$98.89

29

CIRCLIP

99009-55500-00

$7.26

30

NIPPLE, GREASE (36X)

93700-06009-00

$9.89

31

BUSH, SOLID(2NL)

90381-17067-00

$12.49

32

NUT

90179-20016-00

$11.20

33

CAP, WHEEL

2P5-F512A-00-00

$4.58

34

SPACER

5KM-23448-00-00

$15.04

35

COVER, THRUST 1

3JN-23517-00-00

$3.92

36

BOLT, FLANGE

90105-10185-00

$5.86

37

NUT, SELF-LOCKING

90185-10012-00

$2.98

38

SPACER

5KM-23448-00-00

$15.04

39

COVER, THRUST 1

3JN-23517-00-00

$3.92

40

BOLT, FLANGE

90105-10185-00

$5.86

41

NUT, SELF-LOCKING

90185-10012-00

$2.98
