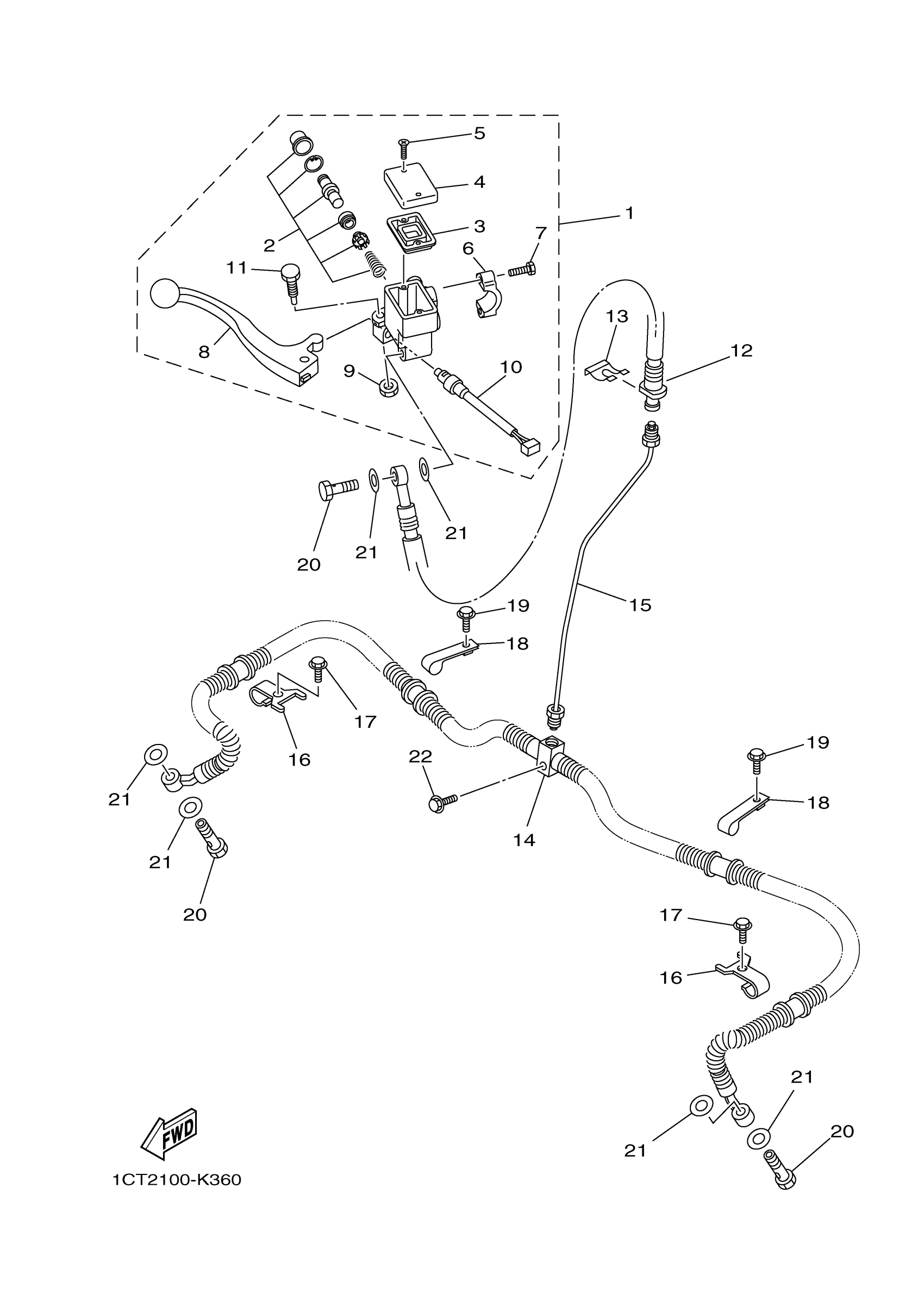

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 FRONT MASTER CYLINDER Diagram

Description

Price

MASTER CYLINDER ASSY

5KM-2583T-10-00

$239.02

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$21.77

CAP, RESERVOIR

5LP-25852-02-00

$20.17

SCREW, FLAT

98707-04012-00

$1.43

BRACKET, MASTER CYLINDER

5GM-25867-10-00

$20.68

BOLT, FITTING

5MV-25833-00-00

$5.75

LEVER 2

5KM-83922-00-00

$32.07

NUT, FLANGE(7NB)

95780-06500-00

$1.91

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$56.22

BOLT, LEVER

1FK-2589F-10-00

$8.12

HOSE, BRAKE 1

5ND-F5872-13-00

Unavailable

CIRCLIP

2GU-25866-00-00

$8.70

HOSE,BRAKE 2

1CT-F5873-10-00

Unavailable

PIPE, BRAKE

1CT-F5871-00-00

$5.98

HOLDER, BRAKE HOSE

1D9-F5875-01-00

$2.15

BOLT, FLANGE

95817-06012-00

$1.49

BAND

5ND-F3192-01-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.49

BOLT, UNION

90401-10015-00

$9.89

WASHER, PLATE(481)

90201-10118-00

$2.91

BOLT, FLANGE

95817-06025-00

$1.46
