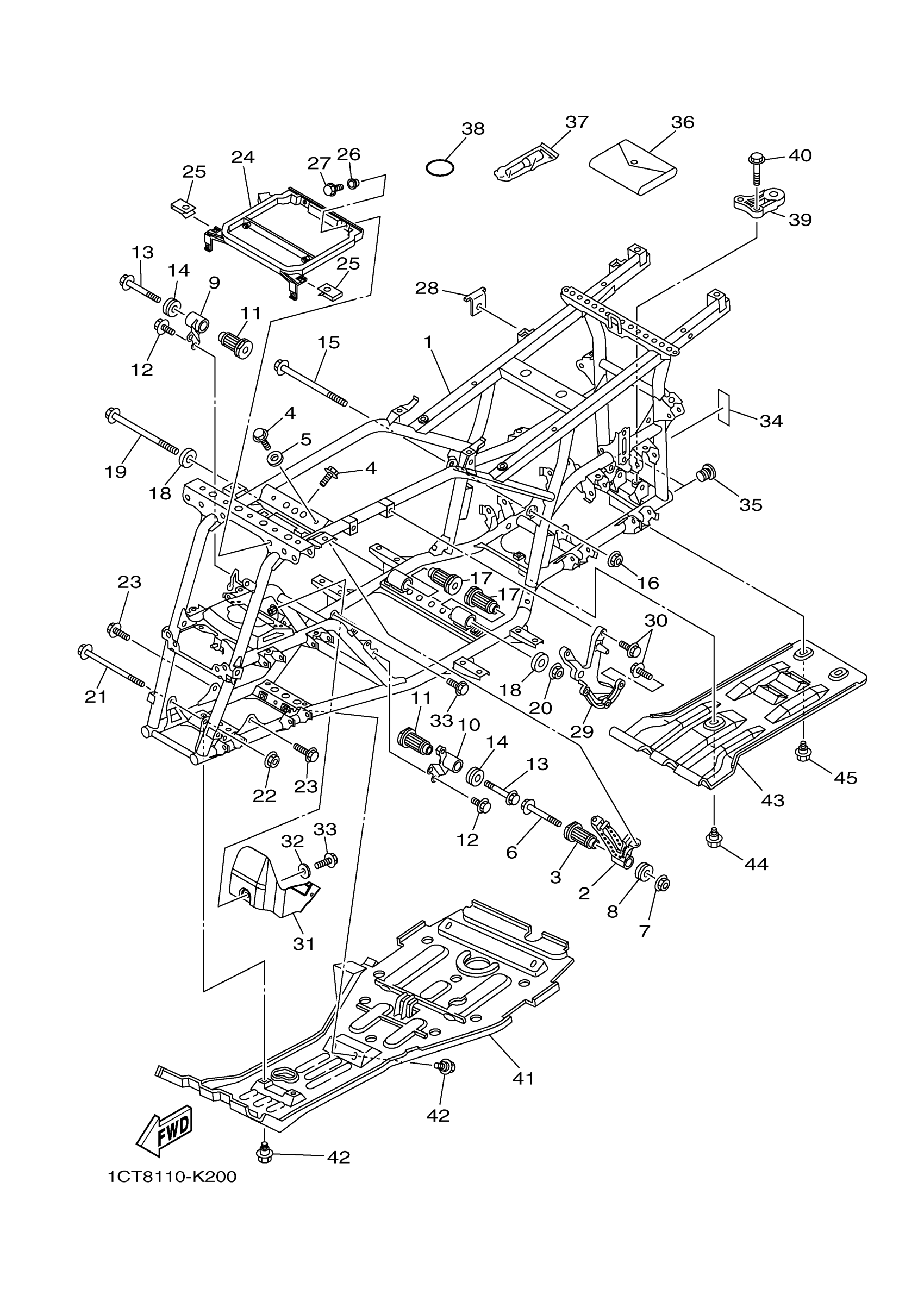

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1CT-F1110-00-00

Unavailable

2

STAY, ENGINE 2

5ND-F1315-01-00

Unavailable

3

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

4

BOLT, FLANGE

95812-08020-00

$1.69

5

WASHER, PLATE

90201-08055-00

$6.18

6

BOLT, FLANGE

95812-10110-00

$5.86

7

NUT, S/L FLANGE

95602-10200-00

$2.29

8

DAMPER 2

5ND-F1486-00-00

$9.49

9

STAY, ENGINE 3

1CT-F1316-00-00

$10.48

10

STAY, ENGINE 3

1CT-F1317-00-00

$10.48

11

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

12

BOLT, FLANGE

95817-08012-00

$3.98

13

BOLT, FLANGE

95812-10080-00

$7.18

14

DAMPER 2

5ND-F1486-00-00

$9.49

15

BOLT, FLANGE

90105-10284-00

$7.25

16

NUT, S/L FLANGE

95602-10200-00

$2.29

17

DAMPER, ENGINE MOUNT 3

5ND-E5336-00-00

Unavailable

18

DAMPER

5ND-F1488-00-00

Unavailable

19

BOLT, FLANGE

90105-10284-00

$7.25

20

NUT, S/L FLANGE

95602-10200-00

$2.29

21

BOLT, FLANGE

90105-10230-00

$5.98

22

NUT, SELF-LOCKING

90185-10011-00

$3.92

23

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

24

STAY, FENDER 1

5ND-F1513-00-00

$10.38

25

NUT, SPRING(4ES)

90183-06069-00

$5.93

26

COLLAR (8G8)

90387-06681-00

$6.62

27

BOLT, FLANGE

95817-06012-00

$1.49

28

STAY, MUFFLER 2

5ND-F1446-01-00

Unavailable

29

ARM

5ND-F1585-01-00

$37.57

30

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

31

PROTECTOR 1

1CT-F2825-00-00

$4.74

32

WASHER, PLATE

90201-06078-00

$5.48

33

BOLT, FLANGE

95817-06012-00

$1.49

34

LABEL 7

37S-F151K-00-00

$7.34

35

CAP

1CT-F8349-00-00

Unavailable

36

TOOL KIT

1CT-F8100-00-00

$11.18

37

GAUGE, AIR

1NV-2811A-01-00

$49.11

38

O-RING (583 OIL CLEANER)

93210-64297-00

$7.12

39

HOOK

1D9-F8488-01-00

$32.40

40

BOLT, FLANGE

95814-10040-00

$3.69

41

GUARD, ENGINE 1

5ND-F147A-03-00

$66.94

42

BOLT

90109-06172-00

$2.71

43

GUARD COMP.

1CT-F840K-10-00

Unavailable

44

BOLT

90109-06172-00

$2.71

45

BOLT

90109-06202-00

$2.46
