Description

Price

1

CROSS JOINT COMP. 3

1D9-46108-01-00

$231.25

2

BEARING

93399-99948-00

$47.47

3

CIRCLIP (4X7)

93440-20088-00

$5.10

4

SPIDER

5GT-46187-00-00

$93.45

5

BEARING

93399-99948-00

$47.47

6

CIRCLIP (4X7)

93440-20088-00

$5.10

7

REAR AXLE GEAR CASE ASSY

1CT-G6101-11-00

$785.99

8

HOUSING, DRIVE SHA

1CT-G6151-01-00

$212.18

9

COVER

1CT-G2134-01-00

$150.63

10

HOUSING, BEARING

1CT-G6152-01-00

$87.57

11

GASKET, COVER

1CT-G631E-00-00

$18.21

12

GSKT., CASE

1CT-G631A-00-00

$17.51

13

. STOPPER, RING GEAR

1CT-G6156-00-00

$15.08

14

. BREATHER

1CT-E5371-00-00

$13.20

15

OIL SEAL

1CT-E511A-10-00

$34.16

16

GASKET

1CT-E1195-00-00

$5.35

17

ROLLER

1CT-E3362-00-00

$3.68

18

GASKET

1CT-G6819-00-00

$3.89

19

BOLT

1CT-E2157-00-00

$3.95

20

BOLT

1CT-E2228-00-00

$2.78

21

. NUT, ADJUSTING

1CT-E3275-00-00

$2.99

22

COUPLING

1CT-G6126-00-00

$49.12

23

NUT

1CT-G4583-00-00

$83.78

24

YOKE, JOINT

1CT-G6186-00-00

$152.05

25

WASHER 1

1CT-E1557-00-00

$21.57

26

NUT, LOCK

1CT-E6377-00-00

$4.09

27

OIL SEAL

1CT-E511B-10-00

$31.49

28

SHIM, PINION

1CT-E7531-00-00

$8.23

29

BEARING 1

1CT-E1428-00-00

$103.85

30

BEARING 2

1CT-E1429-00-00

$63.02

31

OIL RING, PISTON

1CT-E1614-00-00

$9.97

32

SHIM

1CT-G5567-00-00

$13.74

33

SHIM

1CT-G5577-00-00

$12.92

34

BEARING

1CT-E142A-00-00

$48.86

35

BEARING 4

1CT-E142B-00-00

$84.88

36

RING GEAR SET

1CT-G61A0-01-00

$981.99

37

INSERT, PLATE

1CT-F5345-00-00

$57.81

38

PLATE 1

1CT-F539F-00-00

$21.97

39

PLATE, GUIDE

1CT-F5689-00-00

$118.66

40

SPRING, RETURN

1CT-G6277-00-00

$3.88

41

. SPRING

1CT-F476L-00-00

$10.68

42

. BOLT, LOCK PLATE

1CT-G2478-00-00

Unavailable

43

CAMSHAFT

1CT-F5351-00-00

$49.57

44

. WASHER

1CT-E2289-00-00

Unavailable

45

. LEVER, CAMSHAFT

1CT-F5355-00-00

$14.97

46

. END, CABLE 3

1CT-F6374-00-00

$10.65

47

WASHER 2

1CT-G1298-00-00

$6.68

48

RING,SEAL

1CT-E4005-10-00

$12.22

49

WASHER, 1

1CT-G1297-00-00

$3.69

50

. WASHER 2

1CT-E1558-00-00

$0.63

51

. GUIDE 1

1CT-E469U-00-00

$0.25

52

. PIN, STRAIGHT

1CT-E319L-00-00

$2.91

53

BALL

1CT-E7051-00-00

$3.54

54

. BOLT 2

1CT-E22A1-00-00

$3.72

55

. CLIP

1CT-E1486-00-00

$3.20

56

SPRING, TENSION(J45)

90506-14397-00

$3.74

57

CROSS JOINT COMP. 2

1CT-46107-00-00

$192.45

58

BEARING

93399-99948-00

$47.47

59

CIRCLIP (4X7)

93440-20088-00

$5.10

60

SPIDER

5GT-46187-00-00

$93.45

61

BEARING

93399-99948-00

$47.47

62

CIRCLIP (4X7)

93440-20088-00

$5.10

63

SEAL 1

5GT-46136-00-00

$15.04

64

HOSE (L900)

90445-078C4-00

Unavailable

65

CLIP (1J7)

90467-07029-00

$1.92

66

BOLT, FLANGE

90105-10844-00

$3.57

67

NUT, S/L FLANGE

95602-10200-00

$2.29

68

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

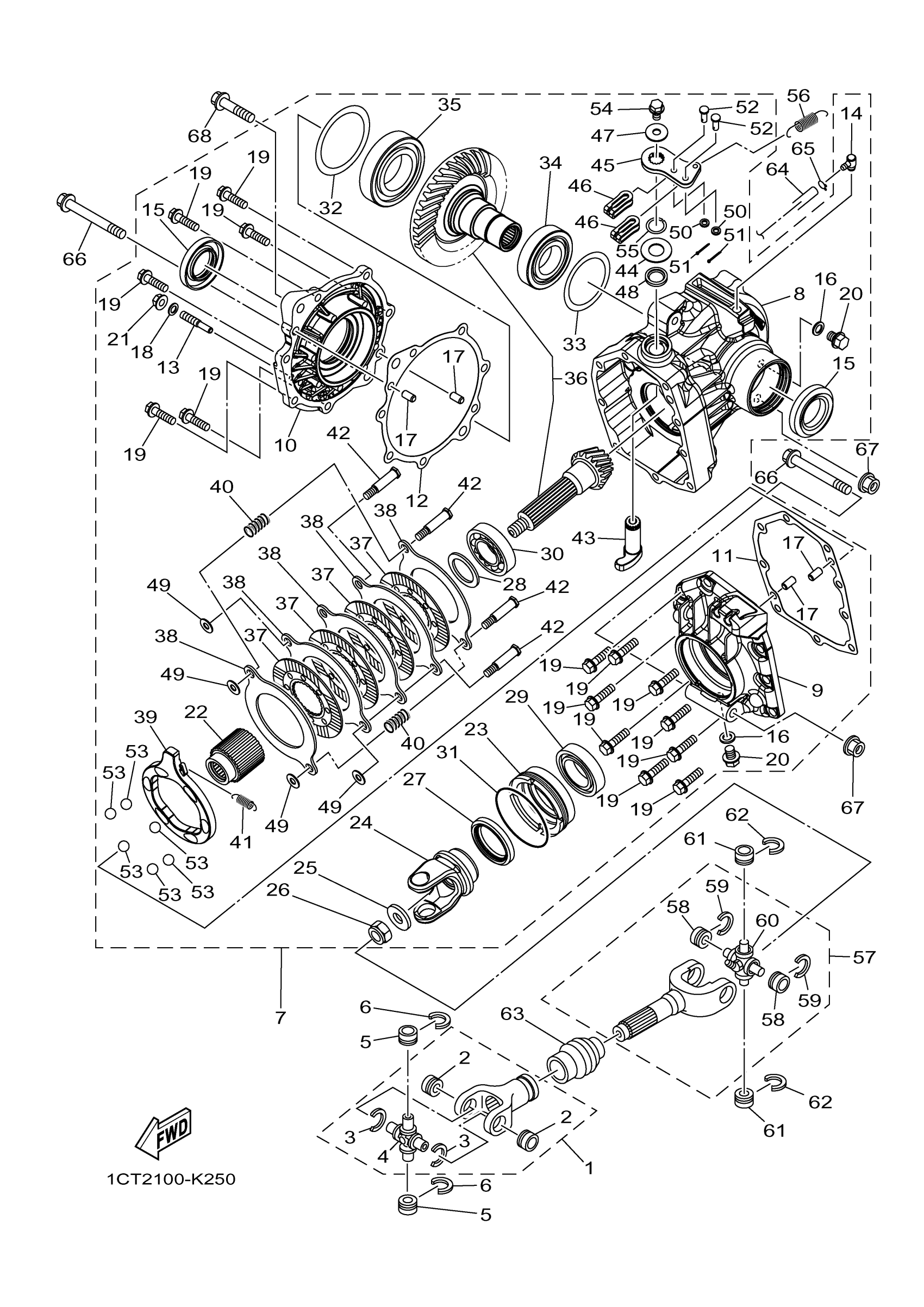

Yamaha YFM45FGPHB (GRIZZLY 450 EPS 4WD HUNTER) 1CTF 2012 DRIVE SHAFT Diagram

. BOLT, LOCK PLATE

. WASHER

HOSE (L900)
