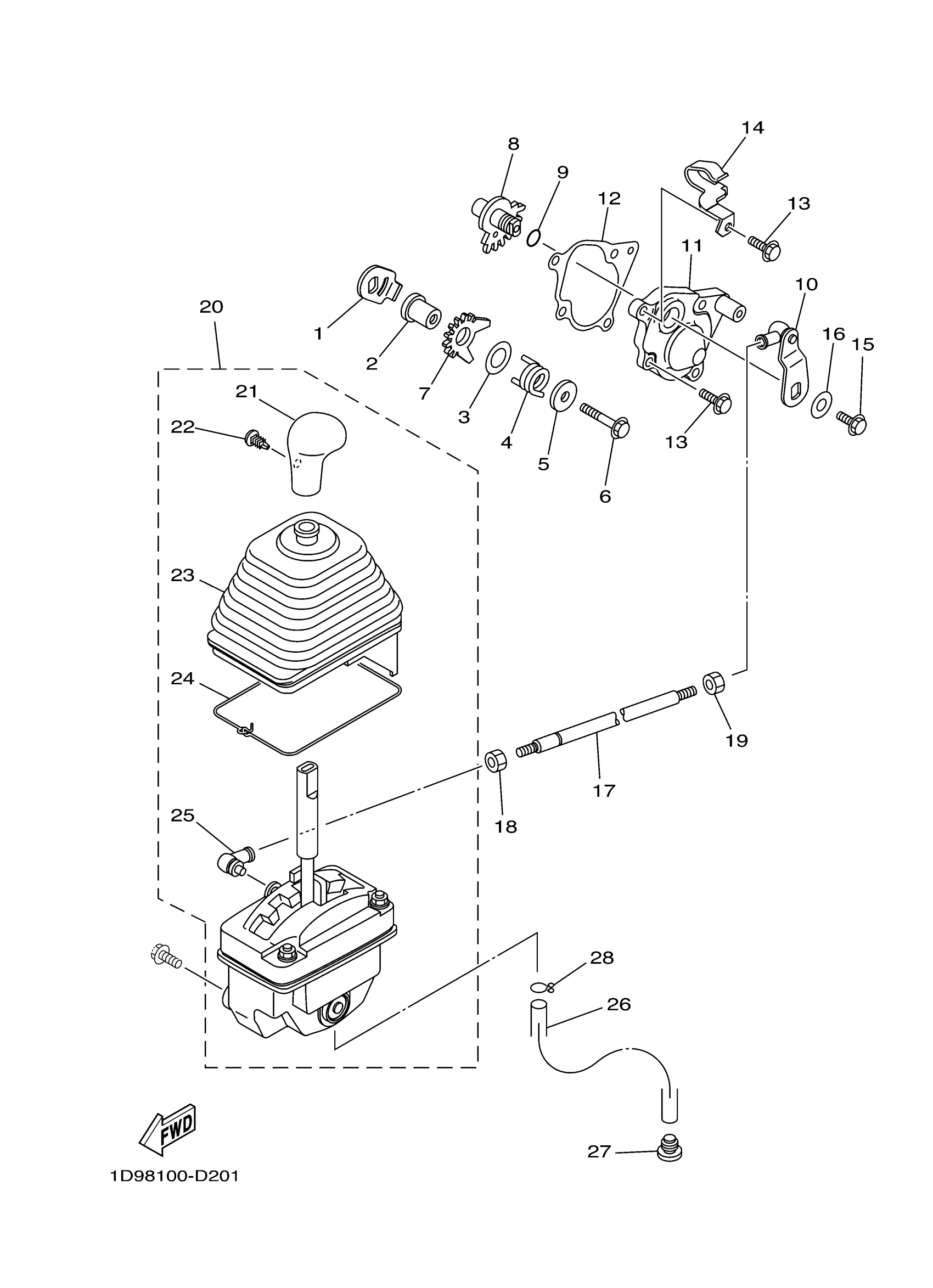

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$19.46

2

COLLAR

90387-0613B-00

$7.26

3

WASHER, PLATE

90201-13013-00

$6.29

4

SPRING, TORSION(1YW)

90508-35764-00

$4.20

5

WASHER, PLATE

90201-06M02-00

$2.23

6

BOLT, FLANGE

95817-06035-00

$5.37

7

LEVER

5KM-18191-00-00

$22.14

8

SHAFT

5GH-18197-00-00

$67.22

9

O-RING (P95)

93210-11073-00

$5.78

10

SHIFT GUIDE COMP.

5GH-18104-00-00

$53.15

11

COVER, SHIFT SHAFT

5GH-18129-01-00

$43.03

12

GASKET, LEVER STOP

5GH-18146-00-00

$4.74

13

BOLT(7U8)

97080-06020-00

$3.87

14

CLAMP(3JD)

90465-08336-00

$9.31

15

BOLT, FLANGE

95817-06016-00

$1.49

16

WASHER, PLATE

90201-06M02-00

$2.23

17

ROD, SHIFT

5GH-18115-01-00

$38.80

18

NUT(1KT)

90170-08358-00

$6.68

19

NUT, HEXAGON SMALL

95317-08700-00

$7.05

20

SHIFTER ASSY

5GH-18300-04-00

Unavailable

21

KNOB, SHIFT LEVER

5GH-18174-00-00

$39.51

22

RIVET(81E)

90269-05055-00

$7.02

23

BOOTS, SEALING

5GH-18131-00-00

$77.86

24

STOPPER, RUBBER

5GH-18617-00-00

$12.27

25

JOINT 2

1KT-18157-00-00

$50.97

26

HOSE

90446-16001-00

Unavailable

27

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

28

CLIP (806-24358-00)

90467-15012-00

$4.71
