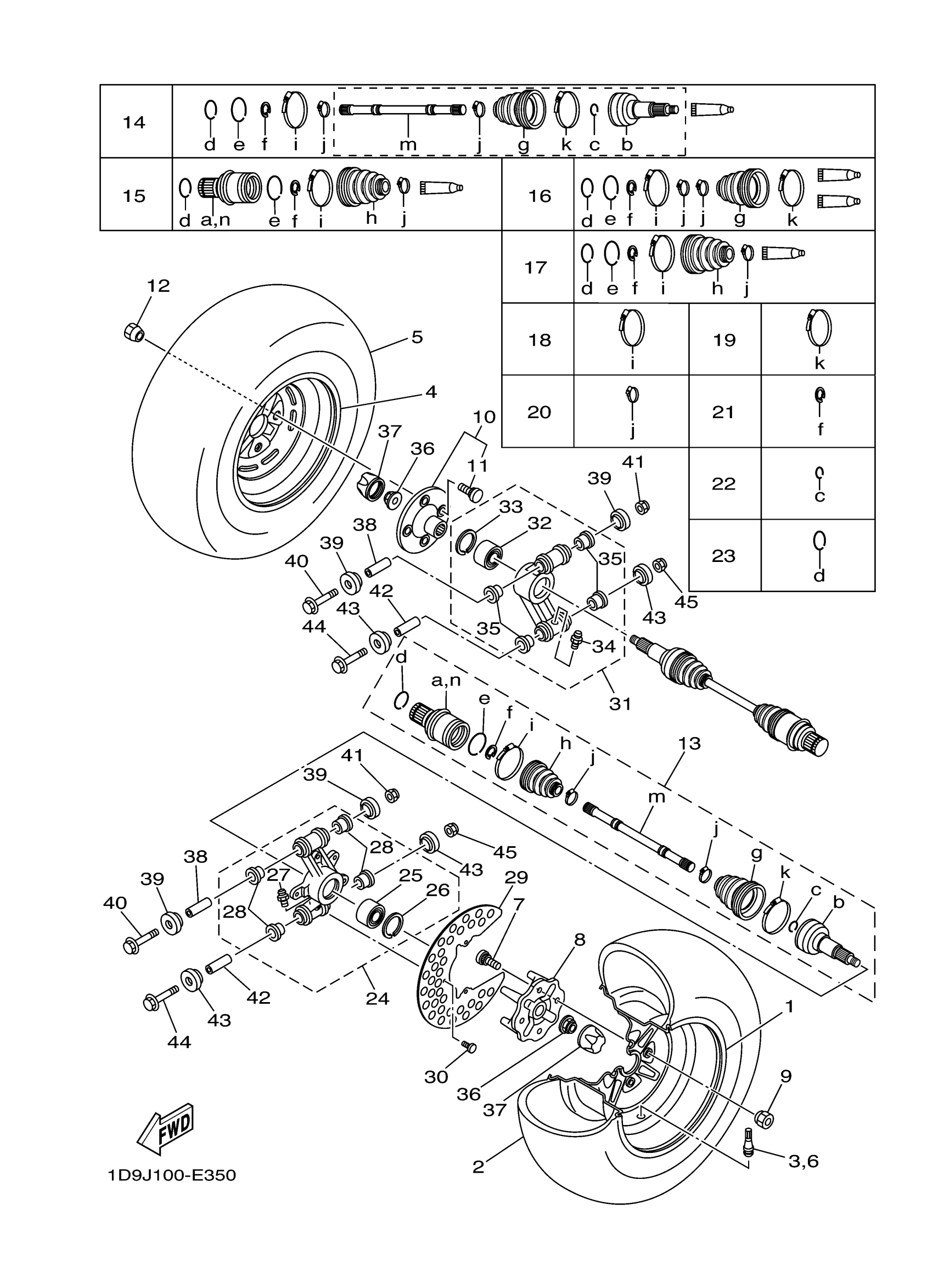

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR RIM (BLACK) 12 X 7.5

1D9-F5390-10-00

Unavailable

2

TIRE (AT25X10-12 M980)

94110-12809-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

REAR RIM (BLACK) 12 X 7.5

1D9-F5390-10-00

Unavailable

5

TIRE (AT25X10-12 M980)

94110-12809-00

Unavailable

6

VALVE, RIM

93900-00812-00

$7.49

7

BOLT, SERRATION

90114-10014-00

$2.74

8

HUB, REAR

1D9-F5311-01-00

Unavailable

9

NUT(2HR)

90179-10540-00

$3.92

10

HUB SUB-ASSY

1D9-F532E-01-00

$79.43

11

BOLT, SERRATION

90114-10014-00

$2.74

12

NUT(2HR)

90179-10540-00

$3.92

13

REAR DRIVE SHAFT ASSY

1D9-F531H-03-00

Unavailable

14

BALL JOINT SET

1D9-F510F-00-00

Unavailable

15

DOUBLE OFF SET JOINT

1D9-F510J-01-00

Unavailable

16

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$60.08

17

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$57.53

18

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

19

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

20

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

21

SNAP RING

2HR-2512J-00-00

$5.71

22

CIRCLIP

4KB-2512H-00-00

$6.46

23

CLIP, SPRING

5KM-2536E-10-00

$8.38

24

REAR KNUCKLE ASSY

1D9-F530F-01-00

Unavailable

25

BEARING

93305-00602-00

$98.89

26

CIRCLIP

99009-55500-00

$7.26

27

NIPPLE, GREASE (36X)

93700-06009-00

$9.89

28

BUSH, SOLID(2NL)

90381-17067-00

$12.49

29

PROTECTOR, DISC BRAKE

1D9-F5718-00-00

Unavailable

30

SCREW(3LD)

90149-06280-00

$4.43

31

REAR KNUCKLE ASSY.

1D9-F532F-01-00

$231.91

32

BEARING

93305-00602-00

$98.89

33

CIRCLIP

99009-55500-00

$7.26

34

NIPPLE, GREASE (36X)

93700-06009-00

$9.89

35

BUSH, SOLID(2NL)

90381-17067-00

$12.49

36

NUT

90179-20016-00

$11.20

37

CAP, WHEEL

5GT-2512A-00-00

$8.70

38

SPACER

5KM-23448-00-00

$15.04

39

COVER, THRUST 1

3JN-23517-00-00

$3.92

40

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

41

NUT, SELF-LOCKING

90185-10012-00

$2.98

42

SPACER

5KM-23448-00-00

$15.04

43

COVER, THRUST 1

3JN-23517-00-00

$3.92

44

BOLT, WASHER BASED(2NL)

90105-10480-00

$6.91

45

NUT, SELF-LOCKING

90185-10012-00

$2.98
