Description

Price

1

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

2

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT(2HR)

90179-10540-00

$3.92

5

CAP, WHEEL

5GT-2512A-00-00

$8.70

6

DRIVE SHAFT ASSY

5ND-F518F-00-00

Unavailable

7

BALL JOINT SET

5ND-F510F-00-00

Unavailable

8

BOOT SET (BALL JOINT)

5KM-2510G-00-00

$76.57

9

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2510H-00-00

$80.35

10

DOUBLE OFF SET JOINT

5KM-2510J-00-00

Unavailable

11

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

12

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

13

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

14

SNAP RING

2HR-2512J-00-00

$5.71

15

CIRCLIP

4KB-2512H-00-00

$6.46

16

CLIP, DRIVE SHAFT

5KM-45531-10-00

$6.55

17

STEERING KNUCKLE (L)

1D9-F3501-03-00

Unavailable

18

BEARING

93306-006Y2-00

$23.74

19

OIL SEAL

93106-38046-00

$14.64

20

OIL SEAL

93106-38047-00

$24.03

21

COLLAR

90387-30008-00

$20.02

22

BALL JOINT 1

37S-23549-01-00

$67.35

23

CIRCLIP

93410-32075-00

$6.97

24

HUB,FRONT

5ND-F5111-30-00

$62.33

25

BOLT, SERRATION

90114-10014-00

$2.74

26

O-RING(47X)

93210-27666-00

$5.53

27

WASHER, PLATE

90201-16804-00

$9.78

28

NUT, CASTLE

90171-16001-00

$19.52

29

PIN, COTTER

91490-30030-00

$7.15

30

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

31

TIRE (AT25X8-12 M979)

94108-12812-00

Unavailable

32

VALVE, RIM

93900-00812-00

$7.49

33

NUT(2HR)

90179-10540-00

$3.92

34

CAP, WHEEL

5GT-2512A-00-00

$8.70

35

DRIVE SHAFT ASSY

5ND-F518G-00-00

Unavailable

36

BALL JOINT SET

5ND-F510F-00-00

Unavailable

37

BOOT SET (BALL JOINT)

5KM-2510G-00-00

$76.57

38

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2510H-00-00

$80.35

39

DOUBLE OFF SET JOINT

5KM-2510J-10-00

$370.40

40

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$15.29

41

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

42

BOOT BAND (SMALL)

3HN-2512G-01-00

$10.43

43

SNAP RING

2HR-2512J-00-00

$5.71

44

CIRCLIP

4KB-2512H-00-00

$6.46

45

CIRCLIP(2HR)

93450-22119-00

$5.10

46

STEERING,KNUCKLE (R)

1D9-F3502-03-00

Unavailable

47

BEARING

93306-006Y2-00

$23.74

48

OIL SEAL

93106-38046-00

$14.64

49

OIL SEAL

93106-38047-00

$24.03

50

COLLAR

90387-30008-00

$20.02

51

BALL JOINT 1

37S-23549-01-00

$67.35

52

CIRCLIP

93410-32075-00

$6.97

53

HUB,FRONT

5ND-F5111-30-00

$62.33

54

BOLT, SERRATION

90114-10014-00

$2.74

55

O-RING(47X)

93210-27666-00

$5.53

56

WASHER, PLATE

90201-16804-00

$9.78

57

NUT, CASTLE

90171-16001-00

$19.52

58

PIN, COTTER

91490-30030-00

$7.15

59

RING, WHEEL 1 (LEF

1D9-F514A-00-00

$19.72

60

BOLT, FLANGE

95817-06012-00

$1.49

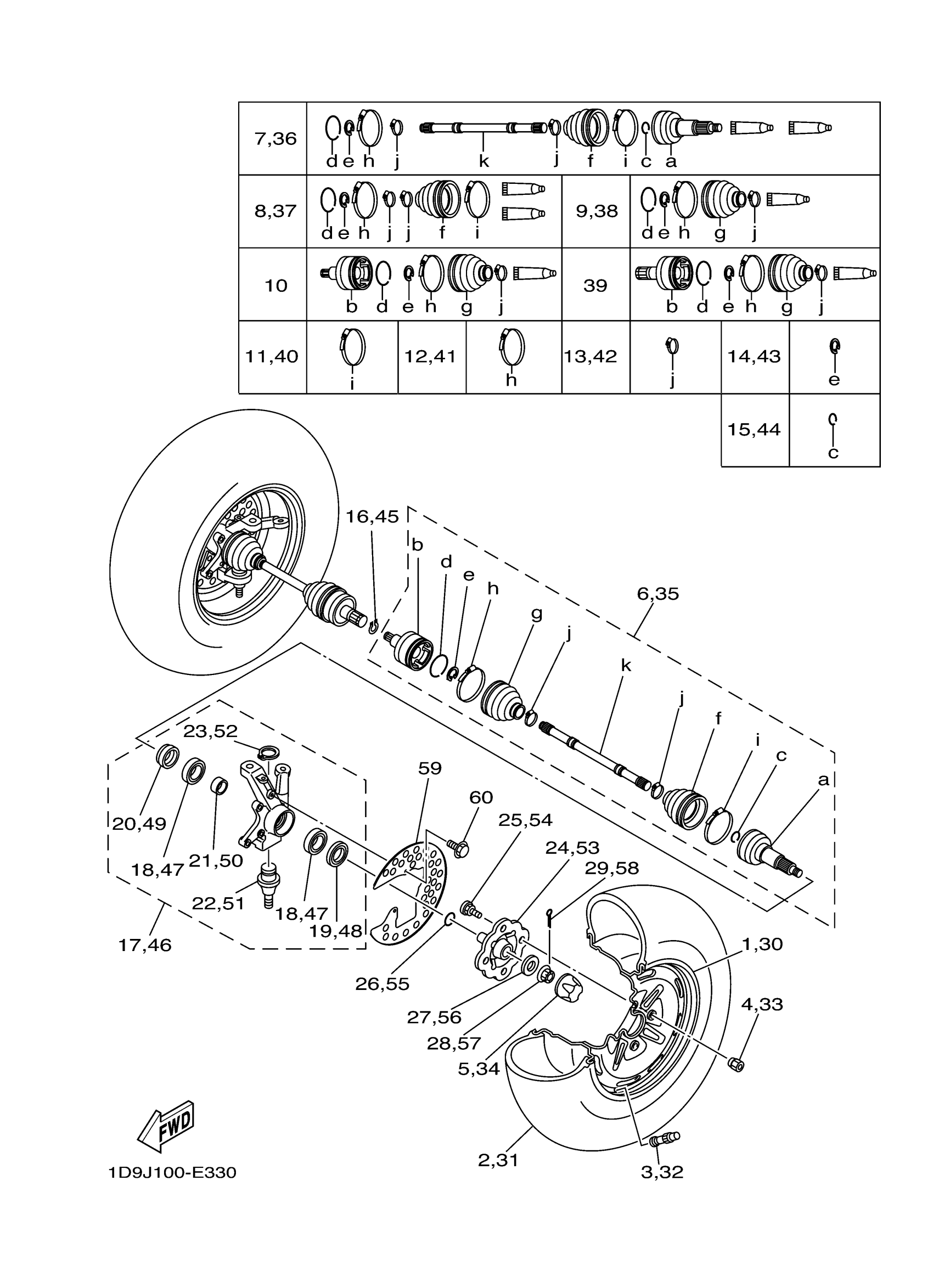

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 FRONT WHEEL Diagram

FRONT RIM (BLACK) 12 X 6

TIRE (AT25X8-12 M979)

DRIVE SHAFT ASSY

BALL JOINT SET

DOUBLE OFF SET JOINT

BOOT BAND (DOUBLE OFFSET JOINT

STEERING KNUCKLE (L)

FRONT RIM (BLACK) 12 X 6

TIRE (AT25X8-12 M979)

DRIVE SHAFT ASSY

BALL JOINT SET

BOOT BAND (DOUBLE OFFSET JOINT

STEERING,KNUCKLE (R)
