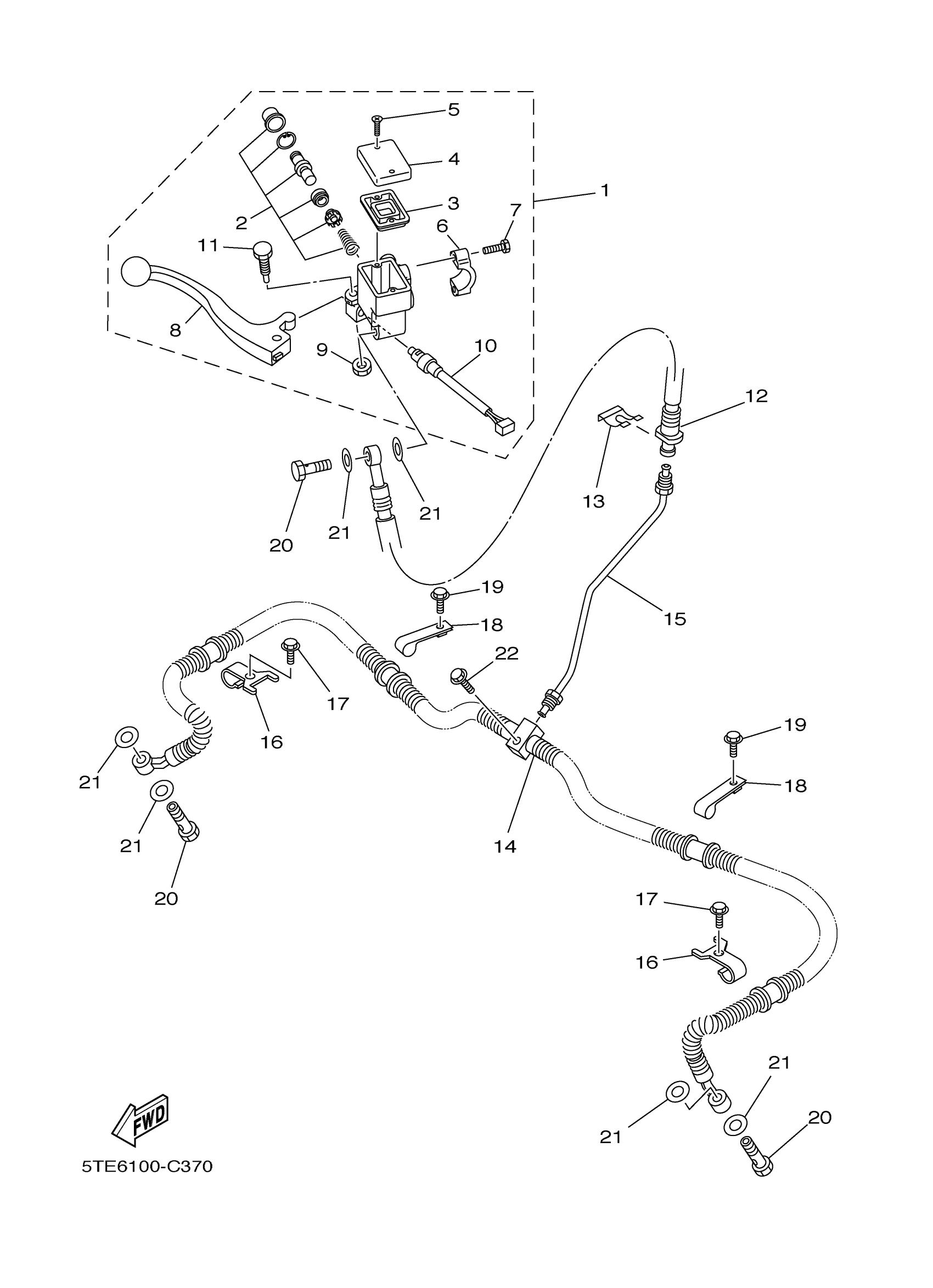

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 FRONT MASTER CYLINDER Diagram

Description

Price

MASTER CYLINDER ASSY

5KM-2583T-01-00

$269.27

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$21.77

CAP, RESERVOIR

5JX-25852-01-00

$22.20

SCREW, FLAT

98707-04012-00

$1.43

BRACKET, MASTER CYLINDER

5GH-25867-00-00

$21.94

BOLT

5EB-26332-00-00

$6.14

LEVER 2

5KM-83922-00-00

$32.07

NUT, SELF-LOCKING

95617-06100-00

$2.32

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$56.22

BOLT, LEVER

1FK-2589F-00-00

$4.74

HOSE, BRAKE 1

5ND-F5872-13-00

Unavailable

CIRCLIP

2GU-25866-00-00

$8.70

HOSE,BRAKE 2

1CT-F5873-10-00

Unavailable

PIPE, BRAKE

5ND-F5871-00-00

$14.86

HOLDER, BRAKE HOSE

1D9-F5875-01-00

$2.15

BOLT, FLANGE

95817-06012-00

$1.49

BAND

5ND-F3192-01-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.49

BOLT, UNION(3GM)

90401-10159-00

$8.85

WASHER, PLATE(481)

90201-10118-00

$2.91

BOLT, FLANGE

95817-06025-00

$1.46
