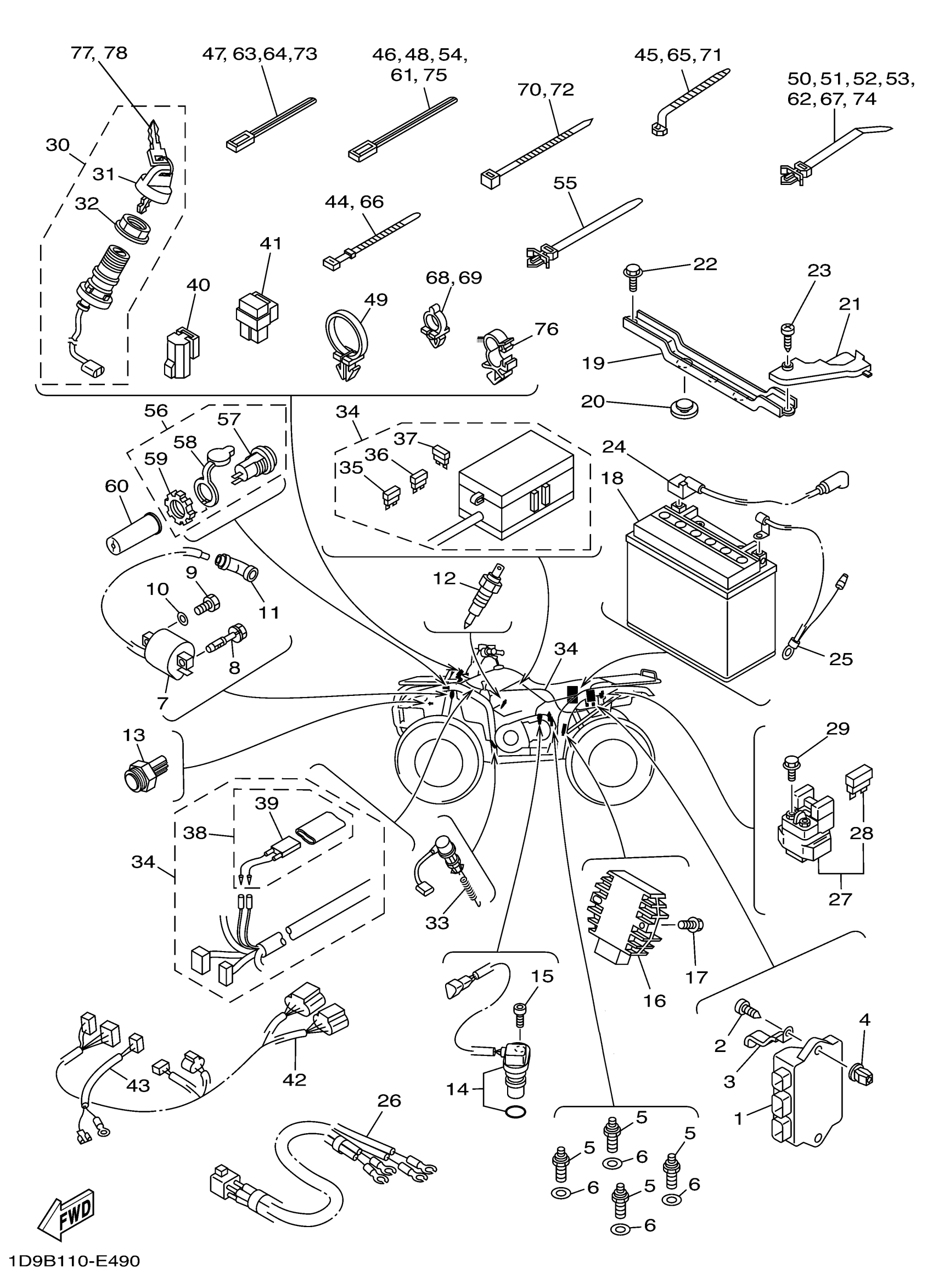

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5ND-85540-10-00

Unavailable

2

SCREW, TAPPING

97707-60420-00

$6.46

3

CLAMP

90462-06016-00

$4.34

4

PLUG(4BP)

90338-08226-00

$1.63

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

6

GASKET (1KH,1.0T)

90430-10148-00

$4.74

7

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

8

BOLT (21V)

90109-06723-00

$6.71

9

BOLT, HEXAGON

97017-06020-00

$2.55

10

WASHER(6TA)

92907-06600-00

$0.78

11

PLUG CAP ASSY

3NS-82370-00-00

$31.58

12

THERMO SWITCH ASSY

5KM-82560-00-00

$79.19

13

THERMO SWITCH ASSY

5ND-82560-11-00

Unavailable

14

SENSOR, SPEED

3C2-83755-11-00

$113.06

15

BOLT,SOCKET

91317-06016-00

$1.16

16

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

17

BOLT, FLANGE

95817-06020-00

$2.69

18

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

19

BRACKET, BATTERY

5ND-H2128-02-00

$5.23

20

PAD, BATTERY

371-82121-00-00

$7.91

21

COVER, LEAD WIRE

5ND-H2119-00-00

Unavailable

22

BOLT, FLANGE

95817-06020-00

$2.69

23

SCREW, TRUSS TAP.

97707-60016-00

$1.02

24

WIRE, PLUS LEAD

5ND-H2115-00-00

$12.11

25

WIRE, MINUS LEAD

5ND-H2116-00-00

$18.57

26

WIRE, LEAD

5ND-82541-01-00

$39.06

27

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

$107.44

28

FUSE (12V 30A)

1AE-82151-00-00

$6.22

29

BOLT, FLANGE

95022-06008-00

$6.26

30

MAIN SWITCH ASSY

5ND-82510-01-00

$56.22

31

CAP, KEY

3HN-82579-00-00

$12.27

32

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

33

STOP SWITCH ASSY

4KB-82530-11-00

$47.60

34

WIRE HARNESS ASSY

1D9-82590-10-00

$441.09

35

FUSE (15A)

67F-82151-50-00

$3.71

36

. FUSE (10A)

67F-82151-40-00

$6.67

37

. FUSE (3A)

67F-82151-30-00

$4.89

38

CIRCUIT BREAKER ASSY

5ND-82180-00-00

$34.94

39

THERMO SWITCH ASSY

5ND-82560-00-00

$33.38

40

RELAY ASSY (29U-93)

29U-81950-93-00

$67.77

41

RELAY ASSY

5DM-81950-01-00

$24.72

42

WIRE, SUB LEAD

5ND-82309-00-00

$144.74

43

WIRE, SUB LEAD

5KM-82509-10-00

$14.04

44

CLAMP

90464-51800-00

$11.86

45

CLAMP

90464-12830-00

$1.02

46

CLAMP(JN6)

90464-40825-00

$1.77

47

CLAMP(JN6)

90464-31827-00

$2.63

48

CLAMP(JN6)

90464-40825-00

$1.77

49

CLAMP

90464-19815-00

$1.60

50

CLAMP

90464-25800-00

Unavailable

51

CLAMP

90464-25800-00

Unavailable

52

CLAMP

90464-25800-00

Unavailable

53

CLAMP

90464-25800-00

Unavailable

54

CLAMP(JN6)

90464-40825-00

$1.77

55

CLAMP

90464-38800-00

$4.28

56

TERMINAL ASSY

5FU-H1920-10-00

$42.51

57

. TERMINAL

5FU-H1925-10-00

Unavailable

58

COVER

5FU-H1942-10-00

Unavailable

59

NUT

5FU-H191B-10-00

$1.28

60

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

61

CLAMP(JN6)

90464-40825-00

$1.77

62

CLAMP

90464-25800-00

Unavailable

63

CLAMP(JN6)

90464-31827-00

$2.63

64

CLAMP(JN6)

90464-31827-00

$2.63

65

CLAMP

90464-12830-00

$1.02

66

CLAMP

90464-51800-00

$11.86

67

CLAMP

90464-25800-00

Unavailable

68

CLAMP

90464-12830-00

$1.02

69

CLAMP

90464-12830-00

$1.02

70

CLAMP

90464-48800-00

$3.54

71

CLAMP

90464-12830-00

$1.02

72

CLAMP

90464-48800-00

$3.54

73

CLAMP(JN6)

90464-31827-00

$2.63

74

CLAMP

90464-25800-00

Unavailable

75

CLAMP(JN6)

90464-40825-00

$1.77

76

CLAMP

90464-16006-00

$8.31

77

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

78

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
