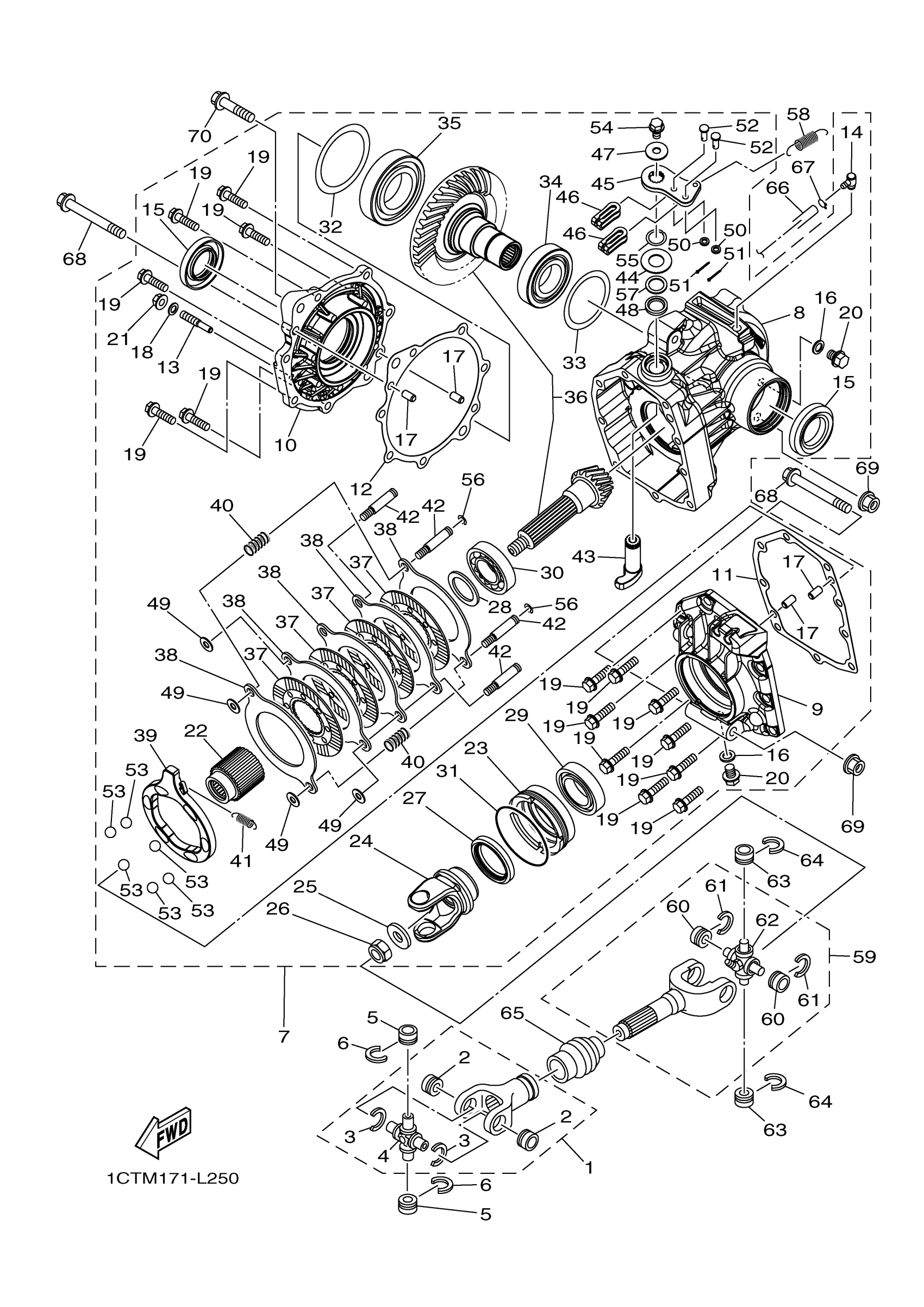

Yamaha YFM45FGDGR (GRIZZLY 450 4WD) 1CUD 2013 DRIVE SHAFT Diagram

#

Description
Price

1

CROSS JOINT COMP. 3

1D9-46108-01-00

$226.58

2

BEARING

93399-99948-00

$46.14

3

CIRCLIP (4X7)

93440-20088-00

$5.27

4

SPIDER

5GT-46187-00-00

$89.27

5

BEARING

93399-99948-00

$46.14

6

CIRCLIP (4X7)

93440-20088-00

$5.27

7

REAR AXLE GEAR CASE ASSY

1CT-G6101-11-00

$594.68

8

HOUSING, DRIVE SHA

1CT-G6151-01-00

Unavailable

9

COVER

1CT-G2134-01-00

$148.35

10

HOUSING, BEARING

1CT-G6152-01-00

Unavailable

11

GASKET, COVER

1CT-G631E-00-00

$17.41

12

GSKT., CASE

1CT-G631A-00-00

$6.80

13

. STOPPER, RING GEAR

1CT-G6156-00-00

$10.92

14

. BREATHER

1CT-E5371-00-00

$3.24

15

OIL SEAL

1CT-E511A-10-00

$33.47

16

GASKET

1CT-E1195-00-00

Unavailable

17

ROLLER

1CT-E3362-00-00

Unavailable

18

GASKET

1CT-G6819-00-00

Unavailable

19

BOLT

1CT-E2157-00-00

Unavailable

20

BOLT

1CT-E2228-00-00

Unavailable

21

. NUT, ADJUSTING

1CT-E3275-00-00

$1.49

22

COUPLING

1CT-G6126-00-00

Unavailable

23

NUT

1CT-G4583-00-00

Unavailable

24

YOKE, JOINT

1CT-G6186-00-00

Unavailable

25

WASHER 1

1CT-E1557-00-00

Unavailable

26

NUT, LOCK

1CT-E6377-00-00

Unavailable

27

OIL SEAL

1CT-E511B-10-00

Unavailable

28

SHIM, PINION

1CT-E7531-00-00

Unavailable

29

BEARING 1

1CT-E1428-00-00

Unavailable

30

BEARING 2

1CT-E1429-00-00

Unavailable

31

OIL RING, PISTON

1CT-E1614-00-00

Unavailable

32

SHIM

1CT-G5567-00-00

Unavailable

33

SHIM

1CT-G5577-00-00

Unavailable

34

BEARING

1CT-E142A-00-00

Unavailable

35

BEARING 4

1CT-E142B-00-00

Unavailable

36

RING GEAR SET

1CT-G61A0-01-00

Unavailable

37

INSERT, PLATE

1CT-F5345-00-00

Unavailable

38

PLATE 1

1CT-F539F-00-00

Unavailable

39

PLATE, GUIDE

1CT-F5689-00-00

Unavailable

40

SPRING, RETURN

1CT-G6277-00-00

Unavailable

41

. SPRING

1CT-F476L-00-00

$10.20

42

BOLT,LOCK PLATE

1CT-G2478-10-00

Unavailable

43

CAMSHAFT

1CT-F5351-00-00

Unavailable

44

. WASHER

1CT-E2289-10-00

$10.50

45

. LEVER, CAMSHAFT

1CT-F5355-00-00

$11.85

46

. END, CABLE 3

1CT-F6374-00-00

$10.48

47

WASHER 2

1CT-G1298-00-00

Unavailable

48

RING,SEAL

1CT-E4005-10-00

Unavailable

49

WASHER, 1

1CT-G1297-00-00

Unavailable

50

. WASHER 2

1CT-E1558-00-00

$0.62

51

. GUIDE 1

1CT-E469U-00-00

$0.36

52

. PIN, STRAIGHT

1CT-E319L-00-00

$2.06

53

BALL

1CT-E7051-00-00

Unavailable

54

. BOLT 2

1CT-E22A1-00-00

$2.06

55

. CLIP

1CT-E1486-00-00

$1.86

56

CLIP

1CT-G5319-00-00

Unavailable

57

. SHIM

1CT-E3147-00-00

$1.08

58

SPRING, TENSION(J45)

90506-14397-00

Unavailable

59

CROSS JOINT COMP. 2

1CT-46107-00-00

Unavailable

60

BEARING

93399-99948-00

$46.14

61

CIRCLIP (4X7)

93440-20088-00

$5.27

62

SPIDER

5GT-46187-00-00

$89.27

63

BEARING

93399-99948-00

$46.14

64

CIRCLIP (4X7)

93440-20088-00

$5.27

65

SEAL 1

5GT-46136-00-00

Unavailable

66

HOSE (L900)

90445-078C4-00

Unavailable

67

CLIP (1J7)

90467-07029-00

Unavailable

68

BOLT, FLANGE

90105-10844-00

$3.52

69

NUT, S/L FLANGE

95602-10200-00

Unavailable

70

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable
