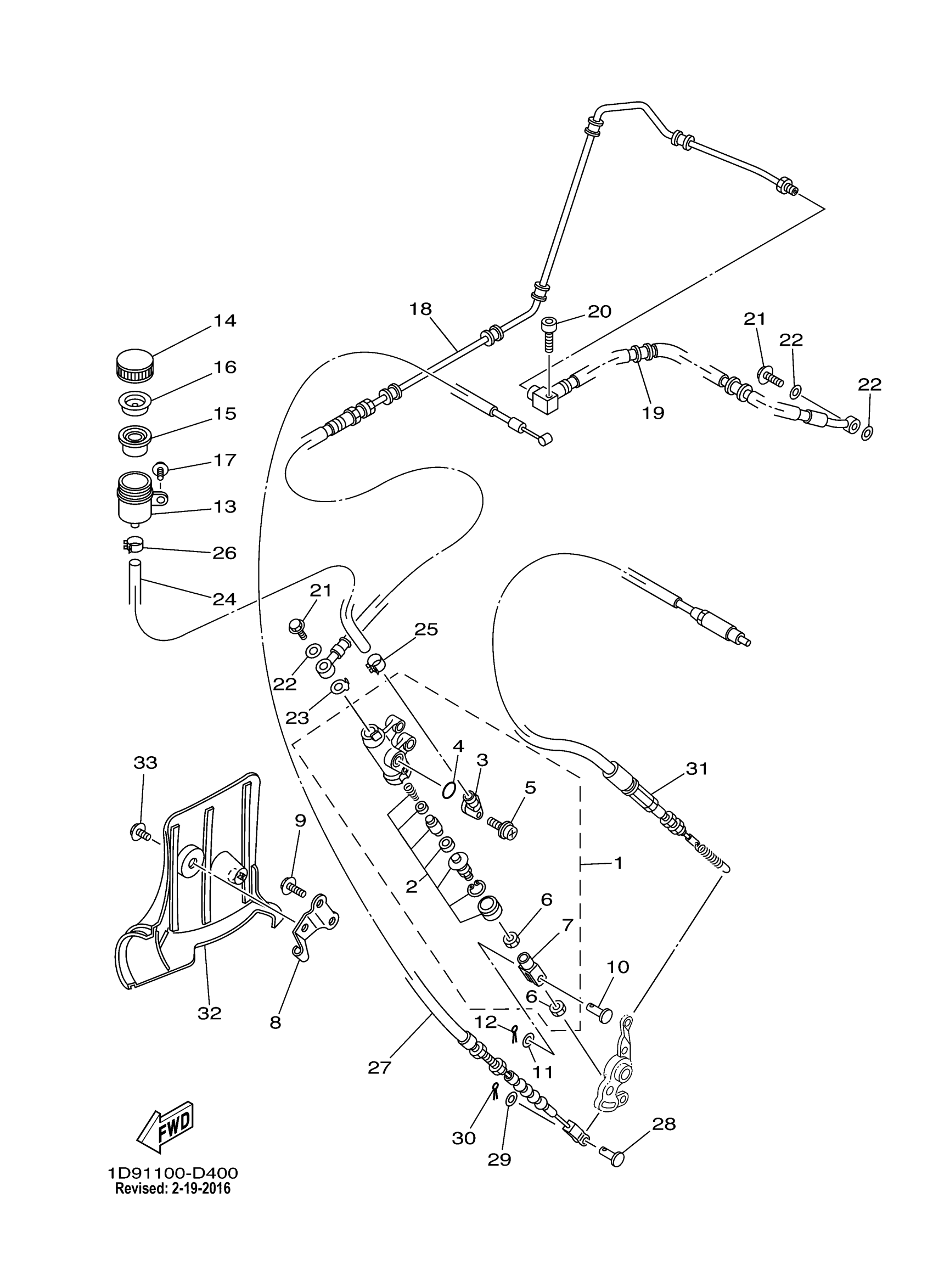

Yamaha YFM45FABGGV (KODIAK 450 4WD HUNTER_OUTDOORSMAN) 1D9F0 2006 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5KM-2583V-00-00

$186.87

2

CYLINDER KIT, MASTER

5BE-W0042-00-00

$73.06

3

JOINT

31A-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$5.50

5

SCREW, WITH WASHER

3GM-2589H-00-00

$6.08

6

NUT, HEXAGON SMALL

95317-08700-00

$6.71

7

JOINT

2YK-27222-00-00

$18.91

8

HOLDER, WIRE

5ND-F637G-00-00

Unavailable

9

BOLT, FLANGE(4LN)

95817-08025-00

$5.87

10

PIN W/HOLE 307181180000

90240-08013-00

$5.27

11

WASHER, PLATE 1562722600

90201-08083-00

$5.98

12

PIN, COTTER

91490-16020-00

$5.46

13

TANK, RESERVOIR

2VN-25894-00-00

$17.39

14

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

15

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$18.70

16

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

Unavailable

18

HOSE, BRAKE

1D9-F584B-10-00

Unavailable

19

HOSE, BRAKE 4

1D9-F581J-10-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

WASHER, LOCK

5GH-25844-00-00

Unavailable

24

HOSE, RESERVOIR

5ND-F5895-00-00

Unavailable

25

CLIP (5K4)

90467-14057-00

Unavailable

26

CLIP (7K7)

90467-11044-00

Unavailable

27

WIRE, BRAKE 1

5GH-26341-10-00

Unavailable

28

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

29

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

30

PIN, COTTER (648)

91490-20015-00

Unavailable

31

CABLE, CONTROL 2

5GH-2637F-11-00

Unavailable

32

PROTECTOR

5ND-F7491-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable
