Description

Price

1

CLUTCH HOUSING COMP.

5FU-16611-10-00

$307.58

2

CLUTCH CARRIER ASSY

5EH-16620-00-00

$490.17

3

SPRING, CLUTCH WEIGHT 1

5EH-16626-00-00

$11.48

4

BEARING, ONE WAY

4SH-16664-00-00

$123.47

5

WASHER, PLATE

90201-30008-00

$3.95

6

NUT

90179-22005-00

$23.08

7

PRIMARY DRIVEN GEAR COMP.

4KB-16150-00-00

$218.95

8

PLATE, THRUST 1

30X-16154-00-00

$22.86

9

BOSS, CLUTCH

55V-16371-00-00

Unavailable

10

PLATE, FRICTION

5Y1-16331-01-00

$25.90

11

PLATE, CLUTCH 2

168-16325-10-00

$13.32

12

PLATE, CLUTCH 1

3J2-16324-10-00

$10.21

13

PLATE, PRESSURE 1

5Y1-16351-00-00

$50.18

14

SPRING, COMPRESSION (4H7)

90501-23598-00

$5.68

15

SCREW, WITH WASHER (583)

90159-06010-00

$6.54

16

ROD, PUSH 1

4KB-16356-00-00

$23.09

17

O-RING (26H)

93210-06632-00

$6.68

18

WASHER, LOCK(4KB)

90215-16289-00

$6.12

19

NUT, HEXAGON (30X)

90170-16326-00

$11.00

20

ROD, PUSH 2

4KB-16357-00-00

Unavailable

21

BALL (498)

93511-32027-00

$4.70

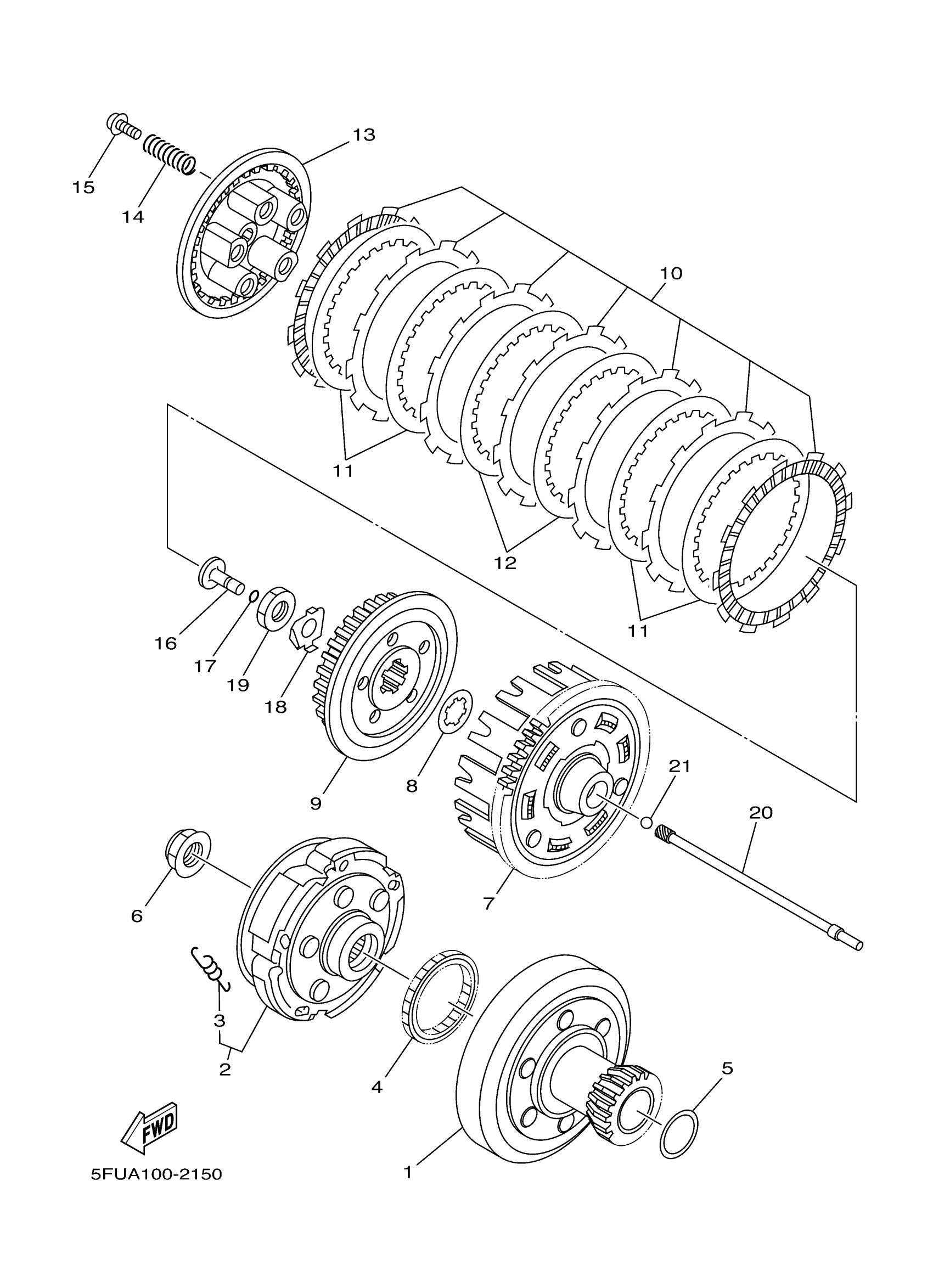

Yamaha YFM40FBYGR (BIG BEAR 400 4WD) 4S1A0 2009 CLUTCH Diagram
