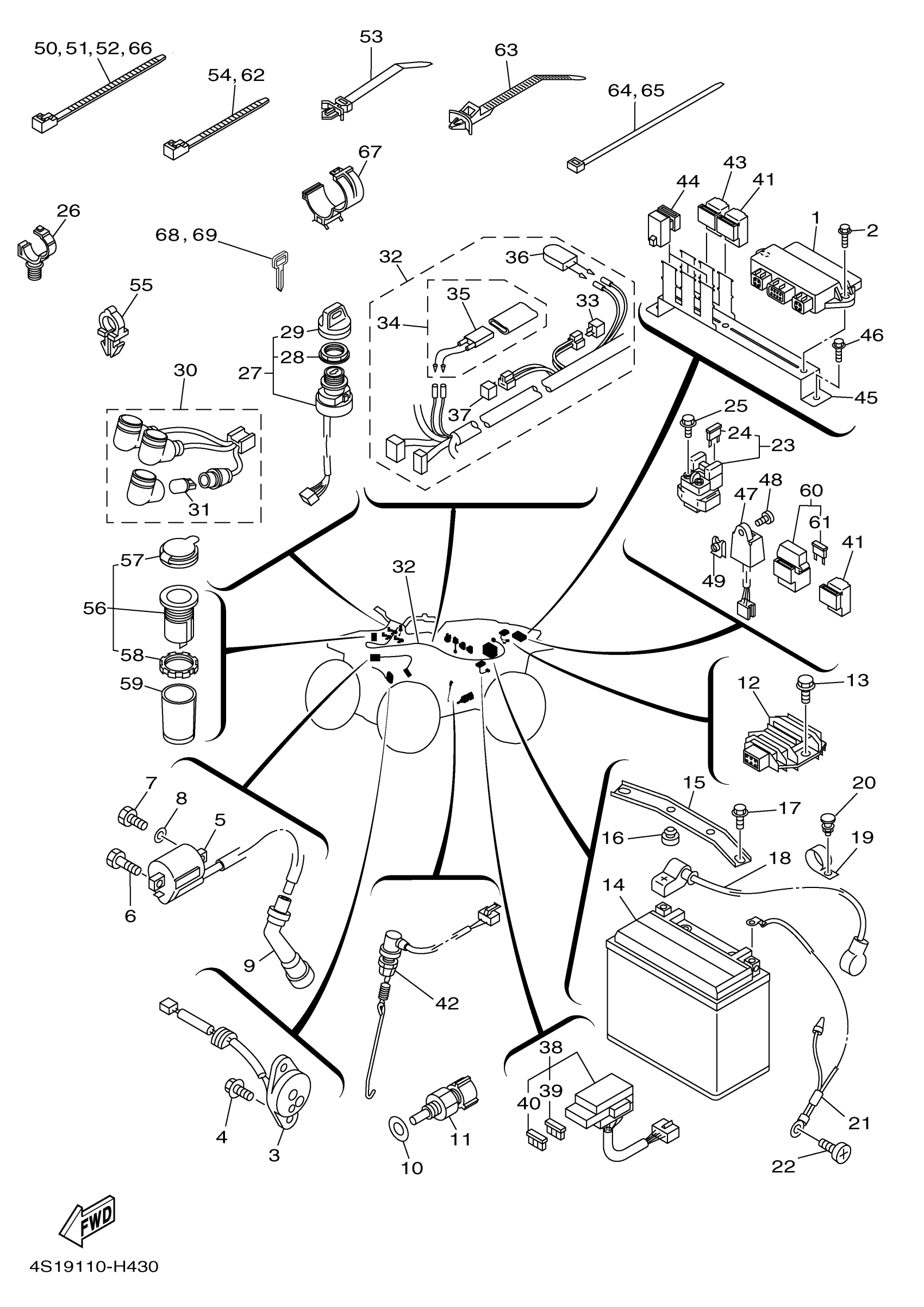

Yamaha YFM40FBYB (BIG BEAR 400 4WD) 4S1A 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4S1-85540-01-00

$461.81

2

BOLT, FLANGE

95817-06020-00

$2.69

3

NEUTRAL SWITCH ASSY

4KB-82540-01-00

$112.26

4

BOLT, WITH WASHER

90119-06137-00

$6.25

5

IGNITION COIL ASSY

5FU-82310-03-00

Unavailable

6

BOLT

90109-06865-00

$0.74

7

BOLT, HEXAGON

97017-06020-00

$2.55

8

WASHER, PLAIN (646)

92990-06600-00

$2.48

9

PLUG CAP ASSY

4VW-82370-00-00

$60.93

10

WASHER, PLATE 3412175700

90201-12172-00

$2.91

11

THERMO UNIT

4GB-83591-10-00

$155.22

12

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$224.13

13

BOLT, FLANGE

90105-06833-00

$1.77

14

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

15

BRACKET, BATTERY

5FU-H2128-01-00

Unavailable

16

DAMPER, LOCATING 1

22W-24181-00-00

$5.75

17

BOLT, FLANGE

90105-06831-00

$1.20

18

WIRE, PLUS LEAD

5FU-H2115-00-00

Unavailable

19

CLAMP

90464-12801-00

Unavailable

20

PLUG

90338-05829-00

Unavailable

21

WIRE, MINUS LEAD

5FU-H2116-00-00

Unavailable

22

SCREW, TAPPING

97702-60416-00

$3.00

23

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

$107.44

24

FUSE (12V 30A)

1AE-82151-00-00

$6.22

25

BOLT, FLANGE

95022-06008-00

$6.26

26

CLAMP

90464-12830-00

$1.02

27

MAIN SWITCH ASSY

5KM-82510-02-00

Unavailable

28

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

29

CAP, KEY

3HN-82579-00-00

$12.27

30

PILOT LIGHT ASSY

4S1-83530-00-00

$48.32

31

BULB (12V-1.7W)

3FV-83517-00-00

$6.30

32

WIRE HARNESS ASSY

4S1-82590-40-00

$586.66

33

DIODE ASSY

3WP-81980-00-00

$18.85

34

CIRCUIT BREAKER ASSY

3D5-82180-00-00

$20.40

35

THERMO SWITCH ASSY

3D5-82560-00-00

$33.35

36

THERMO SWITCH ASSY

5FU-82560-10-00

$74.02

37

DIODE ASSY

4WA-81980-00-00

$25.93

38

FUSE BOX ASSY

4S1-82170-10-00

$63.69

39

FUSE (10A)

42X-82151-00-00

$2.16

40

FUSE (12V 15A)

36Y-82151-00-00

$4.08

41

RELAY ASSY (29U-93)

29U-81950-93-00

$67.77

42

STOP SWITCH ASSY

5FU-82530-01-00

Unavailable

43

RELAY ASSY (1UY-92)

1UY-81950-92-00

$67.35

44

RELAY ASSY

5DM-81950-01-00

$24.72

45

BRACKET 2

4S1-F141E-00-00

Unavailable

46

BOLT, FLANGE

90105-06831-00

$1.20

47

MOTOR CONTROL UNIT ASSY

4SH-86510-10-00

Unavailable

48

SCREW, BIND (705)

98980-06016-00

$6.82

49

NUT, SPRING(4ES)

90183-06069-00

$5.93

50

CLAMP(JN6)

90464-40825-00

$1.77

51

CLAMP(JN6)

90464-40825-00

$1.77

52

CLAMP(JN6)

90464-40825-00

$1.77

53

CLAMP

90464-12830-00

$1.02

54

CLAMP(JN6)

90464-31827-00

$2.63

55

CLAMP

90464-12830-00

$1.02

56

TERMINAL ASSY

5FU-H1920-10-00

$42.51

57

COVER

5FU-H1942-10-00

Unavailable

58

NUT

5FU-H191B-10-00

$1.28

59

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

60

FUSE HOLDER ASSY

4S1-82150-00-00

$23.89

61

FUSE (10A)

42X-82151-00-00

$2.16

62

CLAMP(JN6)

90464-31827-00

$2.63

63

CLAMP

90464-25800-00

Unavailable

64

CLAMP

90464-48800-00

$3.54

65

CLAMP

90464-48800-00

$3.54

66

CLAMP(JN6)

90464-40825-00

$1.77

67

CLAMP

90464-25843-00

Unavailable

68

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

69

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92
