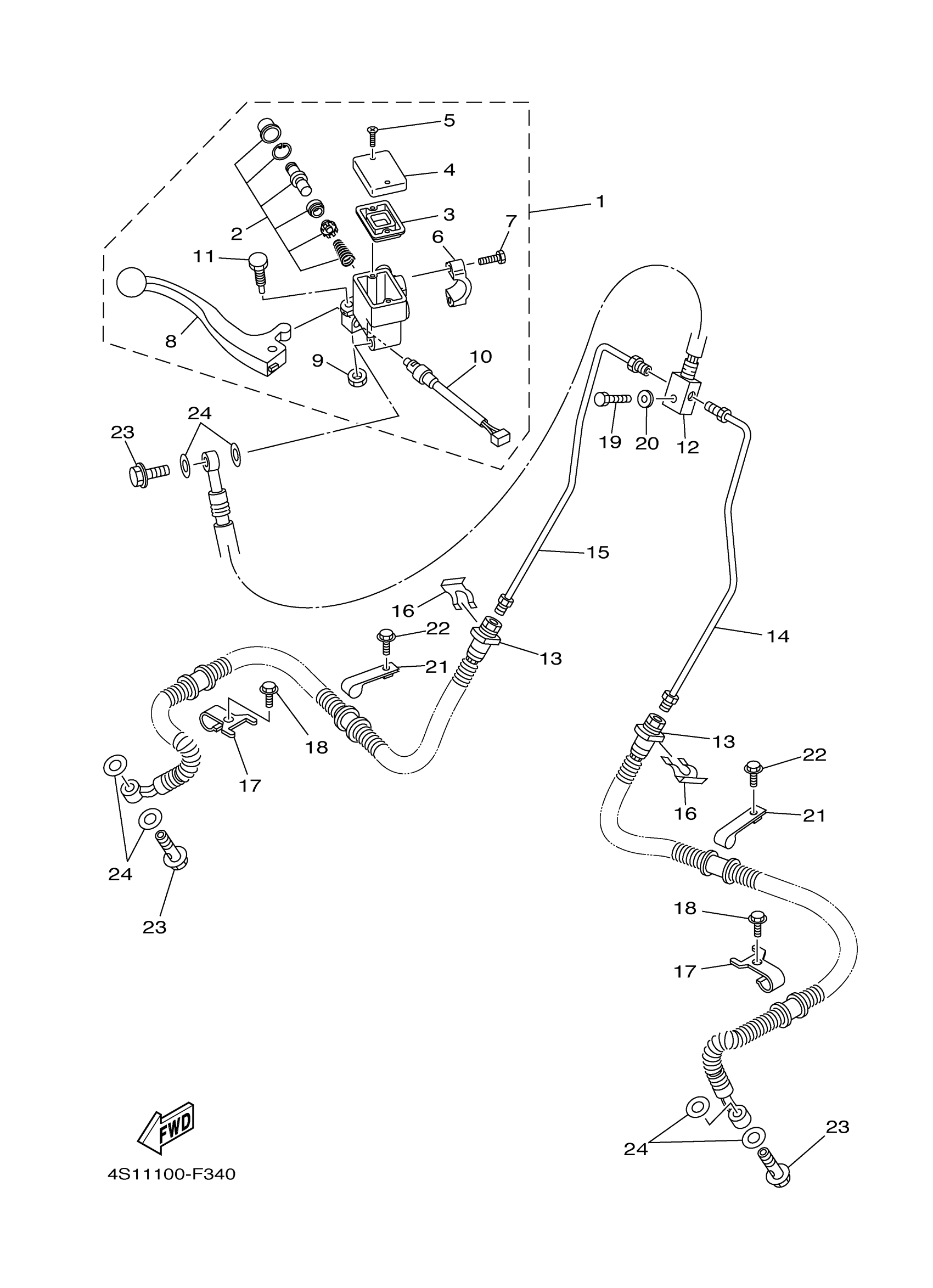

Yamaha YFM40FBW (BIG BEAR 400 4WD IRS) 4S11 2007 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5KM-2583T-01-00

$251.93

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$45.51

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

5JX-25852-01-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

5GH-25867-00-00

Unavailable

7

BOLT

5EB-26332-00-00

$5.73

8

LEVER 2

5KM-83922-00-00

$30.77

9

NUT, SELF-LOCKING

95617-06100-00

$2.17

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$52.60

11

BOLT, LEVER

1FK-2589F-00-00

$4.44

12

HOSE,BRAKE 1

5FU-F5872-10-00

Unavailable

13

HOSE,BRAKE 2

4S1-F5873-10-00

Unavailable

14

PIPE, BRAKE

5FU-F5871-00-00

$8.86

15

PIPE, BRAKE 2

5FU-F5882-00-00

$8.86

16

CIRCLIP

2GU-25866-00-00

Unavailable

17

HOLDER, BRAKE HOSE

5ND-F5875-01-00

$3.41

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

BOLT, HEXAGON

97017-08030-00

Unavailable

20

WASHER(6TA)

92907-08600-00

Unavailable

21

BAND

5ND-F3192-01-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

WASHER, PLATE(481)

90201-10118-00

Unavailable
