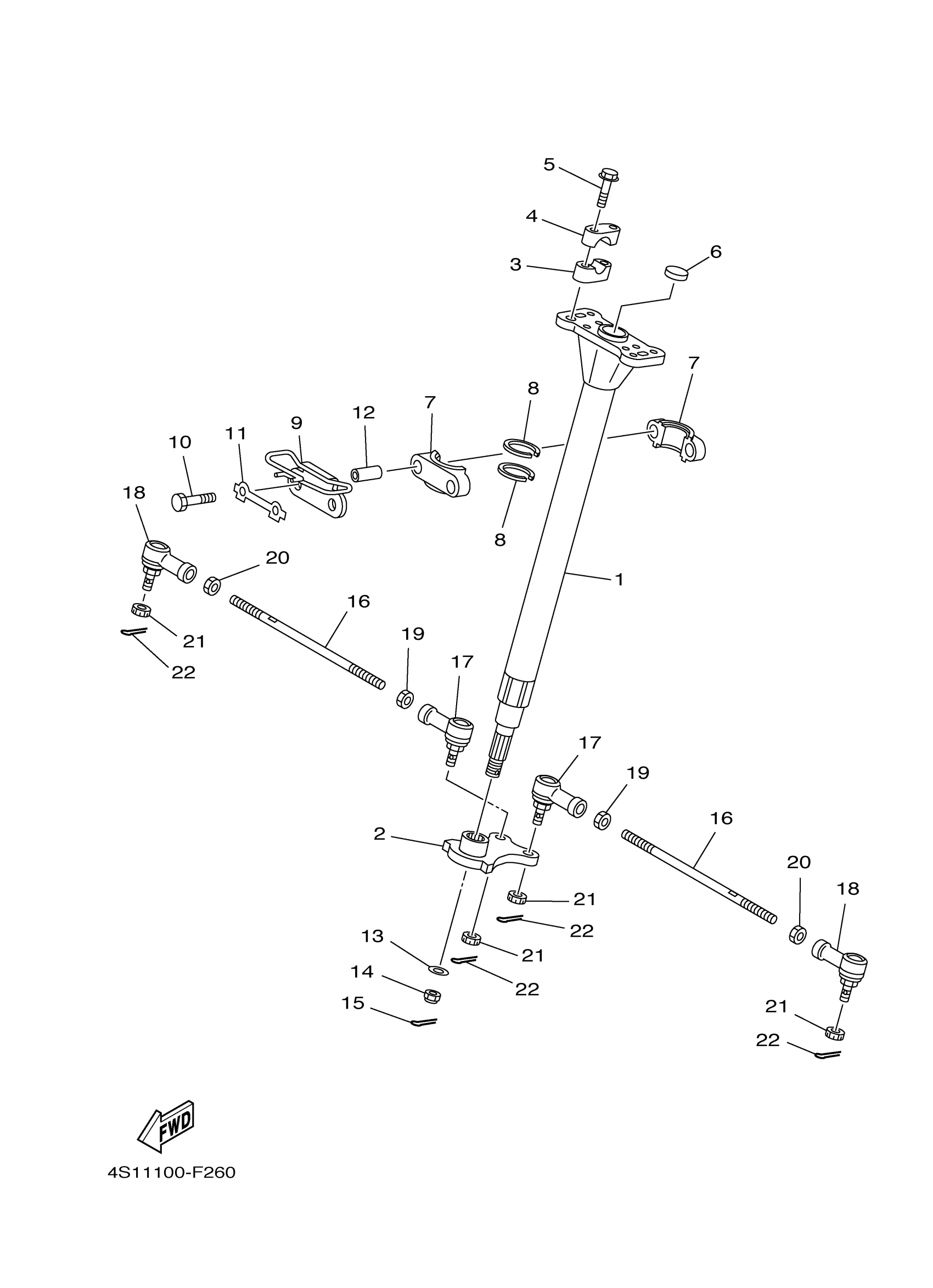

Yamaha YFM40FBHW (BIG BEAR 400 4WD HUNTER-IRS) 4S14 2007 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5FU-F3813-20-00

Unavailable

2

ARM,PITMAN

5ND-F3816-12-00

$26.99

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

5

BOLT, FLANGE

9502P-08050-00

Unavailable

6

PLUG, TAPER(2HR)

90336-28053-00

$8.74

7

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

8

OIL SEAL(1UY)

93112-31011-00

$7.52

9

BRACKET, STEERING LOWER

4XE-F3868-20-00

Unavailable

10

BOLT, HEXAGON

97017-08060-00

$7.72

11

WASHER, LOCK 1

1UY-23894-01-00

$6.86

12

COLLAR(85G)

90387-106T4-00

$11.29

13

WASHER, PLATE

90201-14226-00

Unavailable

14

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

15

PIN, COTTER

91490-20025-00

$1.31

16

ROD, TIE

4S1-23831-00-00

$71.36

17

JOINT, UNIVERSAL 1

37S-23841-00-00

$78.58

18

JOINT, UNIVERSAL 2

4S2-23845-00-00

$76.97

19

NUT 1

1P0-F3833-00-00

$0.92

20

NUT 2

37S-23834-00-00

$5.31

21

NUT, CASTLE

90171-12001-00

$2.85

22

PIN, COTTER

91490-25020-00

$2.94
