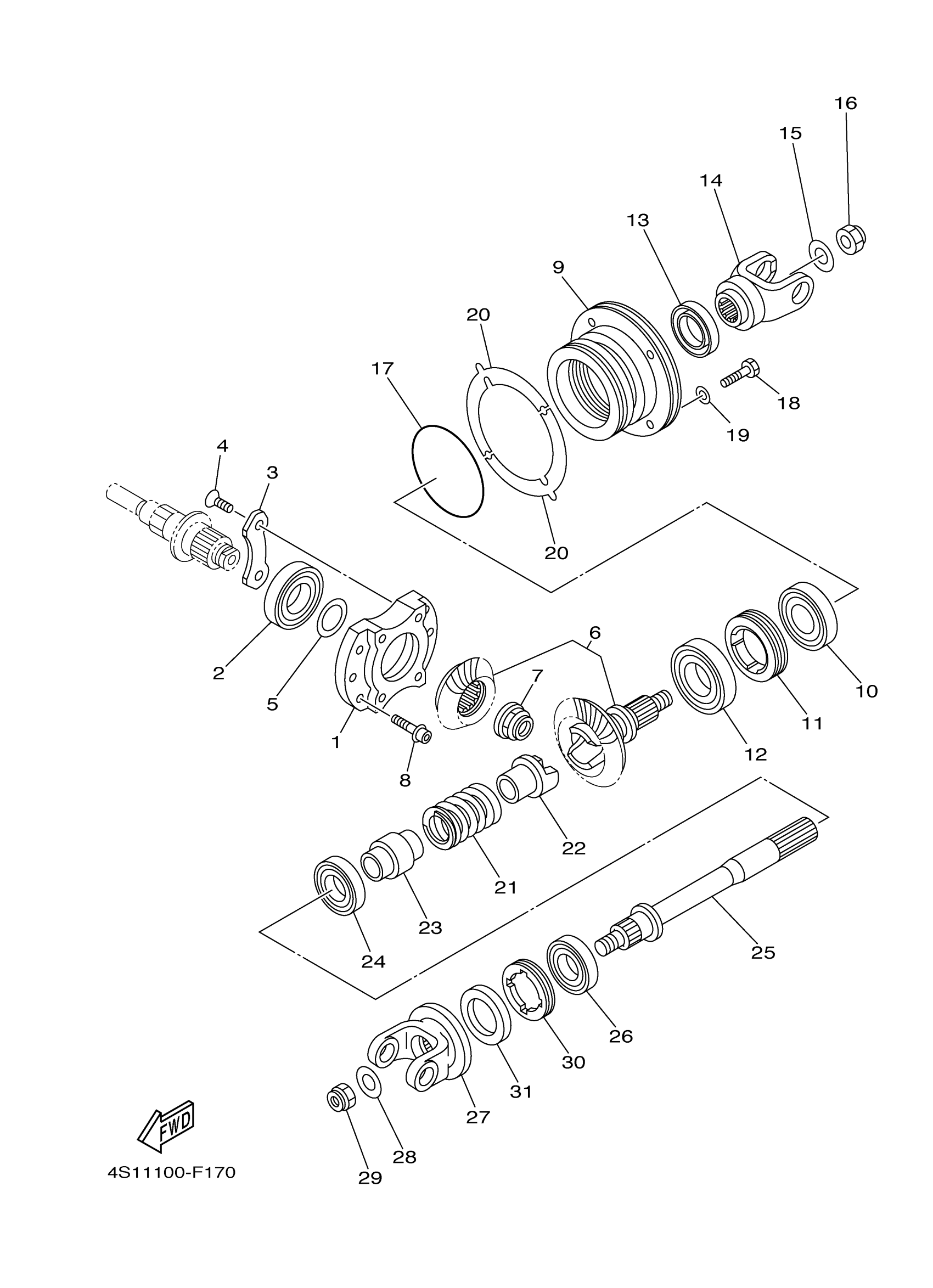

Yamaha YFM40FBHW (BIG BEAR 400 4WD HUNTER-IRS) 4S14 2007 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

4KB-17521-00-00

Unavailable

2

BEARING(1YW)

93306-20636-00

$41.88

3

PLATE, BEARING COVER

11H-15383-02-00

$11.03

4

SCREW

90149-08013-00

$6.25

5

SHIM, PINION

52G-17531-01-00

$2.45

5

SHIM, PINION

52G-17531-11-00

$2.45

5

SHIM, PINION

52G-17531-21-00

$6.43

5

SHIM, PINION

52G-17531-31-00

$6.43

5

SHIM, PINION

52G-17531-41-00

$6.43

5

SHIM, PINION

52G-17531-51-00

$6.43

6

PINION SET

4KB-17530-00-00

Unavailable

7

NUT

90179-22015-00

$24.97

8

BOLT(47X)

90109-082A1-00

Unavailable

9

HOUSING, BEARING

4KB-17551-00-00

$203.75

10

BEARING (3Y1)

93306-30525-00

$52.72

11

NUT(59V)

90179-65305-00

$37.15

12

BEARING (8U9)

93306-20712-00

$69.76

13

OIL SEAL

93102-35012-00

$19.40

14

YOKE, JOINT

1D9-17556-00-00

$102.95

15

WASHER, PLATE (1J7)

90201-14633-00

$5.25

16

NUT, SELF-LOCKING

90185-14009-00

$8.31

17

O-RING (14X)

93210-78544-00

$10.65

18

BOLT, HEXAGON

97017-08030-00

$6.85

19

WASHER(6TA)

92907-08600-00

$2.52

20

SHIM, PINION

4KB-17531-00-00

$12.27

20

SHIM, PINION

4KB-17531-10-00

$13.06

20

SHIM, PINION

4KB-17531-20-00

$13.75

20

SHIM, PINION

4KB-17531-30-00

Unavailable

20

SHIM, PINION

4KB-17531-40-00

$8.06

20

SHIM, PINION

4KB-17531-50-00

$8.15

20

SHIM, PINION

4KB-17531-60-00

$13.71

21

SPRING, COMPRESSION(2HR)

90501-605E1-00

$16.78

22

CAM, DRIVEN

22U-17527-01-00

$38.46

23

COUPLING, GEAR

4KB-46123-00-00

$41.51

24

BEARING(2HR)

93306-00612-00

$42.56

25

SHAFT, 1

4KB-1761A-00-00

$156.65

26

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$35.25

27

YOKE,JOINT 2

5KM-17576-00-00

$198.71

28

WASHER, PLATE (1J7)

90201-14633-00

$5.25

29

NUT, SELF-LOCKING (1J7)

90185-14070-00

$10.45

30

NUT(4KB)

90179-55660-00

$49.43

31

OIL SEAL(2NL)

93102-44454-00

$17.77
